System Relay: Locations

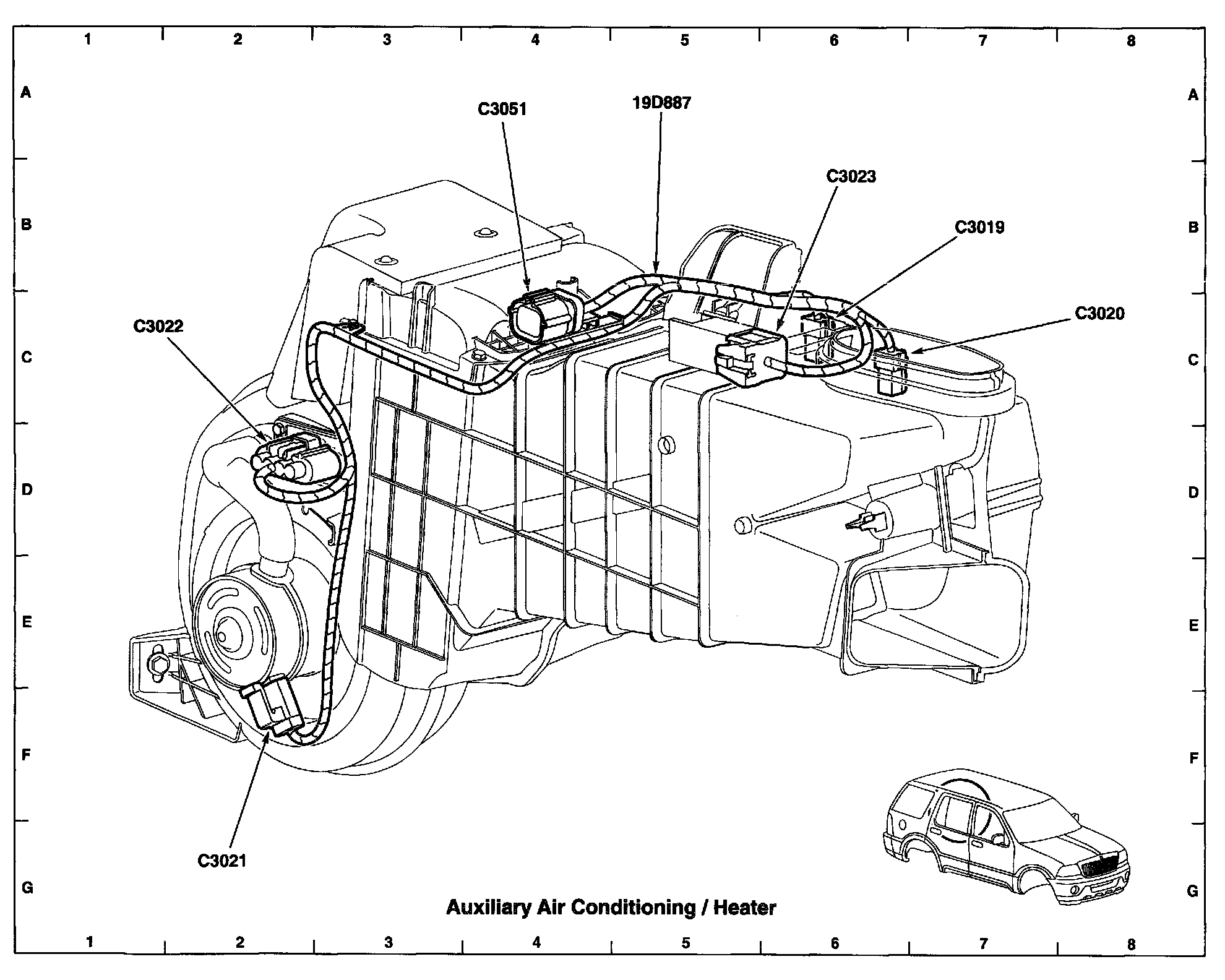

View 151-41 (Auxiliary Air Conditioning/Heater):

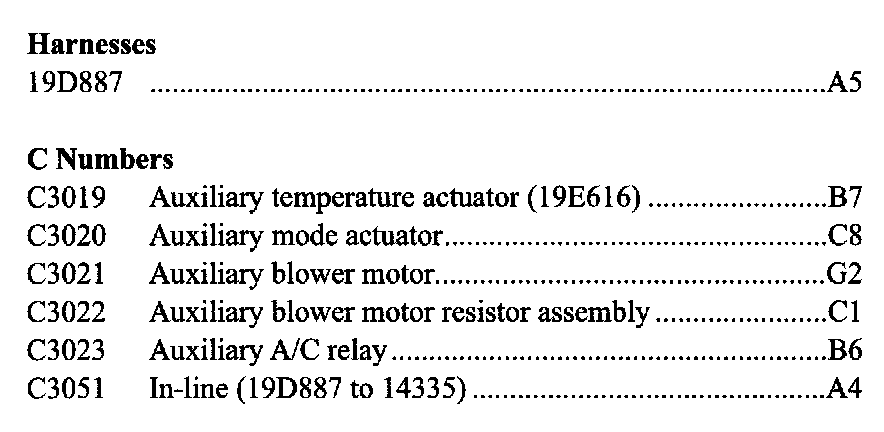

View 151-41 (Auxiliary Air Conditioning/Heater - Legend):
