Operation CHARM
: Car repair manuals for everyone.
Home
>>
Lincoln
>>
2005
>>
Aviator AWD V8-4.6L DOHC VIN H
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Brake Signal
>>
Locations
Brake Signal: Locations

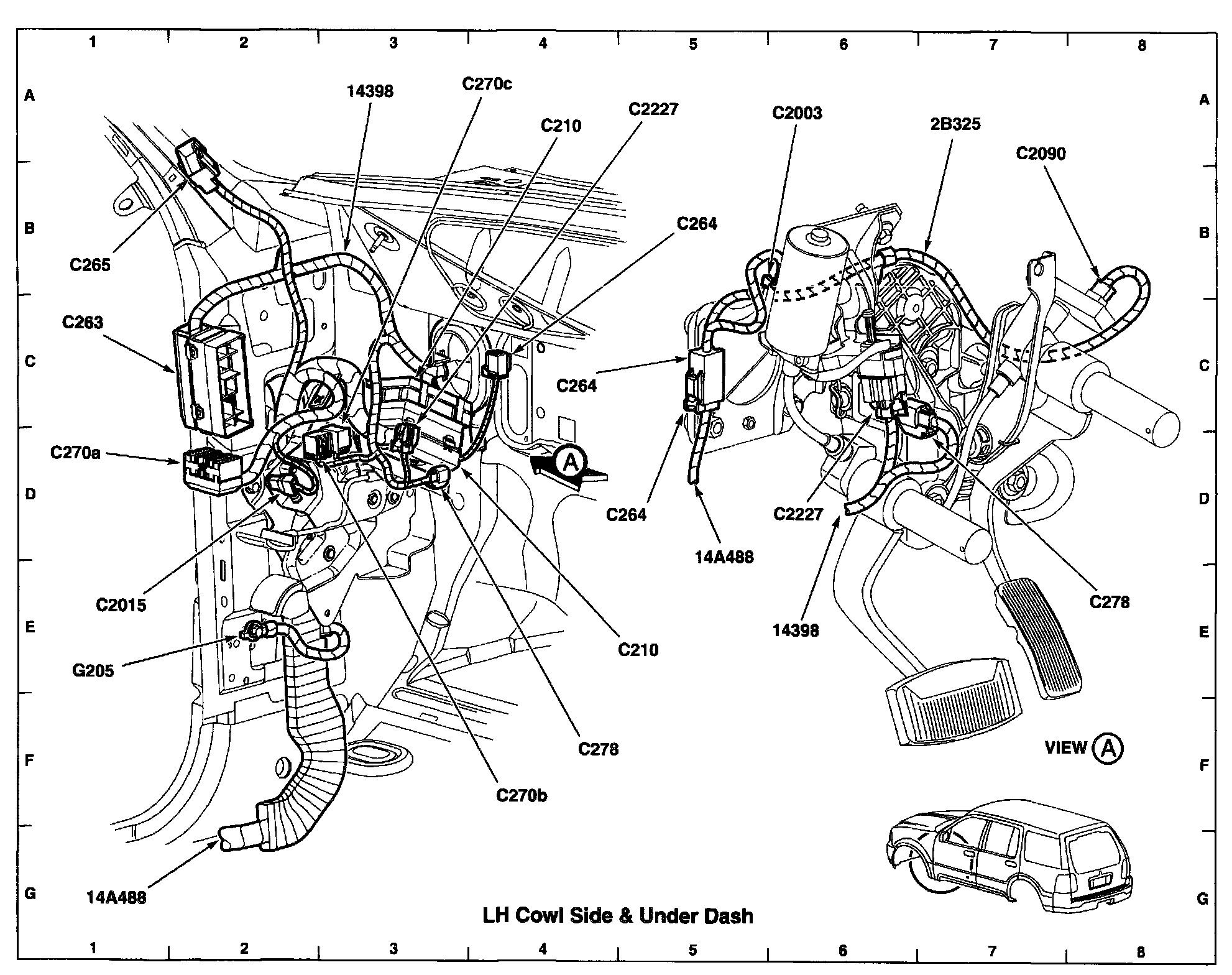

View 151-15 (LH Cowl Side & Under Dash):

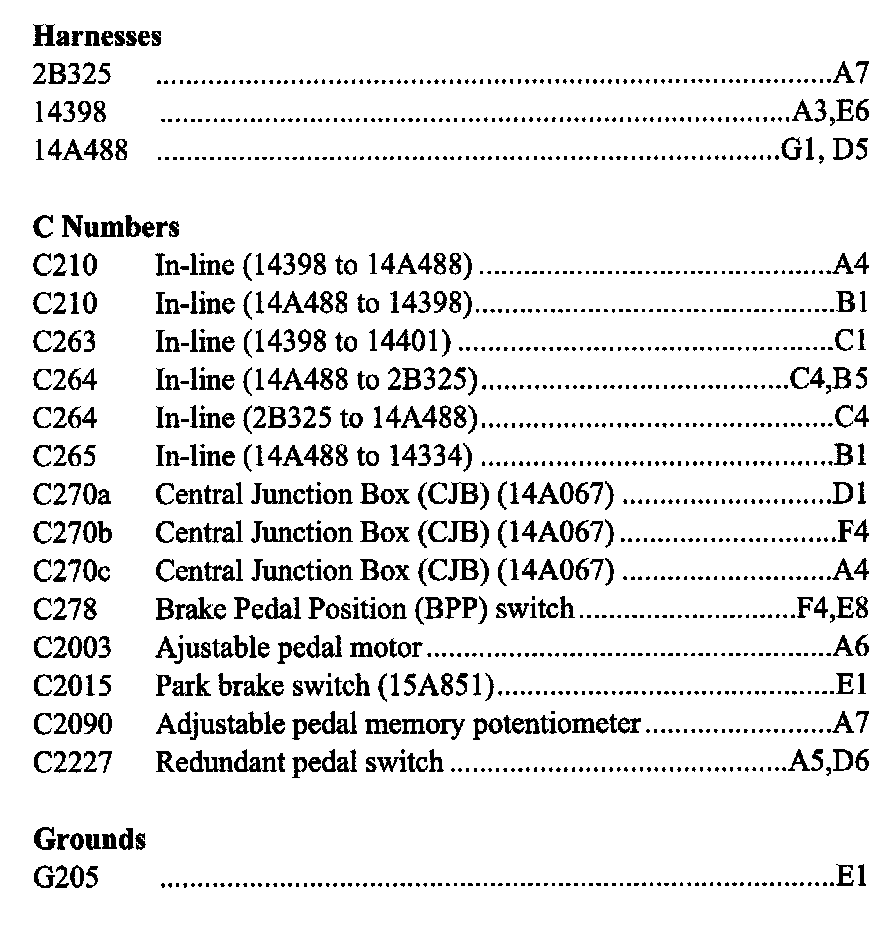

View 151-15 (LH Cowl Side & Under Dash - Legend):
