Camshaft Position Sensor: Service and Repair

CAMSHAFT POSITION (CMP) SENSOR

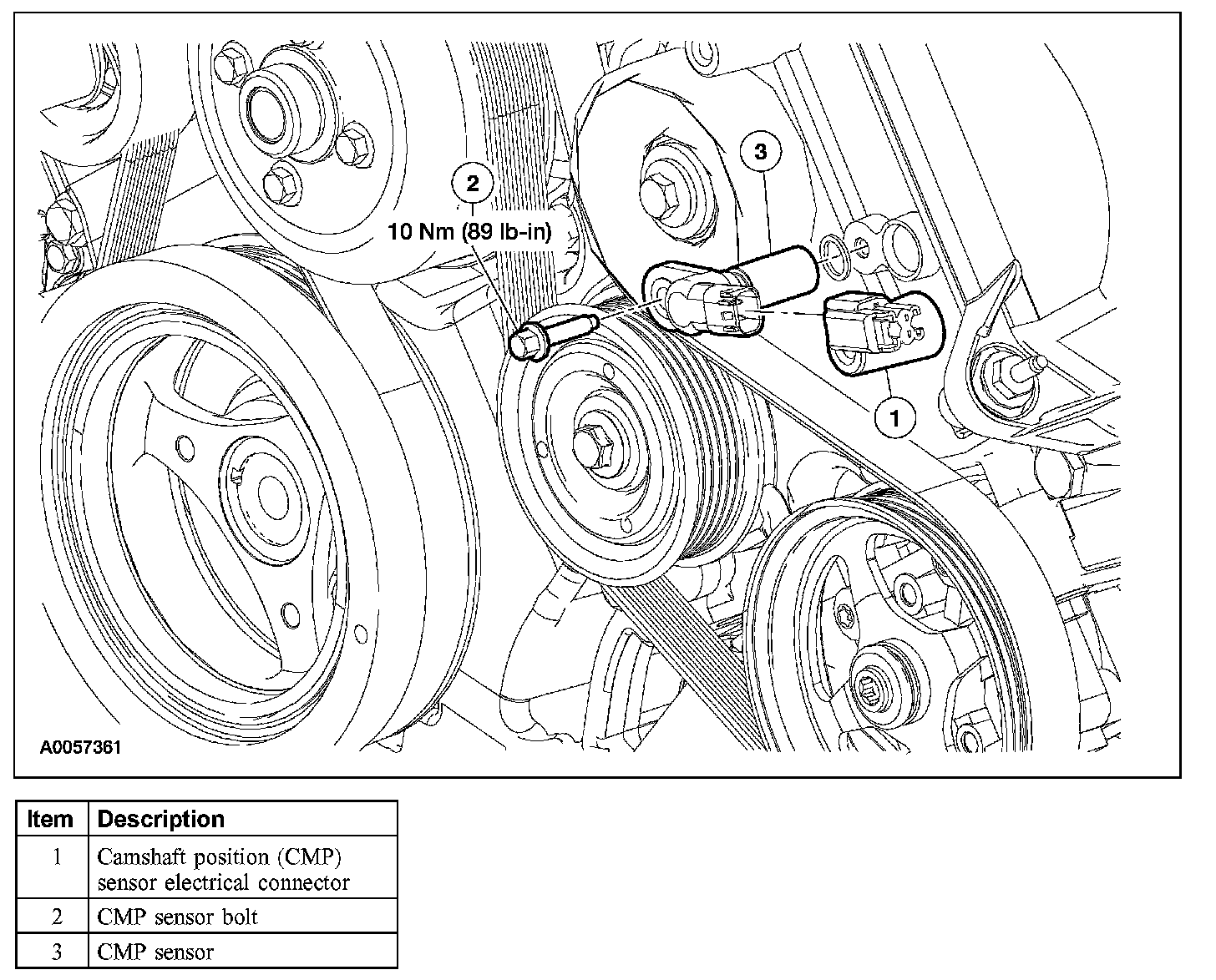

Removal and Installation
1. Disconnect the battery ground cable.
2. Remove the power steering reservoir and bracket.
3. Disconnect the camshaft position (CMP) sensor electrical connector.
4. Remove the CMP sensor bolt.
- To install, tighten to 10 Nm (89 lb-in).

5. Remove the CMP sensor.
6. To install, reverse the removal procedure.
