Crankshaft Position Sensor: Service and Repair

CRANKSHAFT POSITION (CKP) SENSOR

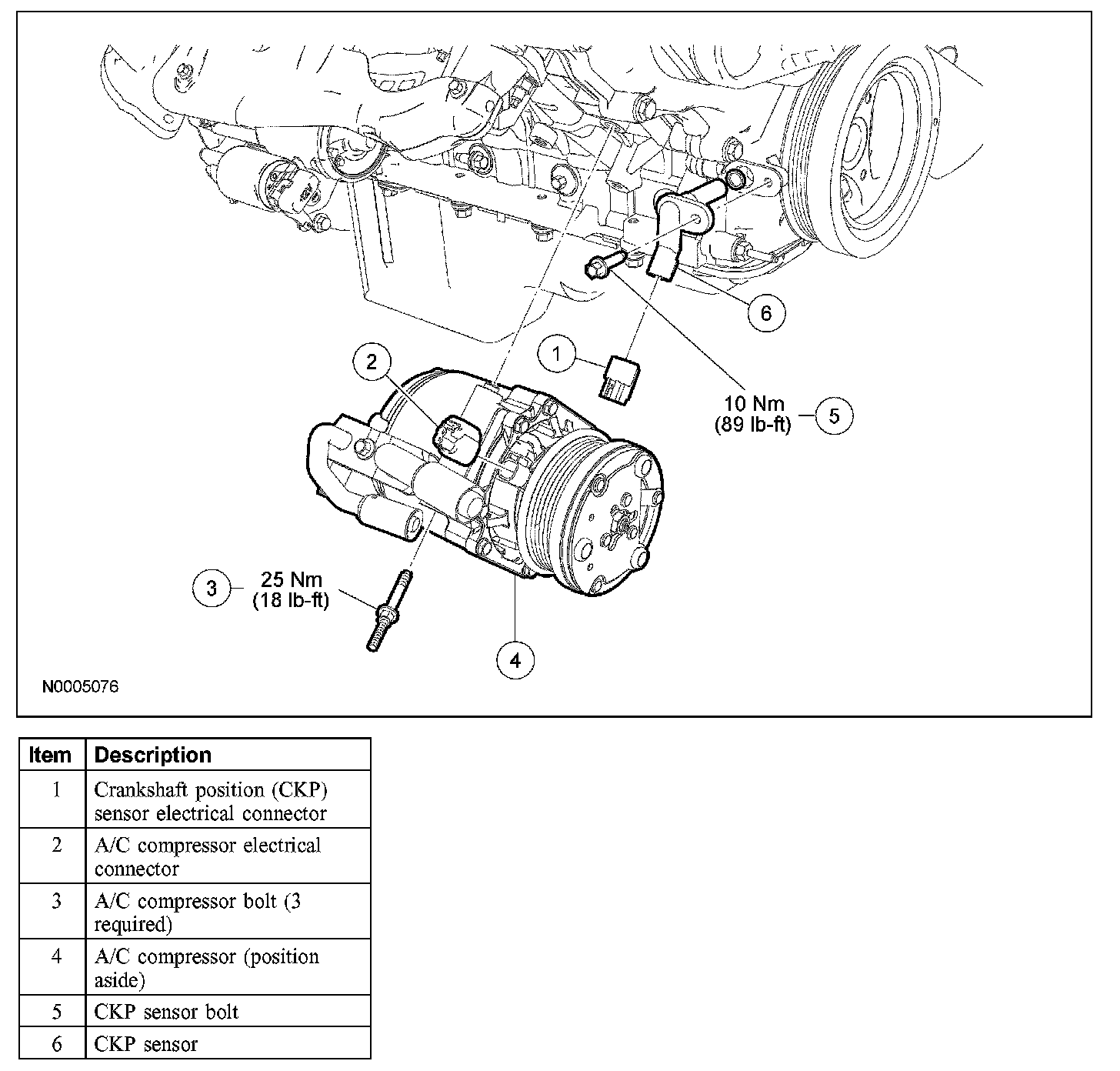

Removal and Installation
1. Disconnect the battery ground cable.
2. Remove the accessory drive belt.
3. Disconnect the crankshaft position (CKP) sensor electrical connector.
4. Disconnect the A/C compressor electrical connector.
5. Loosen the 3 A/C compressor bolts enough to allow the compressor to move approximately 1 inch.
- To install, tighten to 25 Nm (18 lb-ft).

6. Remove the CKP sensor bolt.
- To install, tighten to 10 Nm (89 lb-in).

7. Remove the CKP sensor.
8. To install, reverse the removal procedure.
