Data Link Connector: Locations

View 151-11 (Instrument Panel):

View 151-11 (Instrument Panel - Legend):

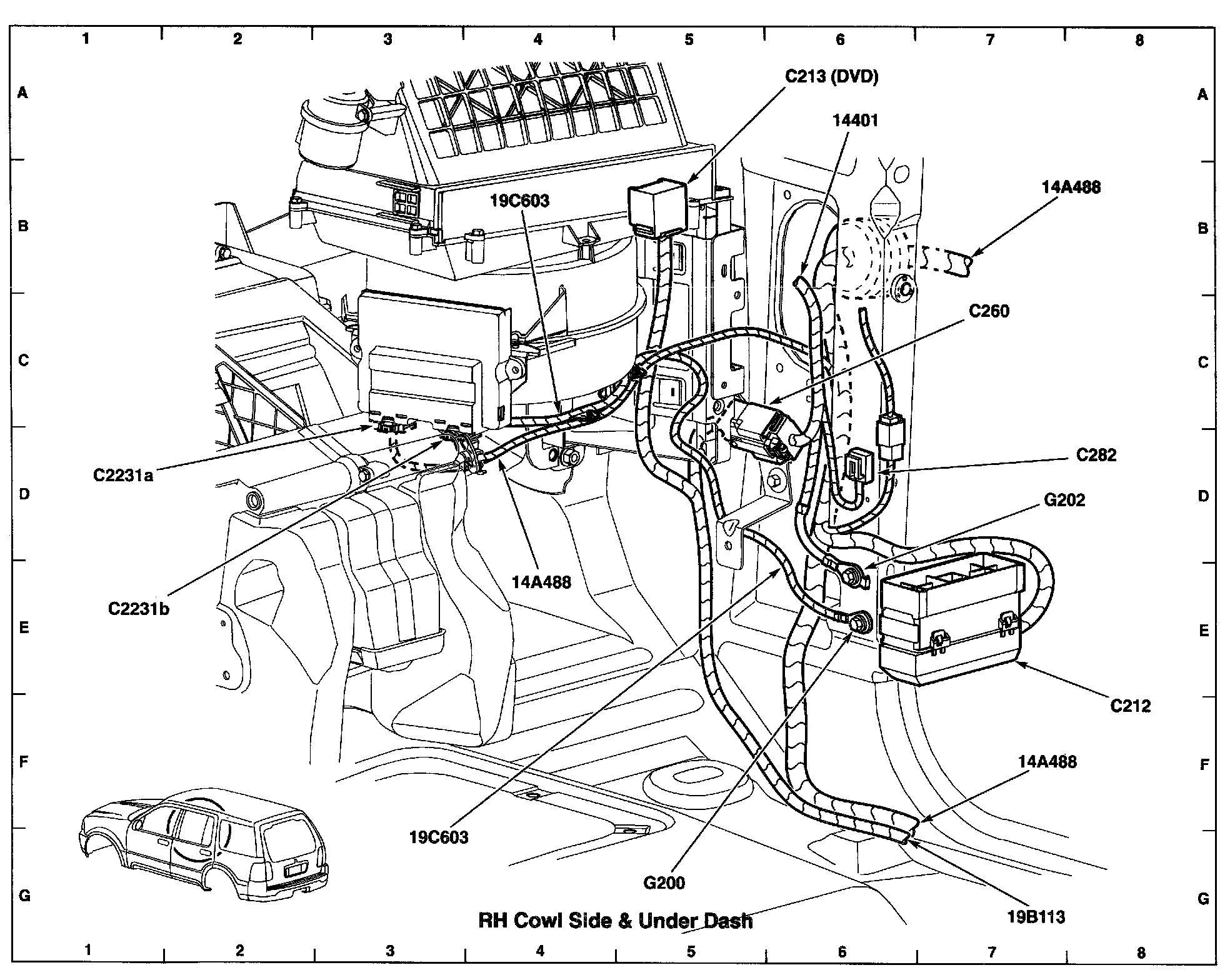

View 151-17 (RH Cowl Side & Under Dash):

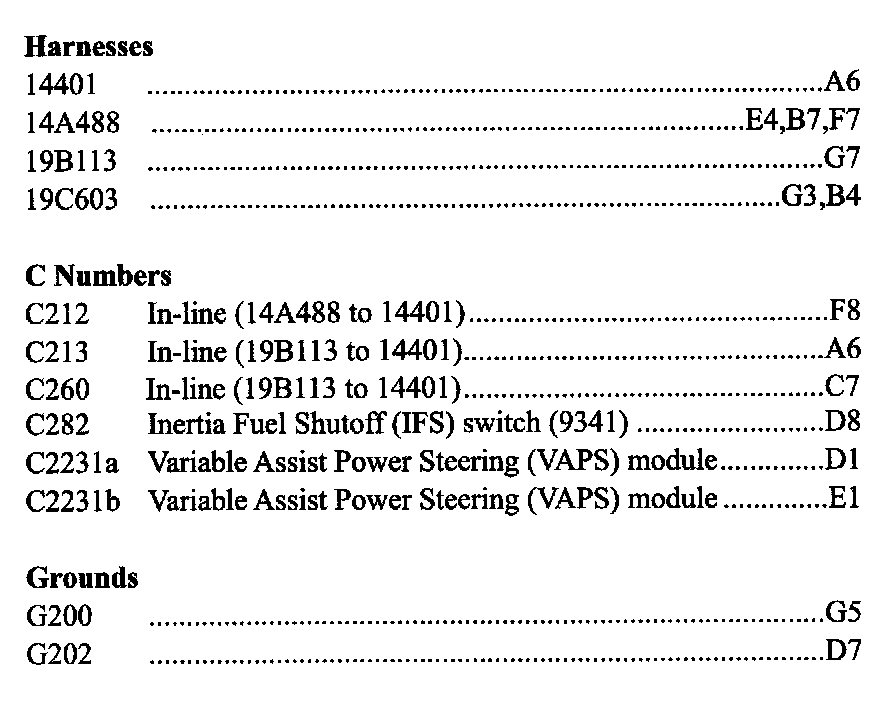

View 151-17 (RH Cowl Side & Under Dash - Legend):
