Operation CHARM
: Car repair manuals for everyone.
Home
>>
Lincoln
>>
2005
>>
Aviator AWD V8-4.6L DOHC VIN H
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Engine Temperature Sensor
>>
Locations
Engine Temperature Sensor: Locations

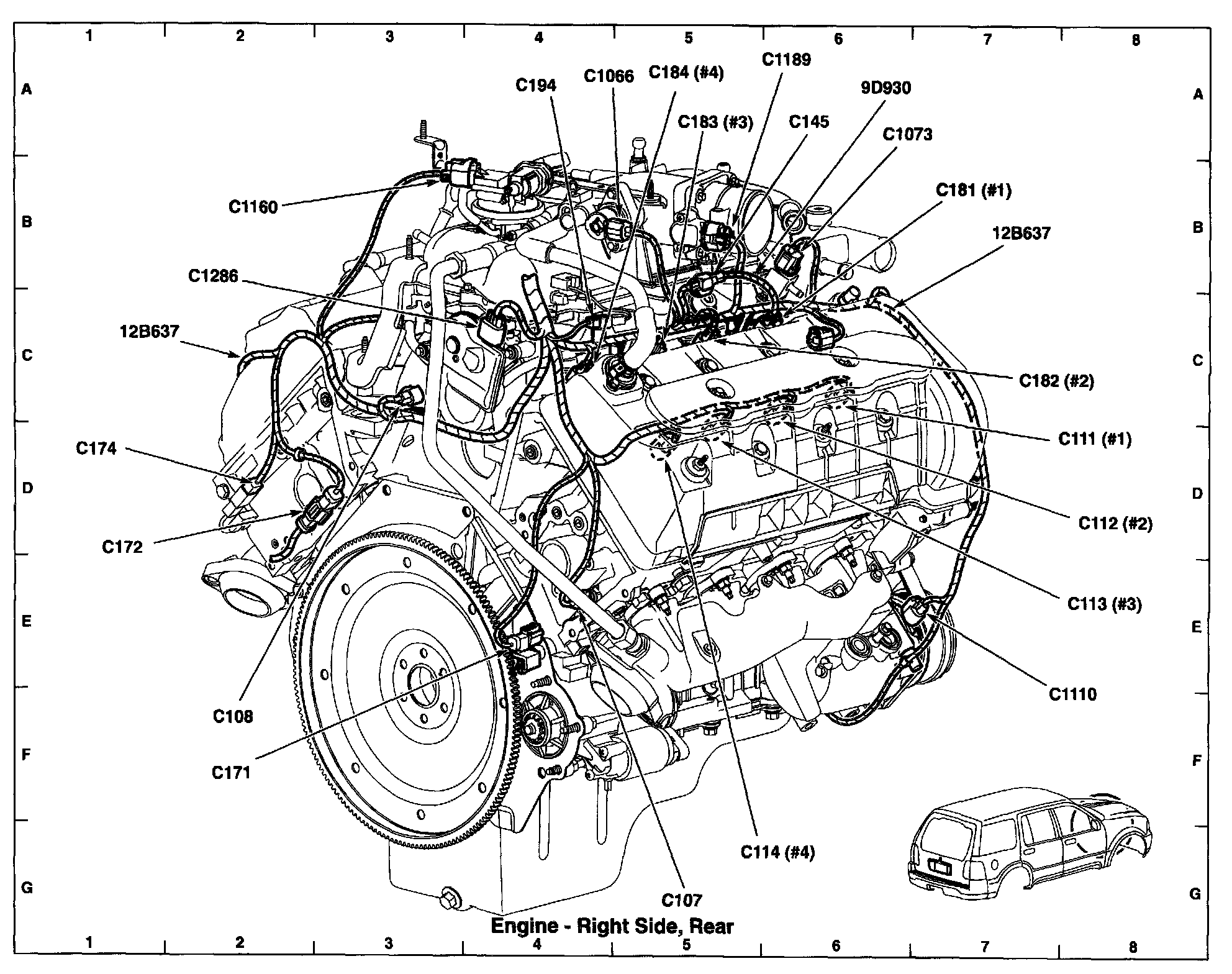

View 151-7 (Engine-Right Side, Rear):

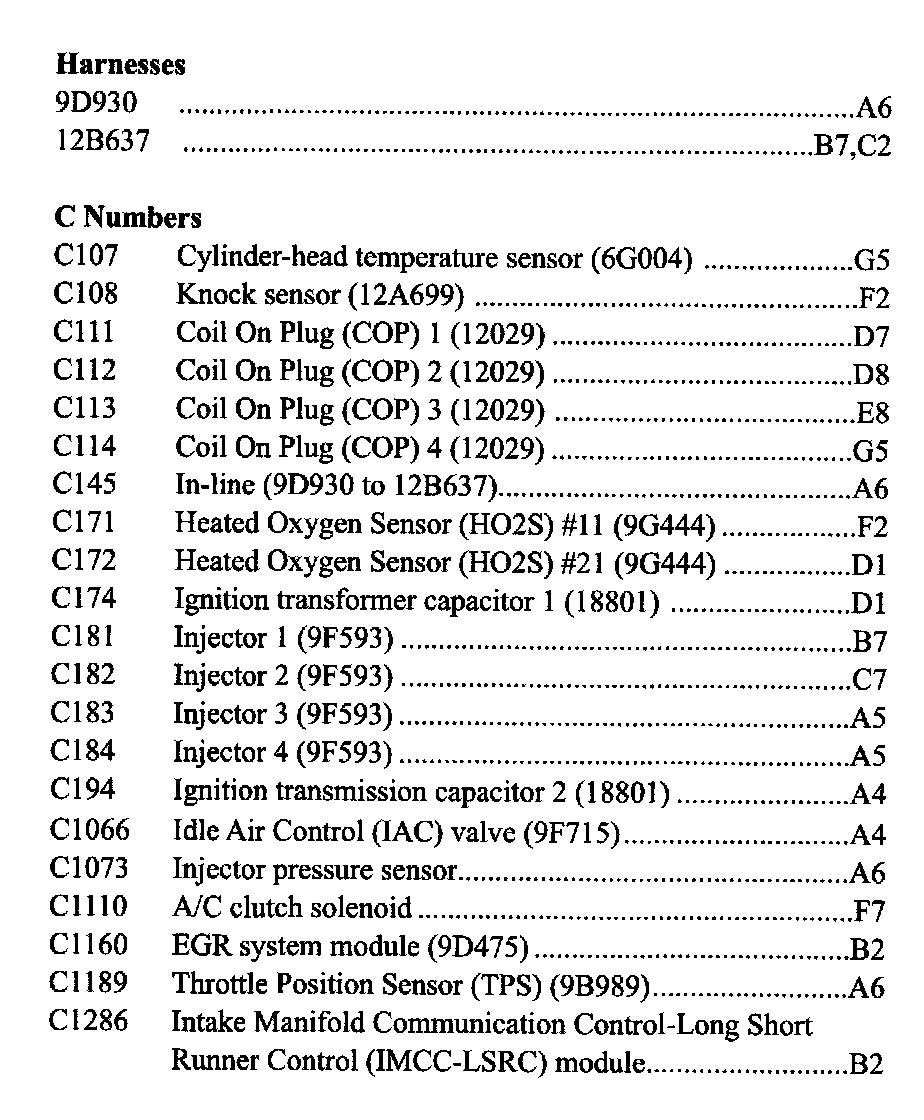

View 151-7 (Engine-Right Side, Rear - Legend):
