Engine Temperature Sensor: Service and Repair

CYLINDER HEAD TEMPERATURE (CHT) SENSOR







Removal and Installation
1. With the vehicle in NEUTRAL, position it on a hoist.
2. Remove the RF fender splash shield.
3. Remove the front Y-pipe.

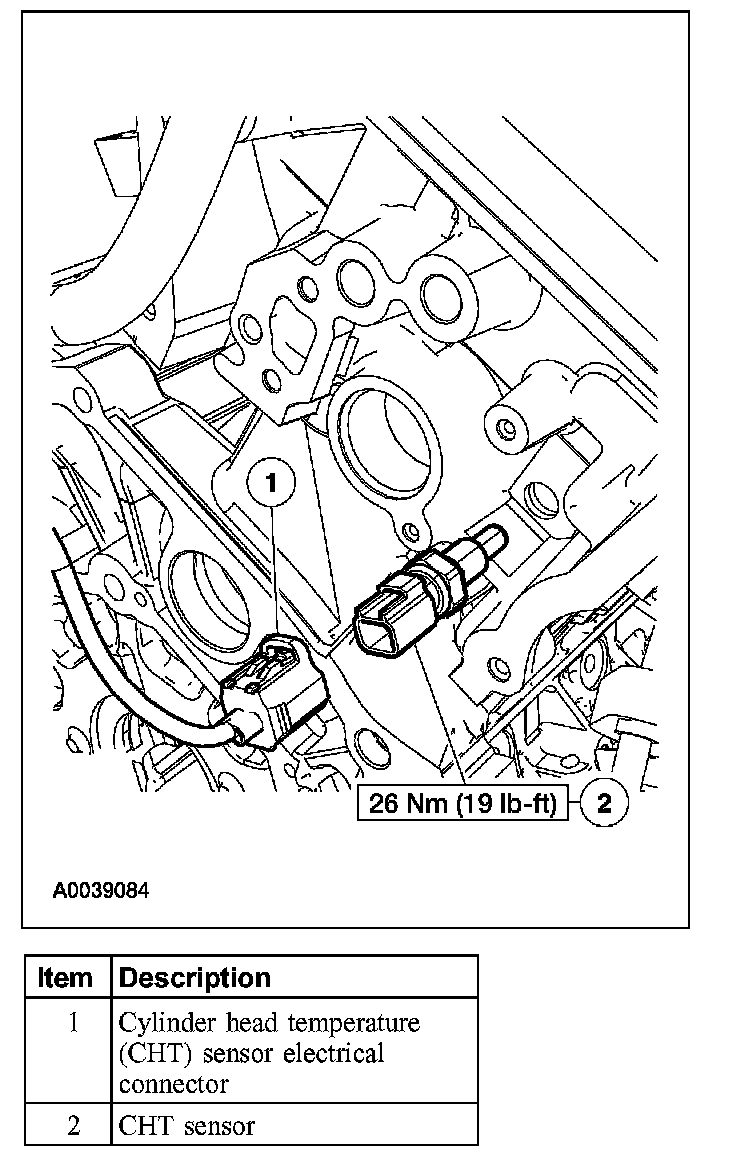

4. Disconnect the cylinder head temperature (CHT) sensor electrical connector.
5. Remove the CHT sensor.
- To install, tighten to 26 Nm (19 lb-ft).

6. To install, reverse the removal procedure.
