Pressure Feedback Exhaust Sensor: Service and Repair

EXHAUST GAS RECIRCULATION (EGR) SYSTEM MODULE

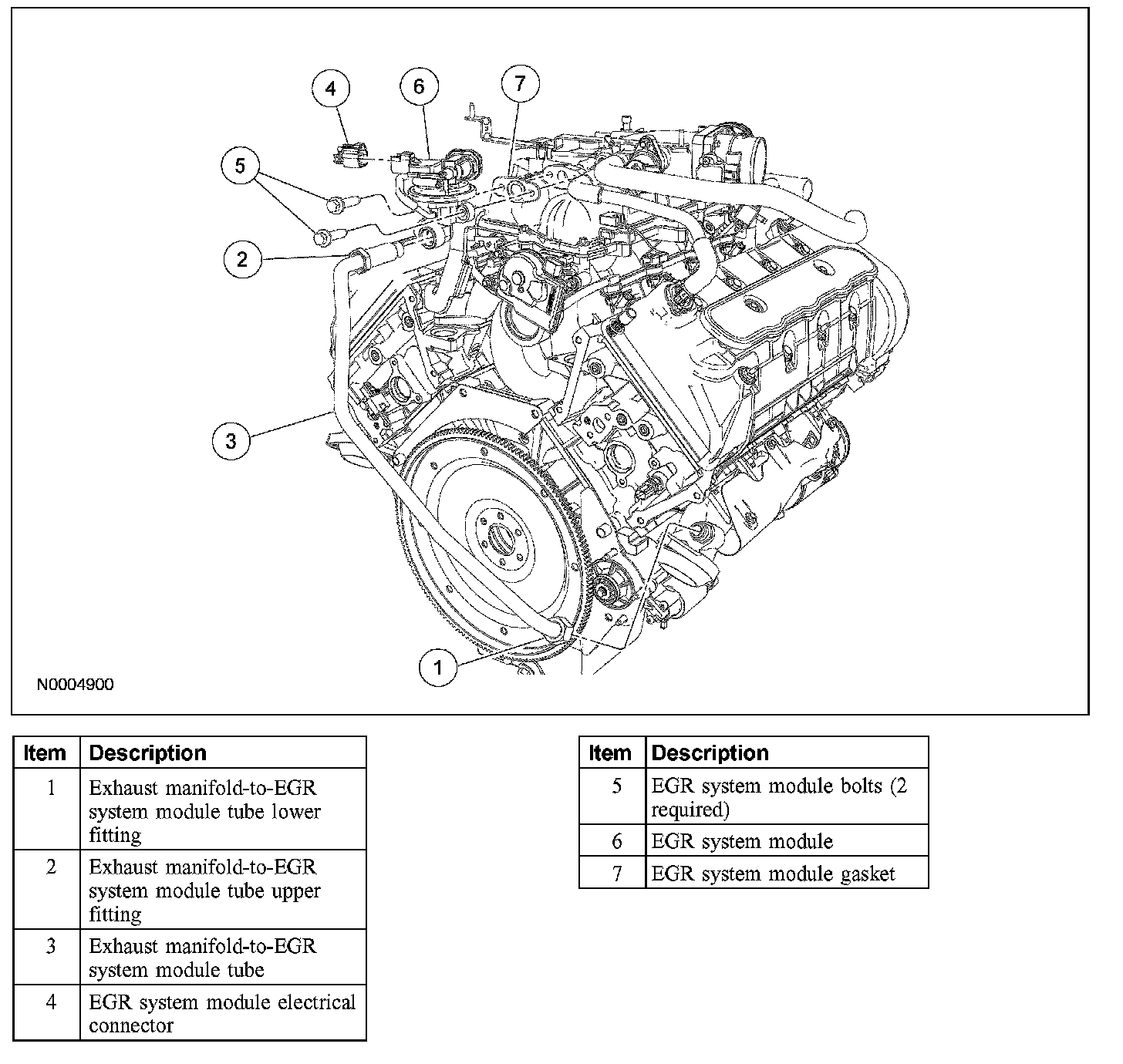

Exploded View

Removal and Installation

1. NOTE: Access to the exhaust gas recirculation (EGR) tube is through the right front wheel well.

Disconnect the exhaust manifold-to-exhaust gas recirculation (EGR) valve system module tube upper fitting.
- To install, tighten to 40 Nm (30 lb-ft).

2. Disconnect the EGR system module electrical connector.
3. Remove the 2 EGR system module bolts.
- When installing, tighten the bolts to 10 Nm (89 lb-in).

4. NOTE: The EGR system module sealing surfaces are soft metals.

Remove the EGR system module.
- Carefully clean and inspect the EGR sealing surfaces.
- Discard the EGR system module gasket.







5. To install, reverse the removal procedure.
- Install a new EGR system module gasket with the side with the raised circle facing the intake manifold.
