Throttle Position Sensor: Service and Repair

THROTTLE POSITION (TP) SENSOR

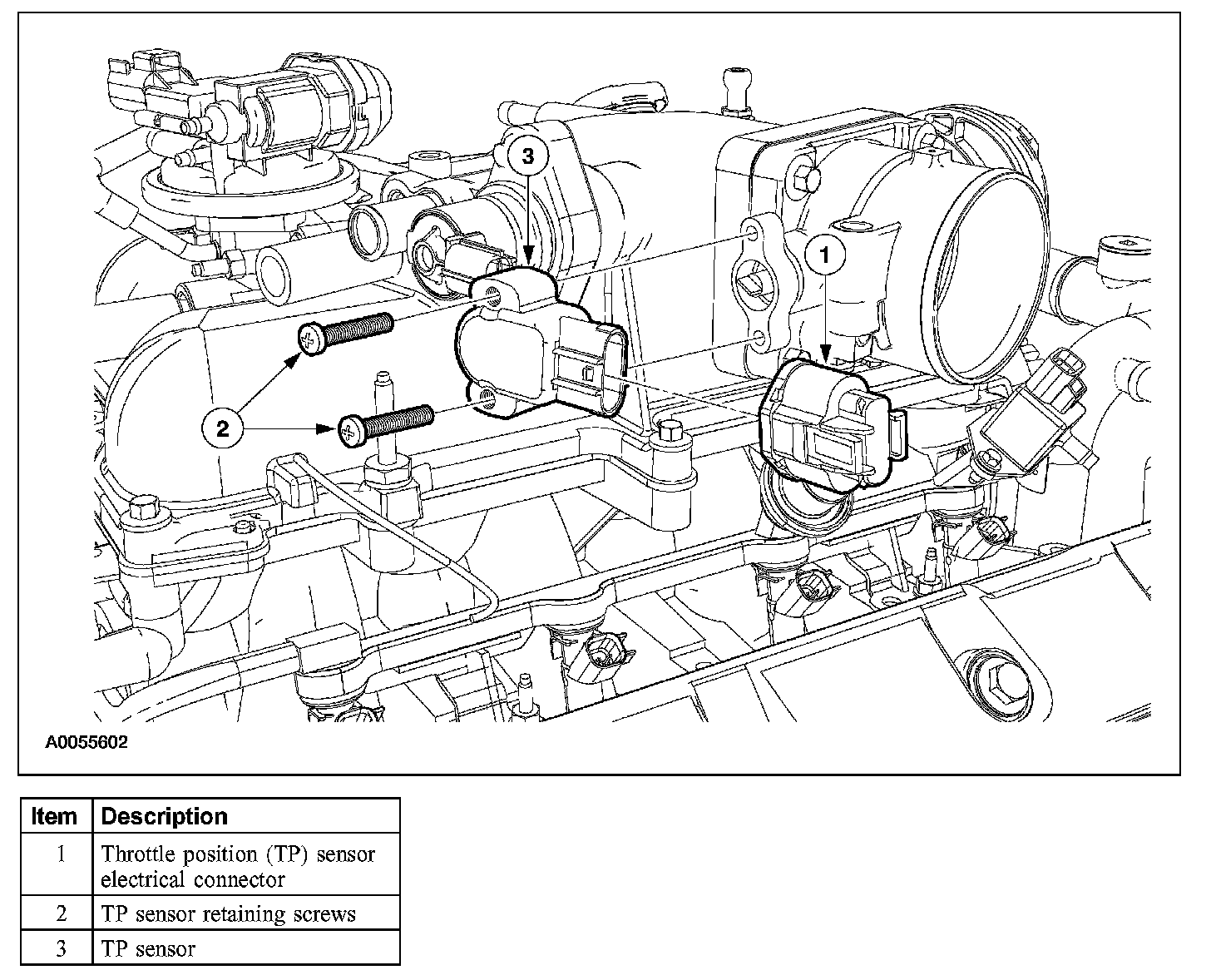

Removal and Installation
1. Disconnect the battery ground cable.
2. Disconnect the throttle position (TP) sensor electrical connector.
3. Remove the TP sensor retaining screws.
- To install, tighten to 10 Nm (89 lb-in).

4. Remove the TP sensor.
5. To install, reverse the removal procedure.
