Home >> Lincoln >> 2005 >> Aviator AWD V8-4.6L DOHC VIN H >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Transmission Position Sensor/Switch >> Locations

Transmission Position Sensor/Switch: Locations

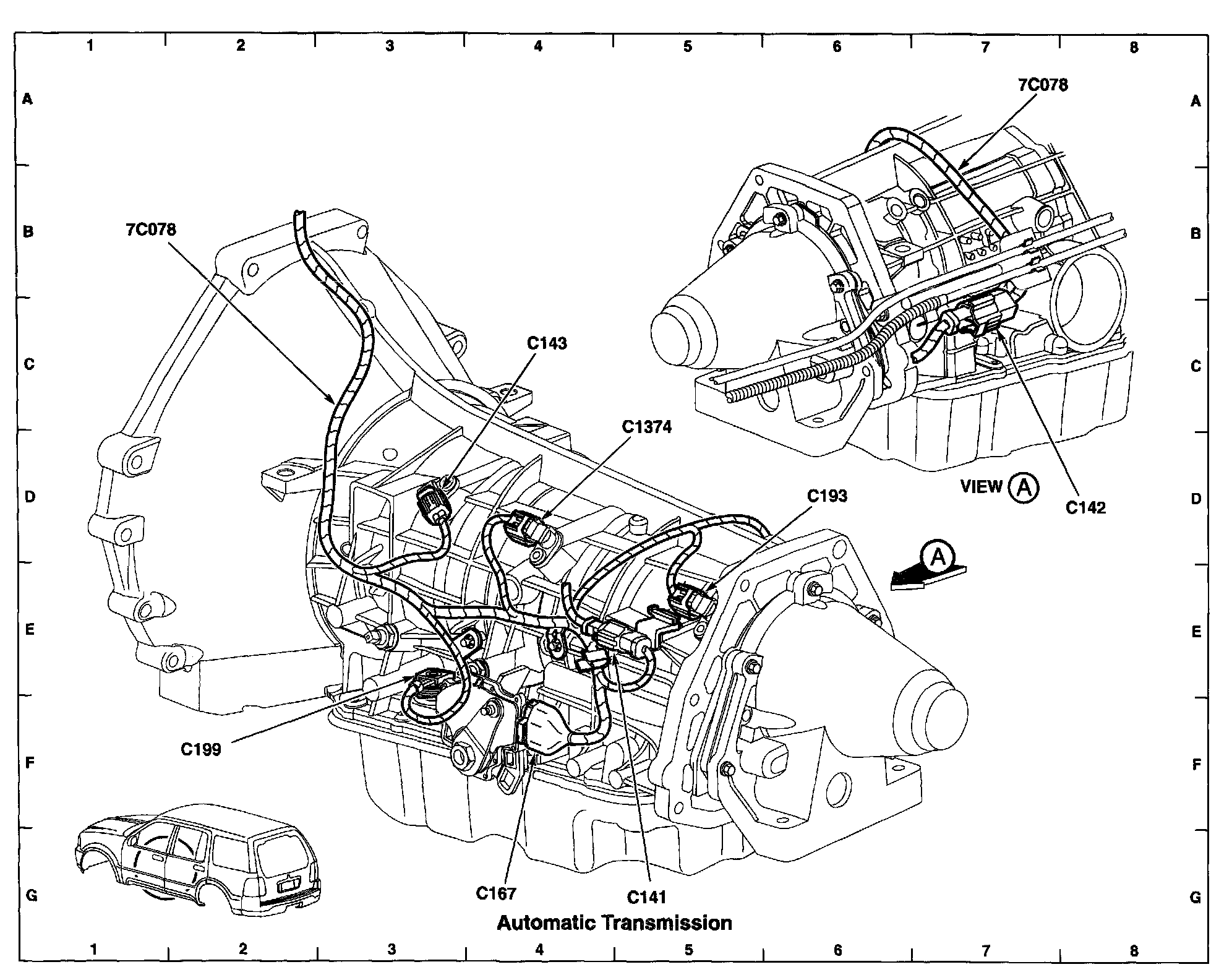

View 151-9 (Automatic Transmission):

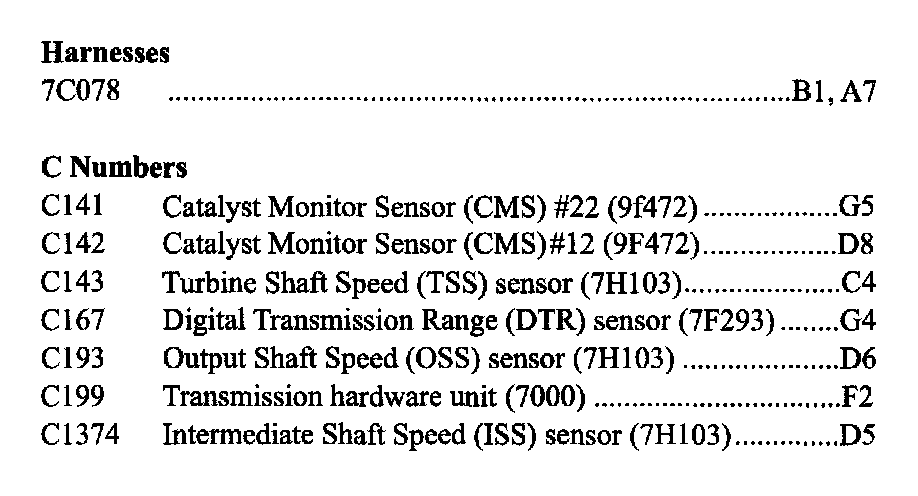

View 151-9 (Automatic Transmission - Legend):
