EGR Control Module: Locations

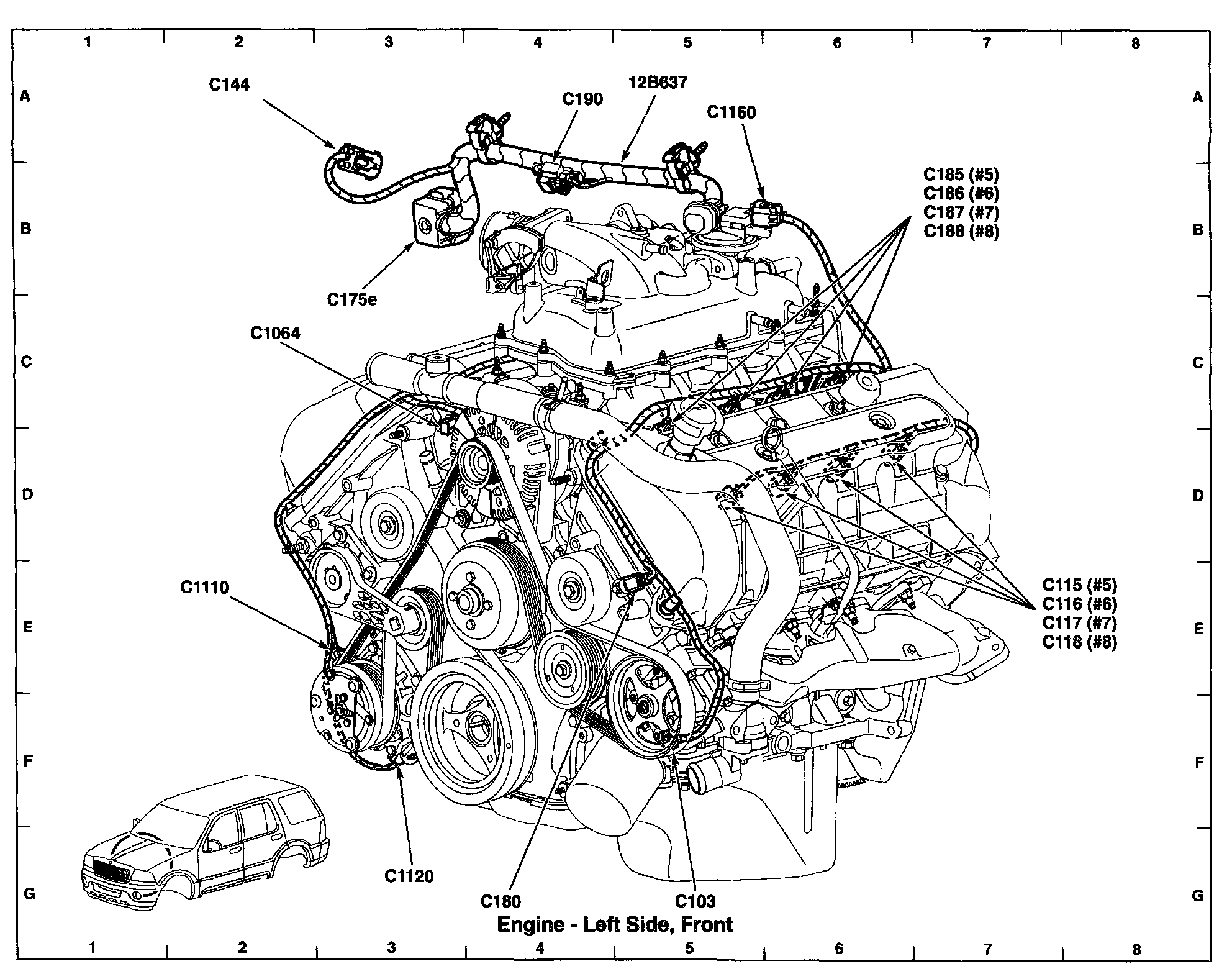

View 151-5 (Engine-Left Side, Front):

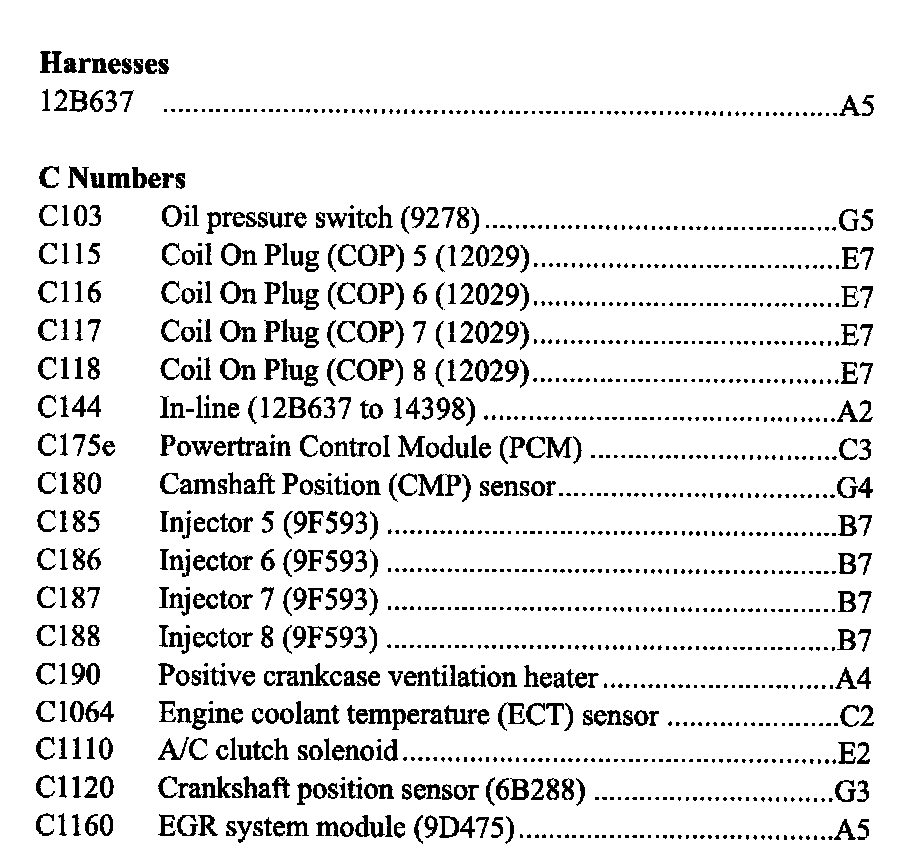

View 151-5 (Engine-Left Side, Front - Legend):
