Removal and Installation

SPARK PLUGS

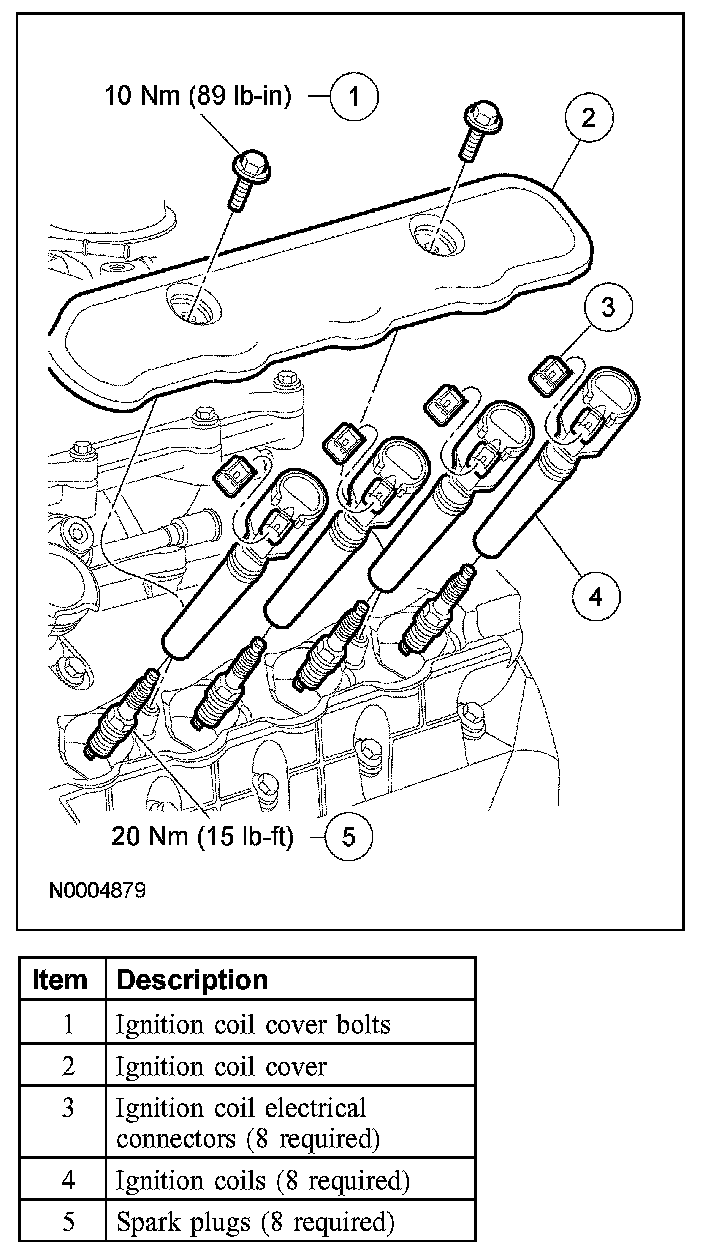

Exploded Views

Removal and Installation
1. Disconnect the negative battery cable.
2. Remove the ignition coil cover bolts.
- To install, tighten to 10 Nm (89 lb-in).

3. Remove the ignition coil covers.
4. Disconnect the 8 ignition coil electrical connectors.
5. Remove the 8 ignition coils from the spark plugs.
- Apply silicone dielectric compound to the inside of the ignition coil boot when installing.

6. Remove the 8 spark plugs.
- To install, tighten to 20 Nm (15 lb-ft).

7. To install, reverse the removal procedure.
