Panel Illumination Control Module: Service and Repair

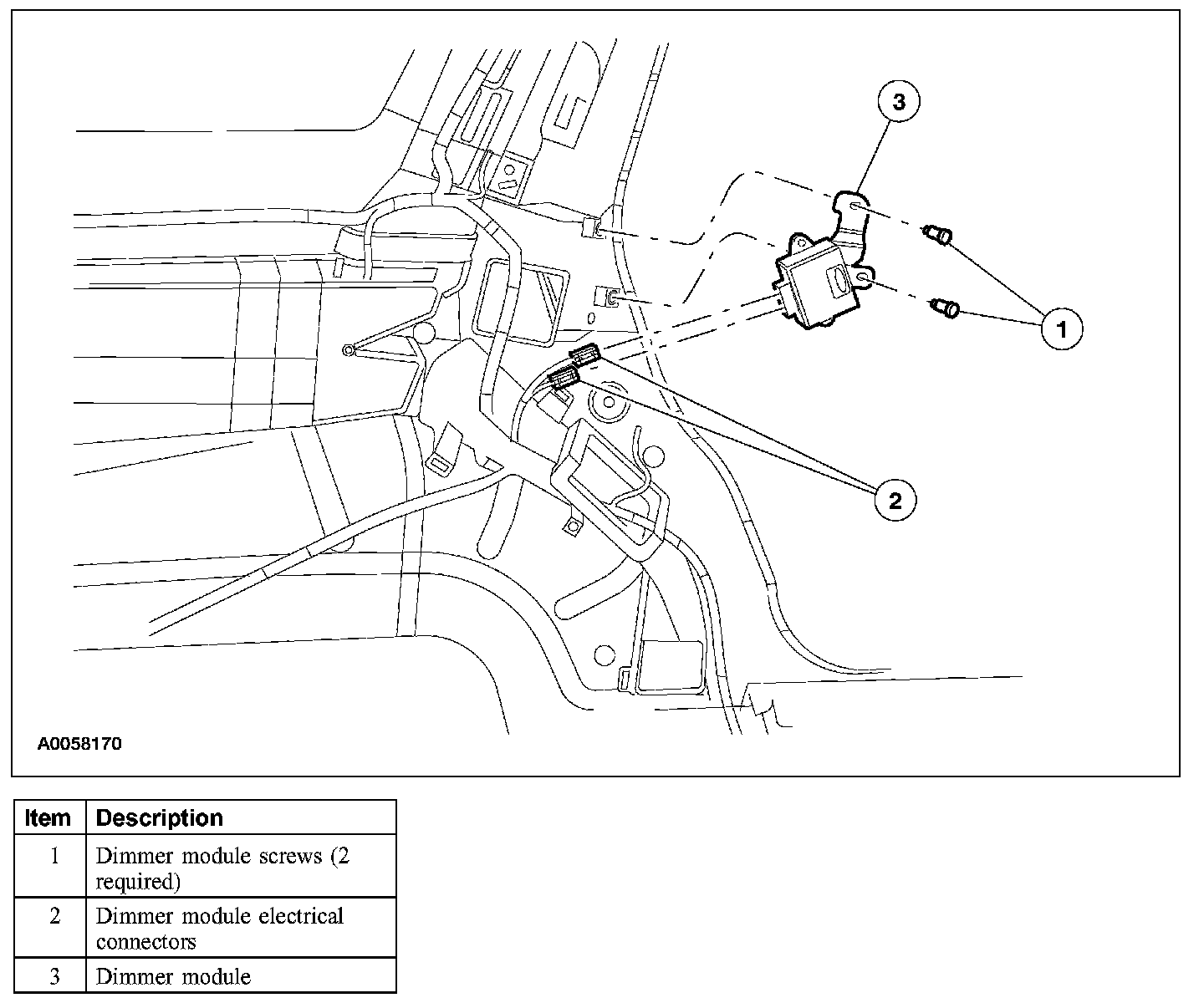

DIMMER MODULE
1. Remove the LH quarter trim panel.
2. Remove the 2 screws and the dimmer module.
- Disconnect the electrical connectors.
3. To install, reverse the removal procedure.
1. Remove the LH quarter trim panel.
2. Remove the 2 screws and the dimmer module.
- Disconnect the electrical connectors.
3. To install, reverse the removal procedure.
