Steering Control Module: Service and Repair

Variable Assist Power Steering (VAPS) Module

Removal and Installation

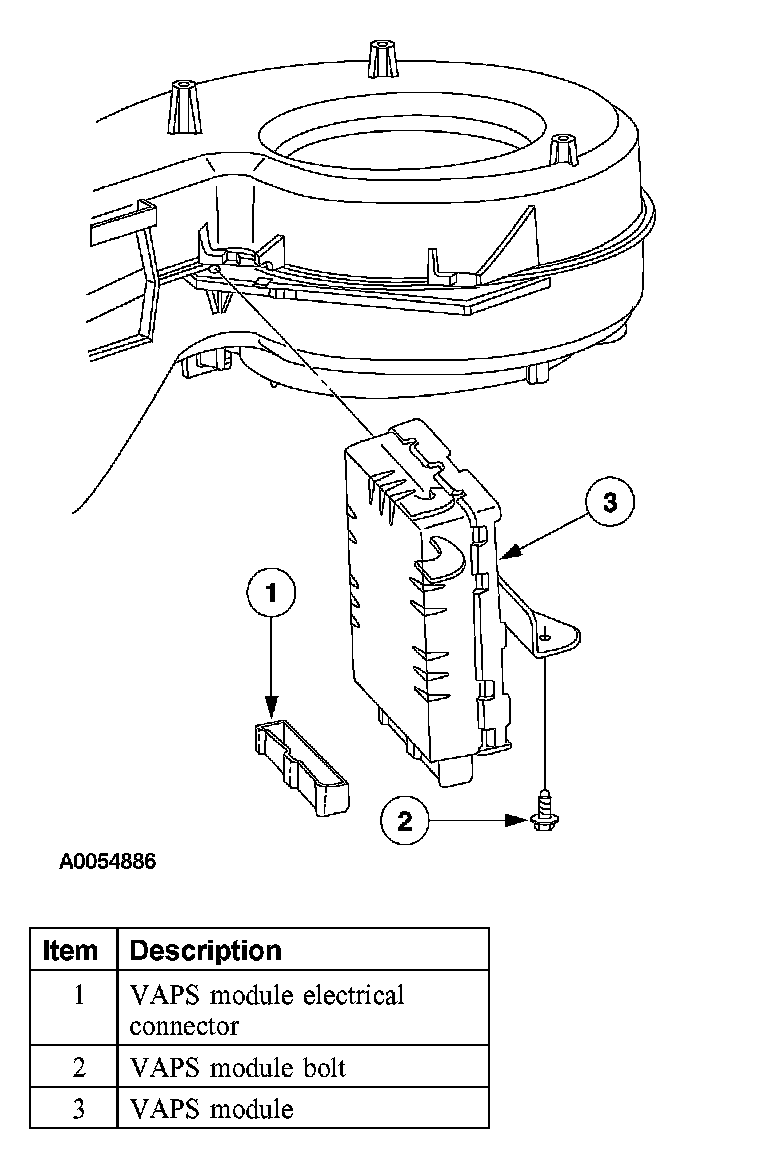

NOTE: The VAPS module is located under the RH side of the instrument panel, attached to the heater and evaporator core housing.

1. Disconnect the VAPS module electrical connector.
2. Remove the bolt and the VAPS module.
3. To install, reverse the removal procedure.
^ Calibrate the VAPS module. Refer to Information Bus (Module Communications Network).
