Power Window Switch: Service and Repair

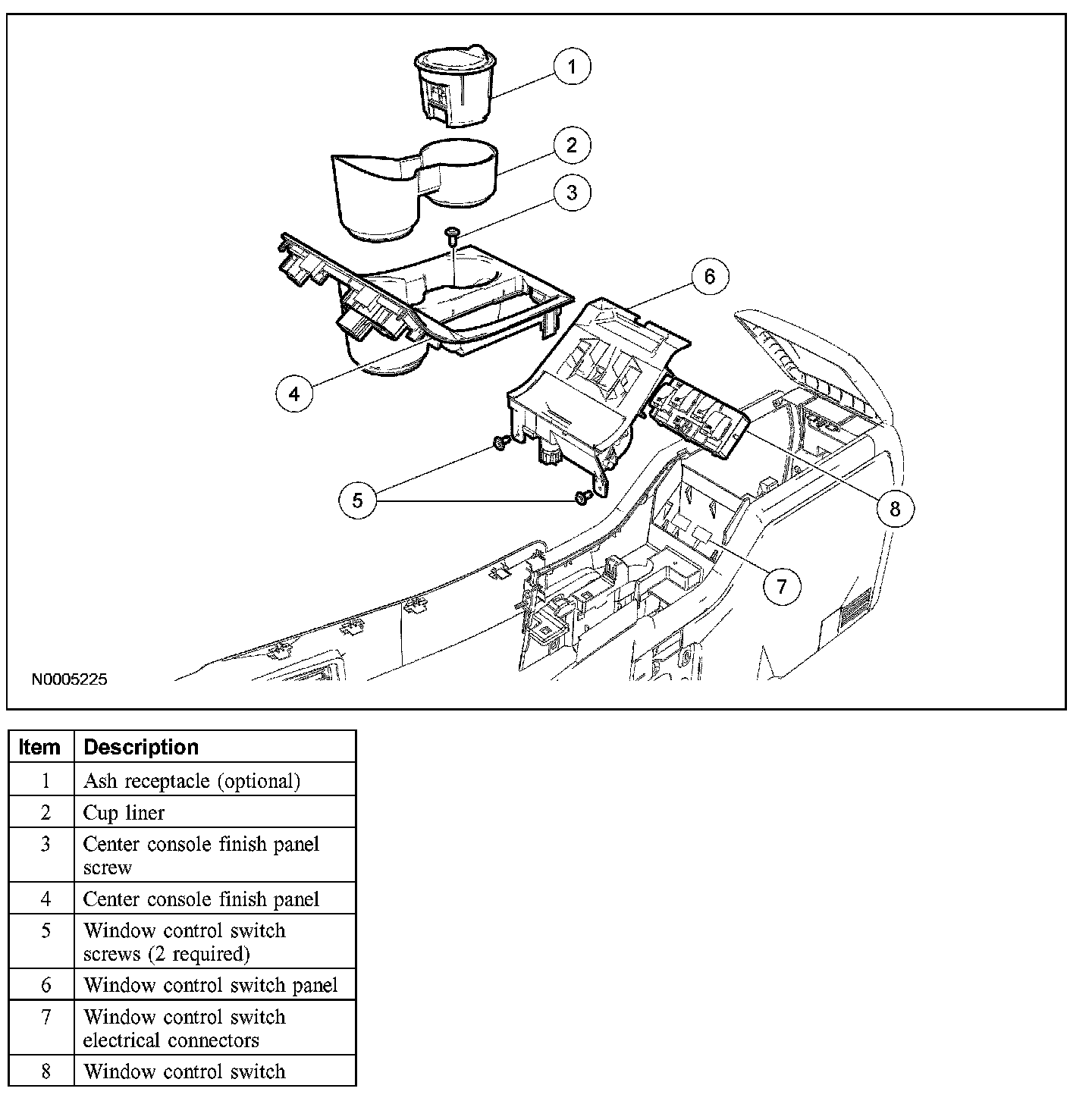

WINDOW CONTROL SWITCH







Removal and Installation
1. If equipped, remove the ash receptacle.
2. Remove the cup liner.
3. Remove the center console finish panel screw and position the center console finish panel aside.
4. Remove the 2 window control switch panel screws.
5. Disconnect the window control switch electrical connectors and remove the control switch panel.
6. Remove the window control switch.
7. To install, reverse the removal procedure.
