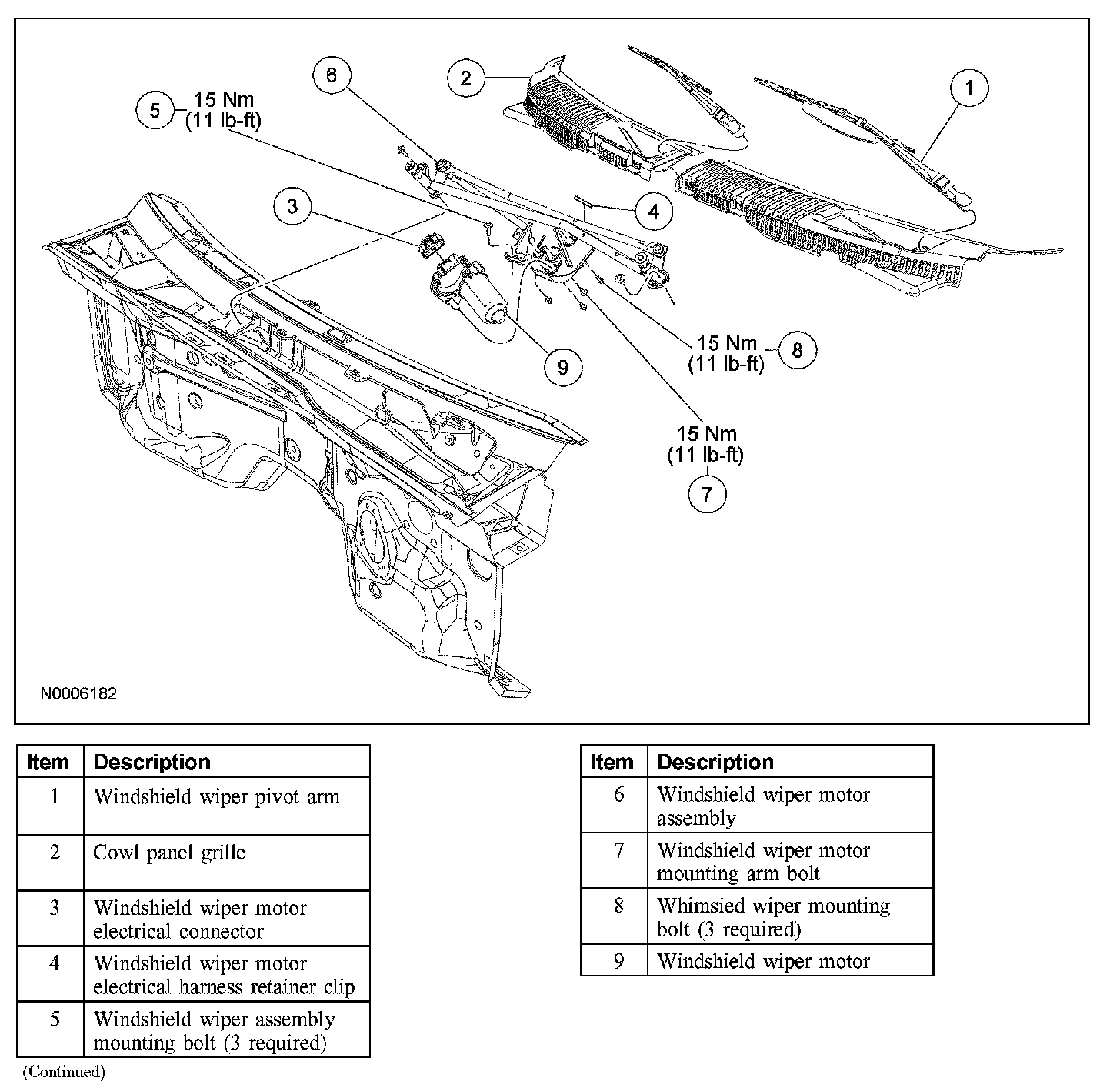

Wiper and Washer System - Exploded View, Front

WIPER AND WASHER SYSTEM - EXPLODED VIEW, FRONT







Removal and Installation
1. For additional information, refer to the procedures.
