Test H: The Alarm System Does Not Operate Correctly - Luggage Compartment Lid Disarm Switch

PINPOINT TEST H: THE ALARM SYSTEM DOES NOT OPERATE CORRECTLY - LUGGAGE COMPARTMENT LID DISARM SWITCH

H1-H3:

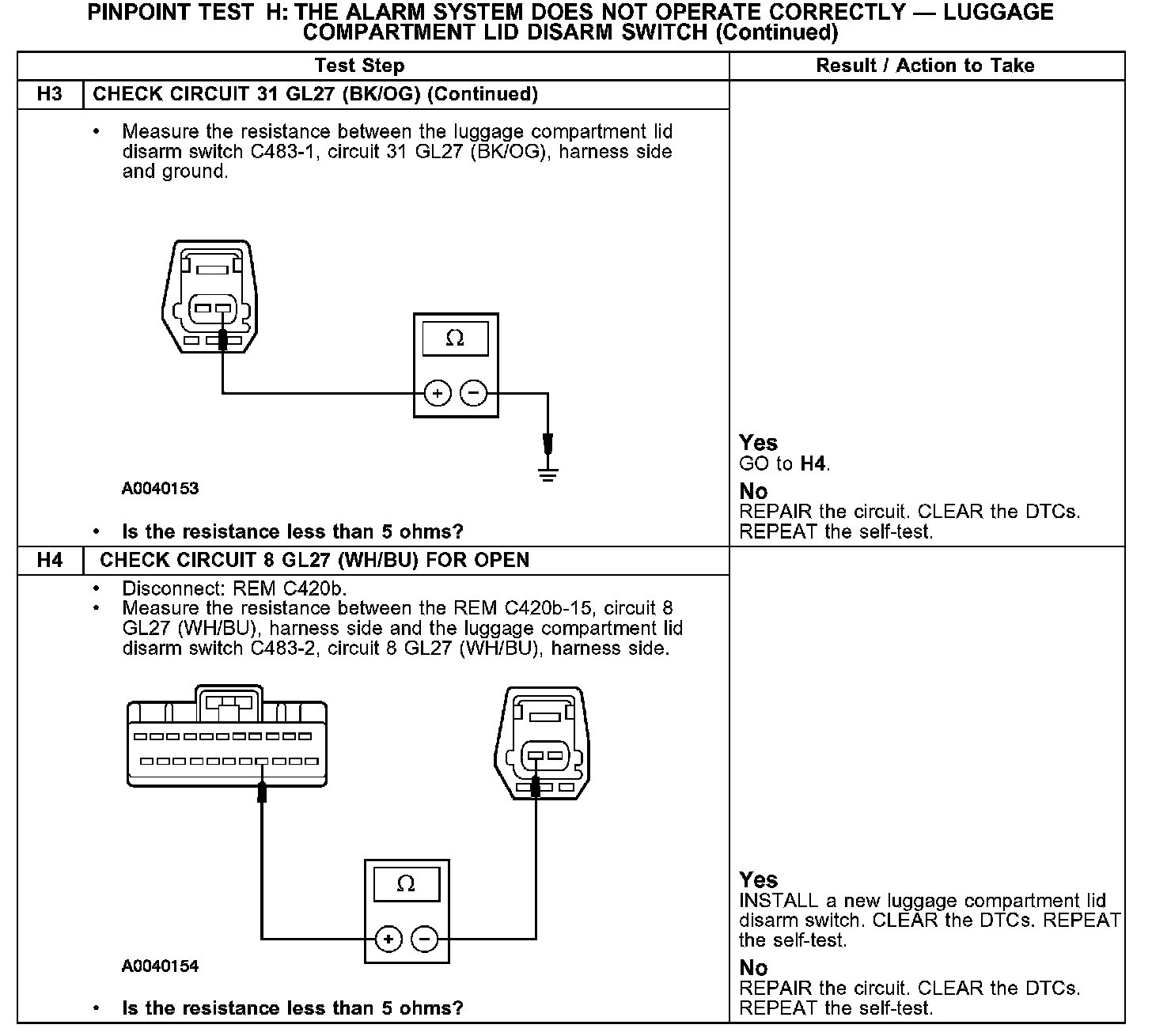

H3-H4:

Normal Operation
The alarm system can be suspended for the luggage compartment lid by using the luggage compartment lid disarm switch. The switch position is monitored by the rear electronic module (REM).

Possible Causes
- luggage compartment lid disarm switch
- REM
- circuit 8-GL27 (WH/BU) open or short to ground
- circuit 31-GL27 (BK/OG) open
