Test H: The Auxiliary Audio Control Is Inoperative/Does Not Operate Correctly-Steering Wheel Control Switches

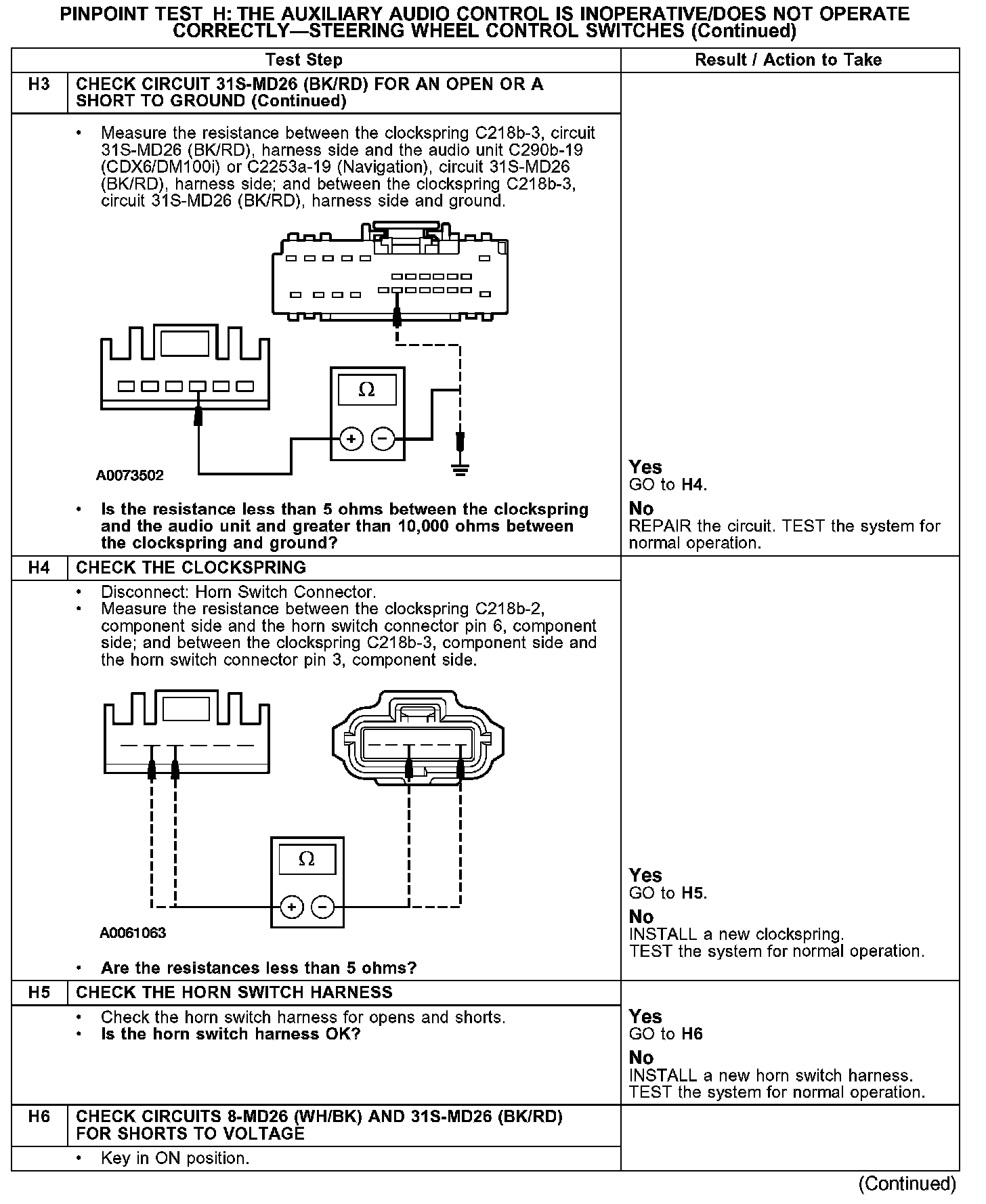

PINPOINT TEST H: THE AUXILIARY AUDIO CONTROL IS INOPERATIVE/DOES NOT OPERATE CORRECTLY-STEERING WHEEL CONTROL SWITCHES

H1:

H1-H3:

H3-H6:

H6-H8:

H8 Continued:

Normal Operation
The steering wheel audio control consists of a specific resistor value for each button function creating a voltage divider. When a button is pressed, a specific voltage is sent to the audio unit. The audio unit uses the reference voltage to determine which input function has been selected. Circuit 8-MD26 (WH/BK) is the reference voltage circuit between the steering wheel audio controls and the audio unit.

Possible Causes
- steering wheel control switches
- audio unit
- clockspring
- circuit 8-MD26 (WH/BK) open or short to ground
- circuit 31S-MD26 (BK/RD) open
- powertrain control module (PCM)
- horn switch harness
