Test C: The Roof Opening Panel Rattles

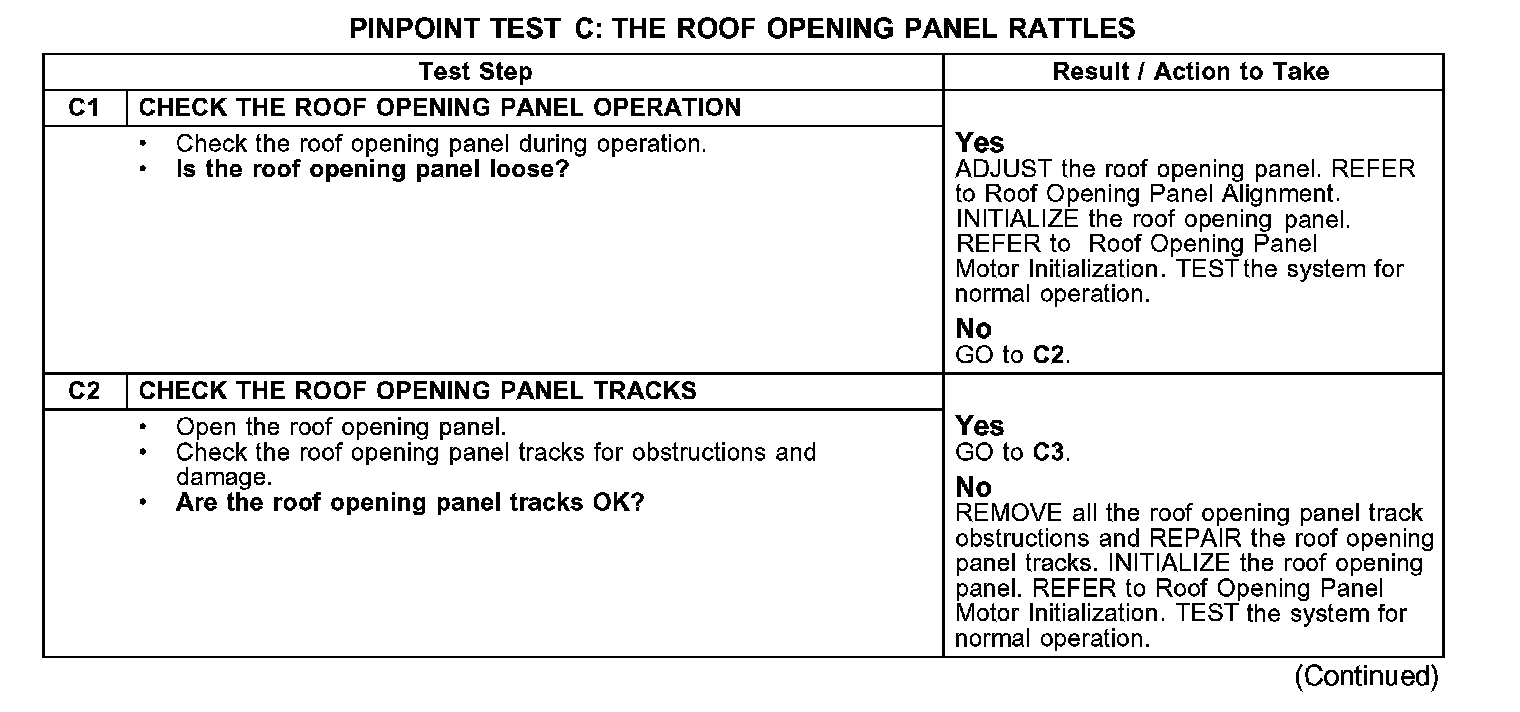

PINPOINT TEST C: THE ROOF OPENING PANEL RATTLES

C1-C2:

C3-C7:

Normal Operation
When the roof opening panel glass is completely closed, it should be flush with the roof panel. All components should be secured correctly.

Possible Causes
- roof opening panel operation
- roof opening panel tracks
- roof opening panel water trough
- roof opening panel lifter assemblies
- headliner
- roof opening panel motor pad
