View 151-15 (Engine - Front View)

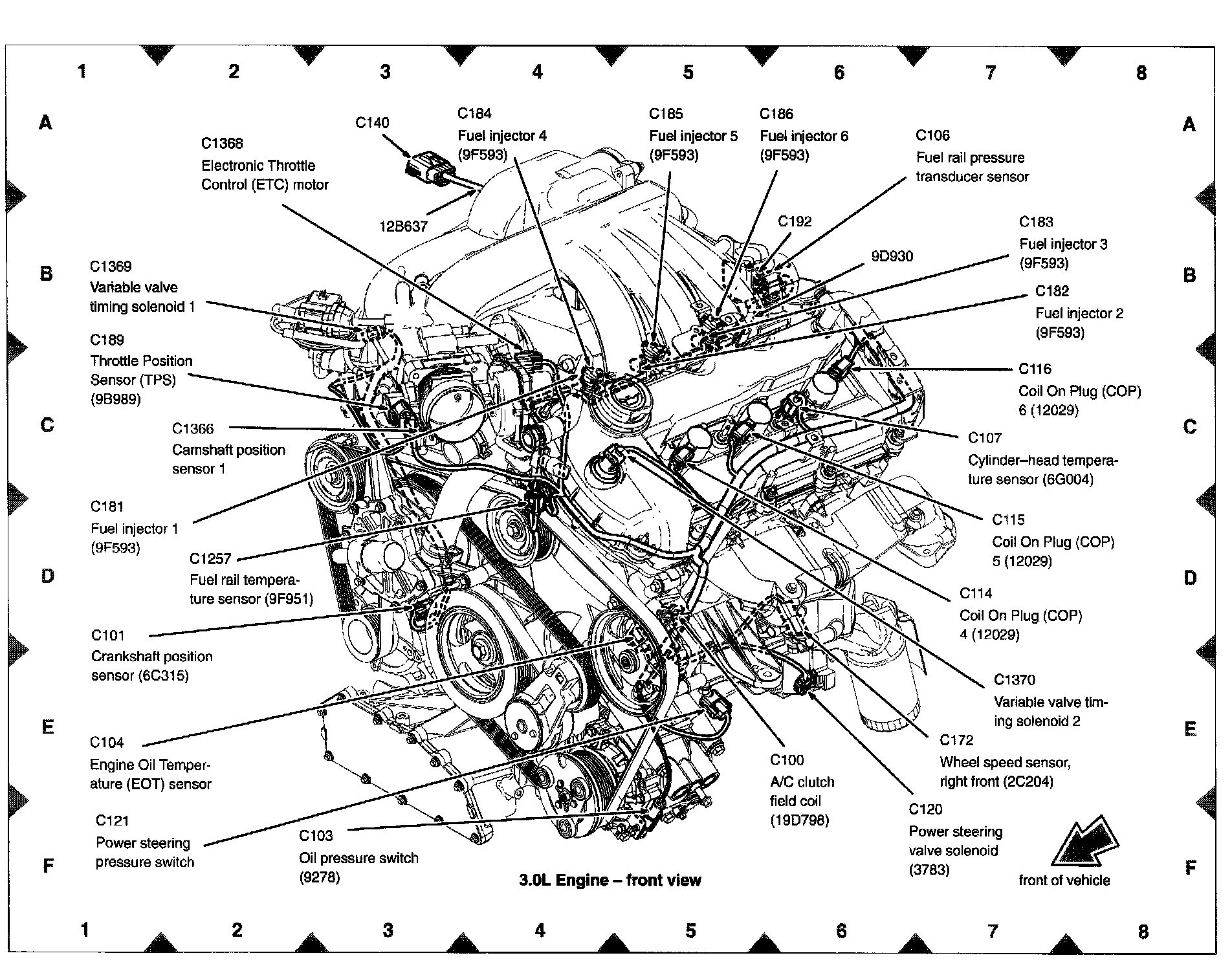

View 151-15 (Engine - Front View):



View 151-16 (Engine - Rear View):
