Oil Pan, Engine

Oil Pan

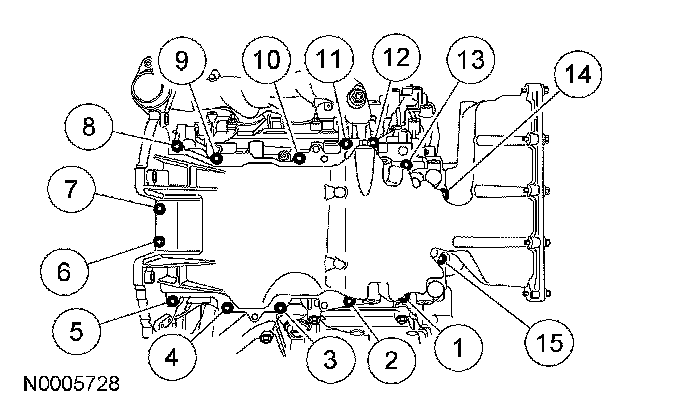

Tighten in the sequence shown to 25 Nm (18 ft. lbs.).

Oil Pan Baffle
Tighten to 20 Nm (15 ft. lbs.) and then rotate 45 degrees.
