Fog/Driving Lamp: Service and Repair

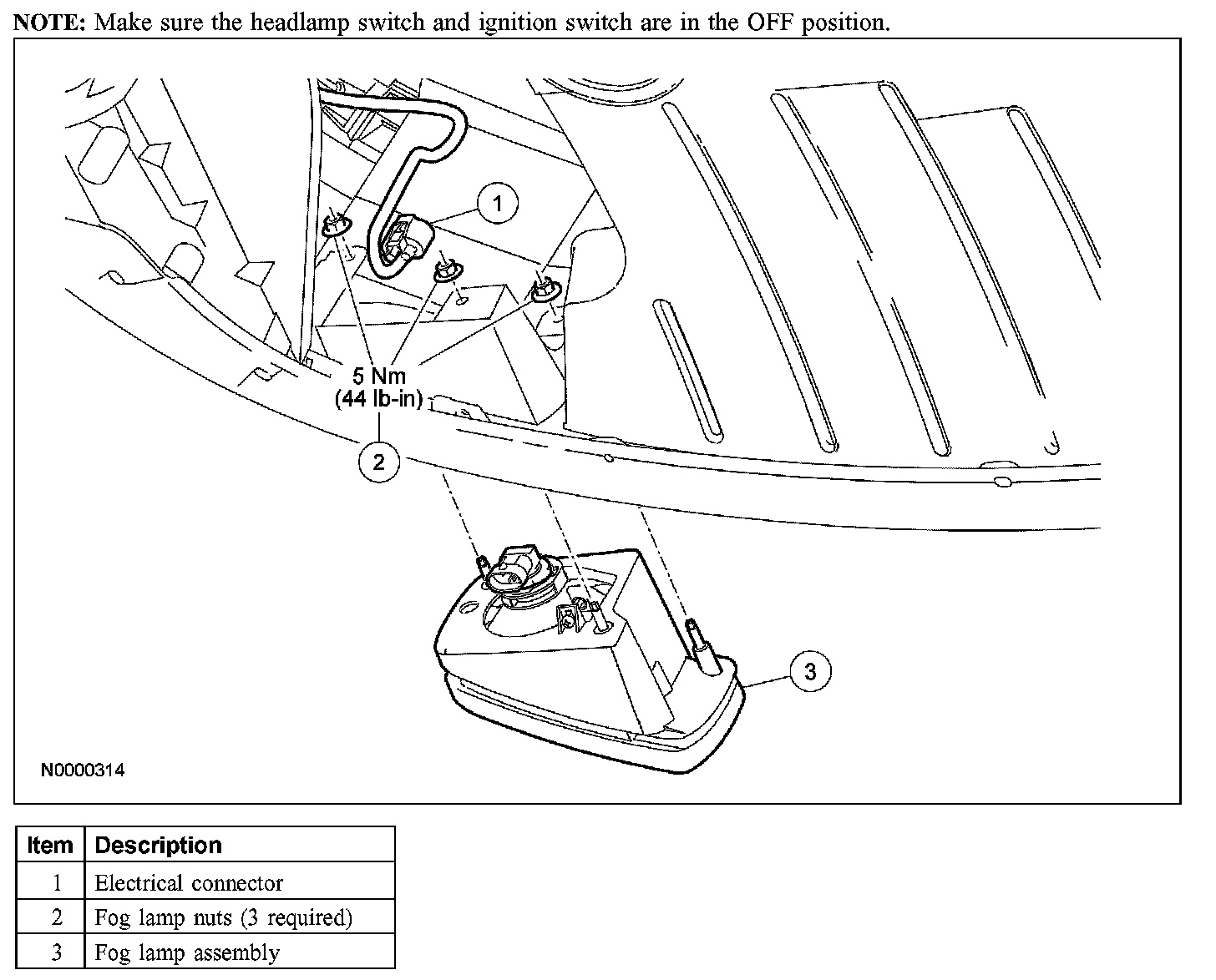

FOG LAMPRemoval and Installation 1.
Remove the 3 fog lamp nuts.
-
To install, tighten to
5 Nm (44 lb-in).
2.
Disconnect the electrical connector.
3.
Remove the fog lamp assembly.
4.
To install, reverse the removal procedure.
