Tests NC: Ignition Engine Speed Input Circuit



PINPOINT TEST NC: IGNITION ENGINE SPEED INPUT CIRCUIT

This pinpoint test is intended to diagnose the powertrain control module (PCM) (12A650).

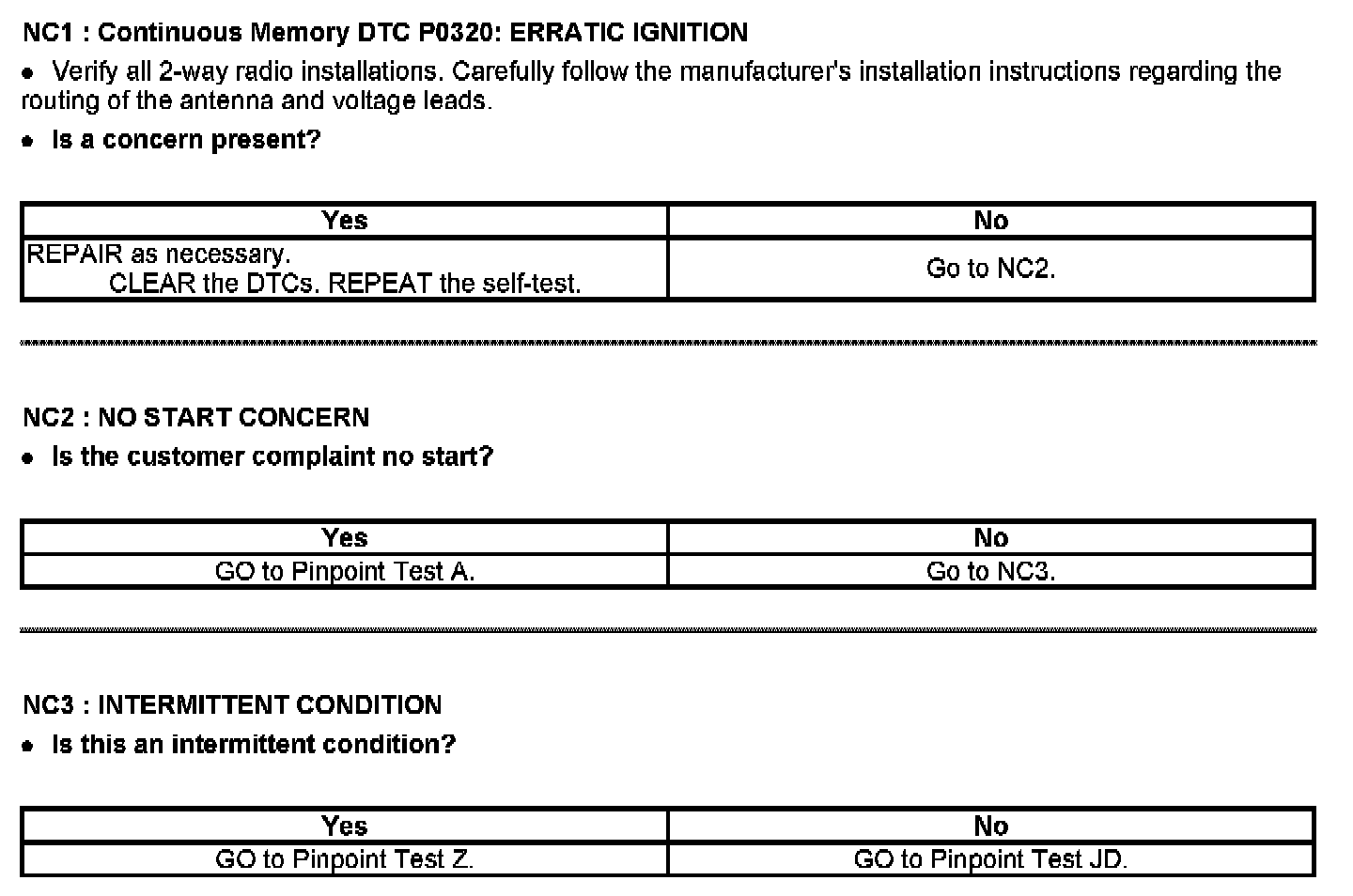

NC1 - NC3:
