Drive Belt

Front End Accessory Drive (FEAD) - Exploded View, 4.6L (2V) and 5.4L (3V)

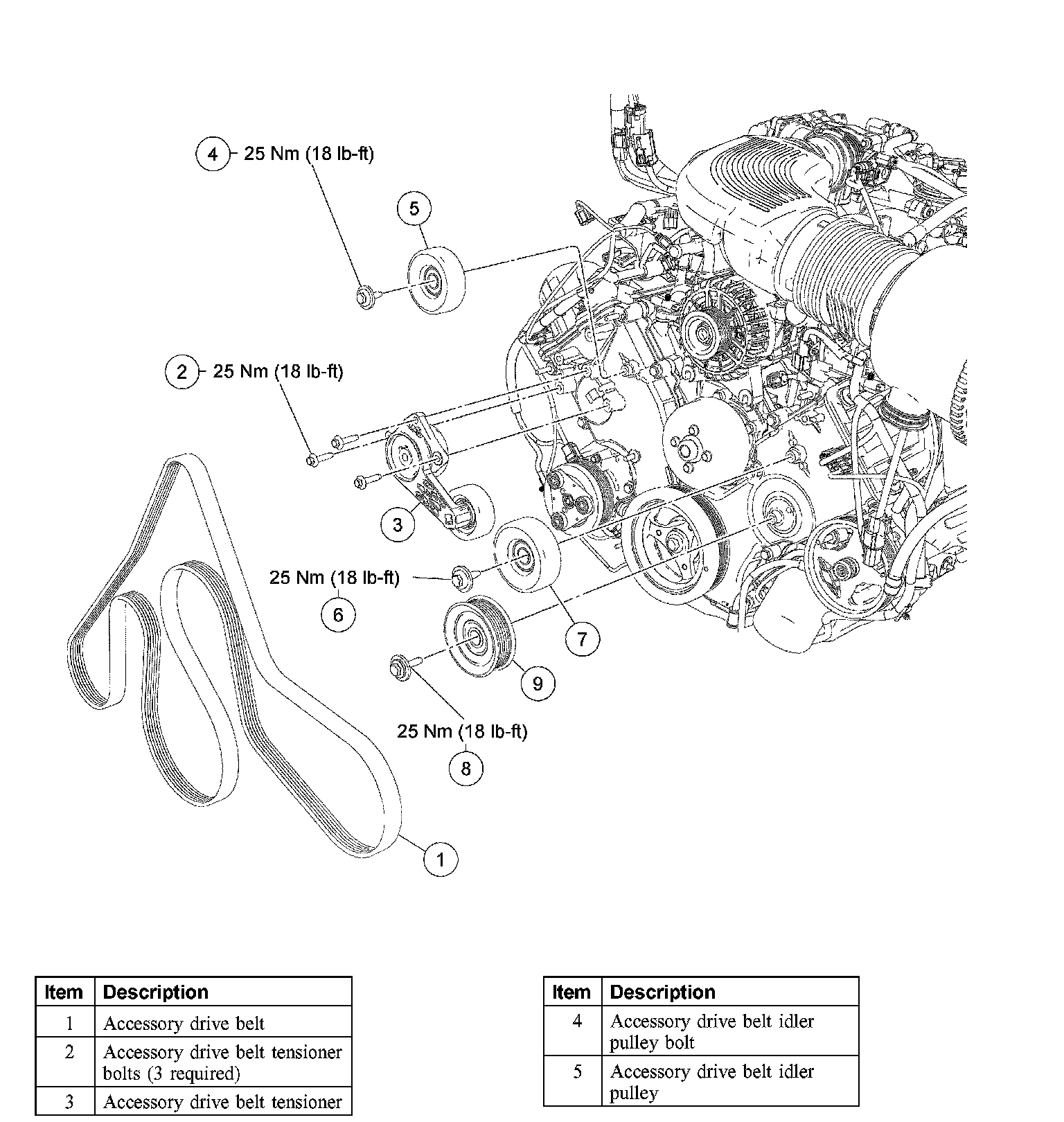

Front End Accessory Drive (FEAD) - Exploded View, 4.6L (2V) and 5.4L (3V) (Part 1):

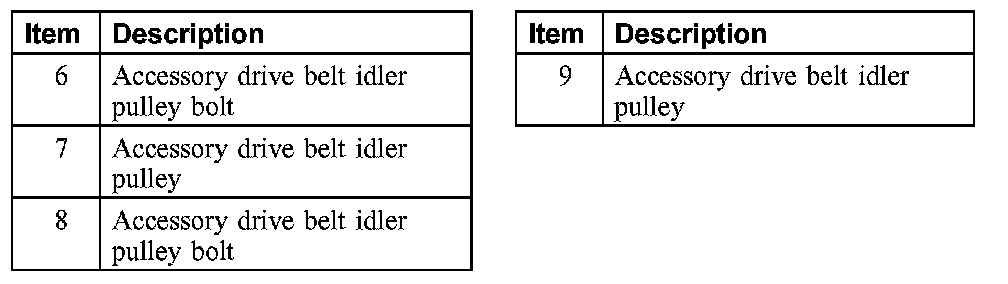

Front End Accessory Drive (FEAD) - Exploded View, 4.6L (2V) and 5.4L (3V) (Part 2):






NOTE: 4.6L (2V) engine shown, 5.4L (W) engine similar.
