Test H: The Vehicle Does Not Start

PINPOINT TEST H: THE VEHICLE DOES NOT START

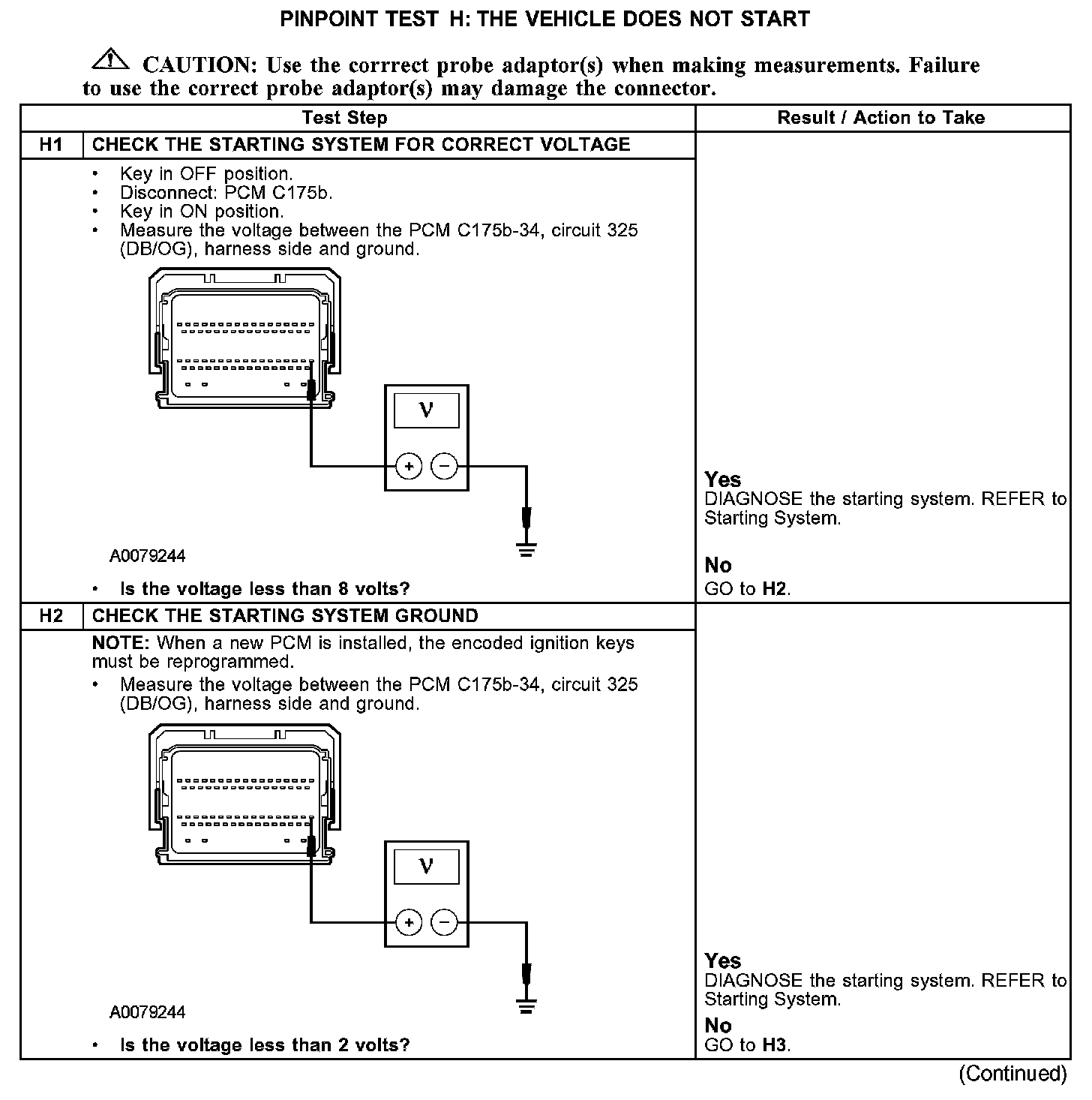

H1-H2:

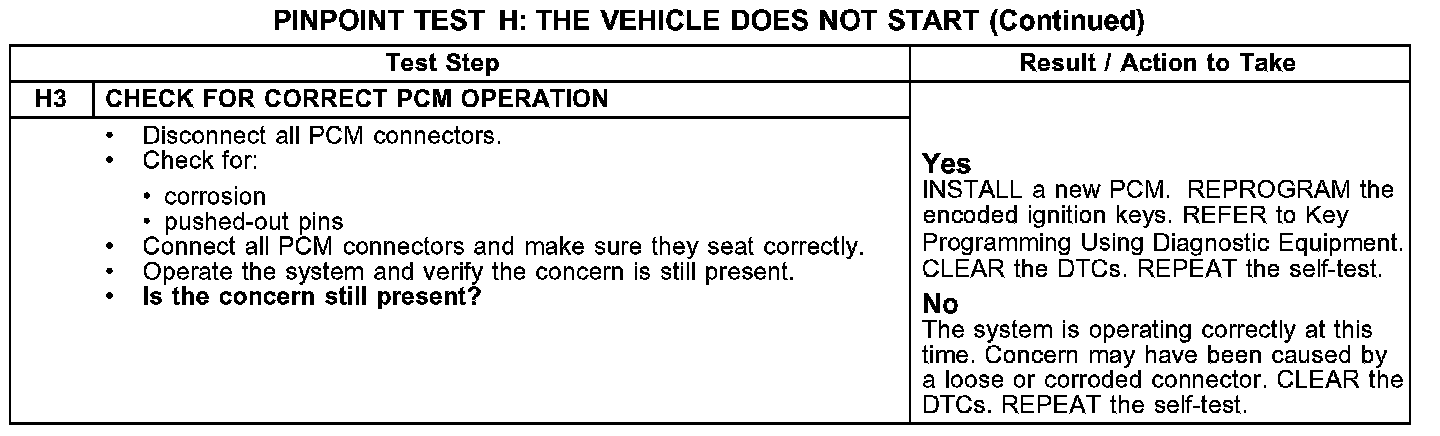

H3:

Normal Operation
During each vehicle start sequence, the passive anti-theft system (PATS) transceiver reads the PATS key identification code and sends the data to the powertrain control module (PCM). The PCM supplies voltage to the starter on circuit 325 (DB/OG).

Possible Causes
- circuit 325 (DB/OG) open
- PATS transceiver
- PATS key
- PCM
