Electrical Diagrams

PLEASE NOTE: Some diagrams may appear to be missing because of gaps in the number sequences. These "gaps" are actually for diagrams that do not apply to the vehicle model selected.

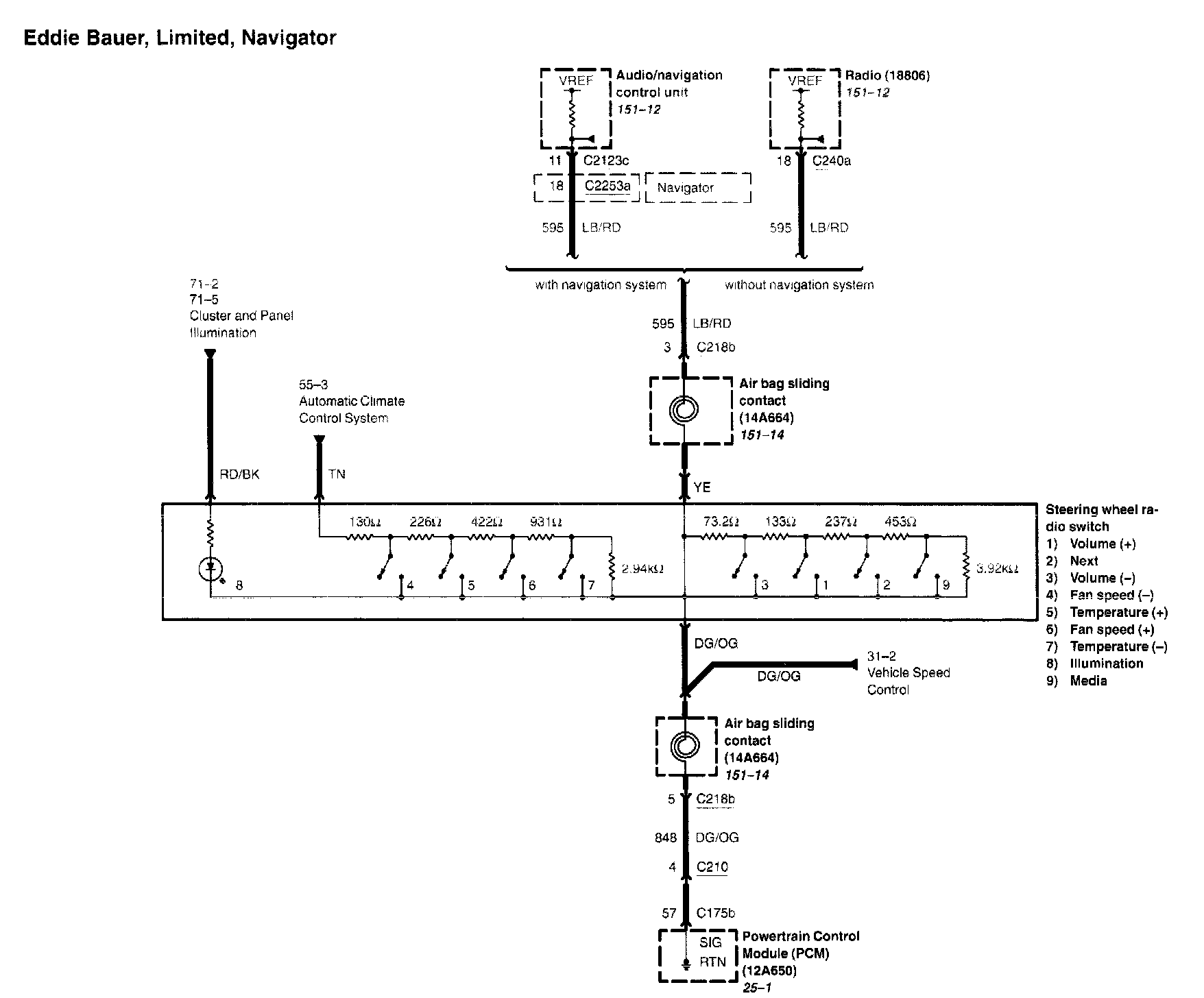

130-1:

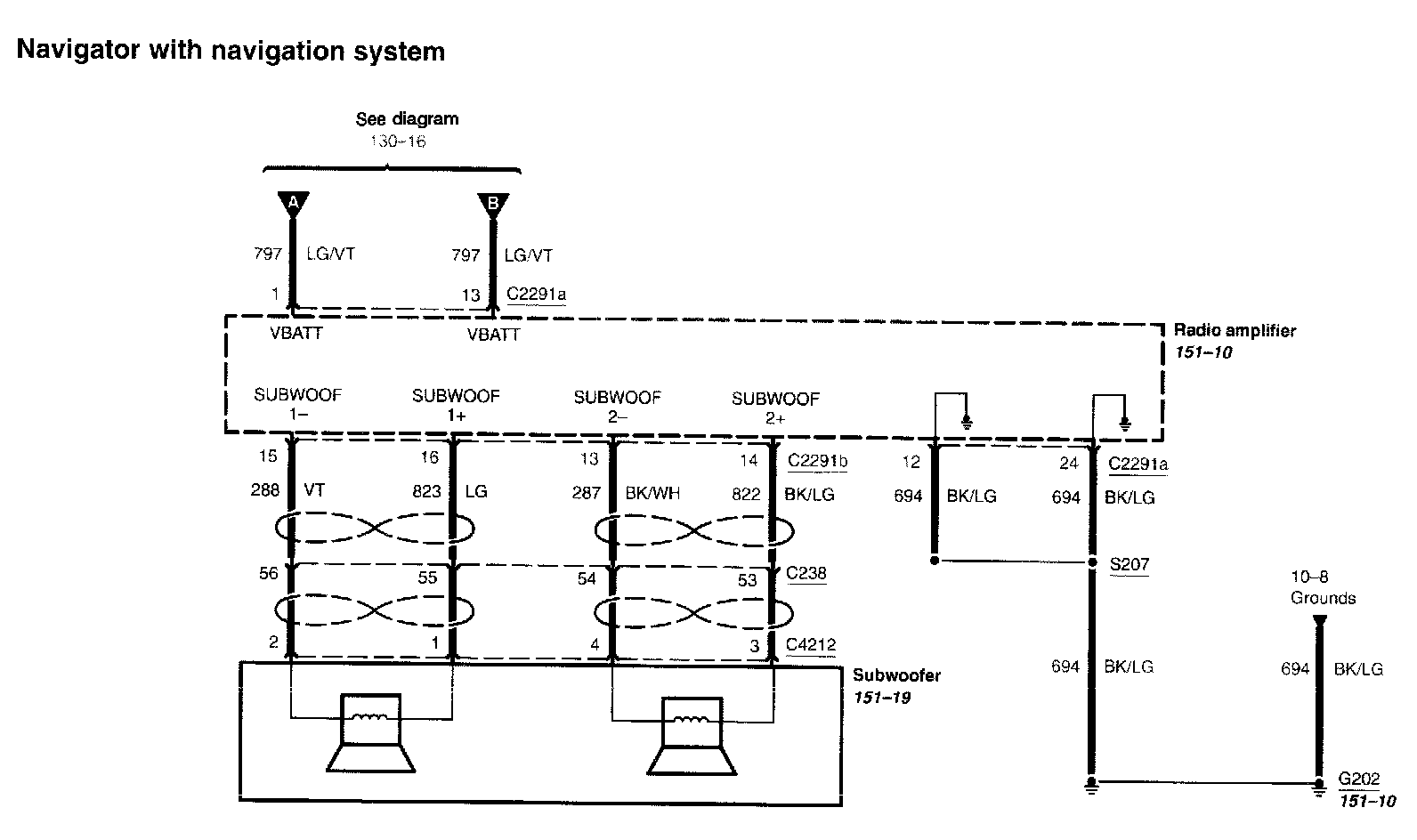

130-2:

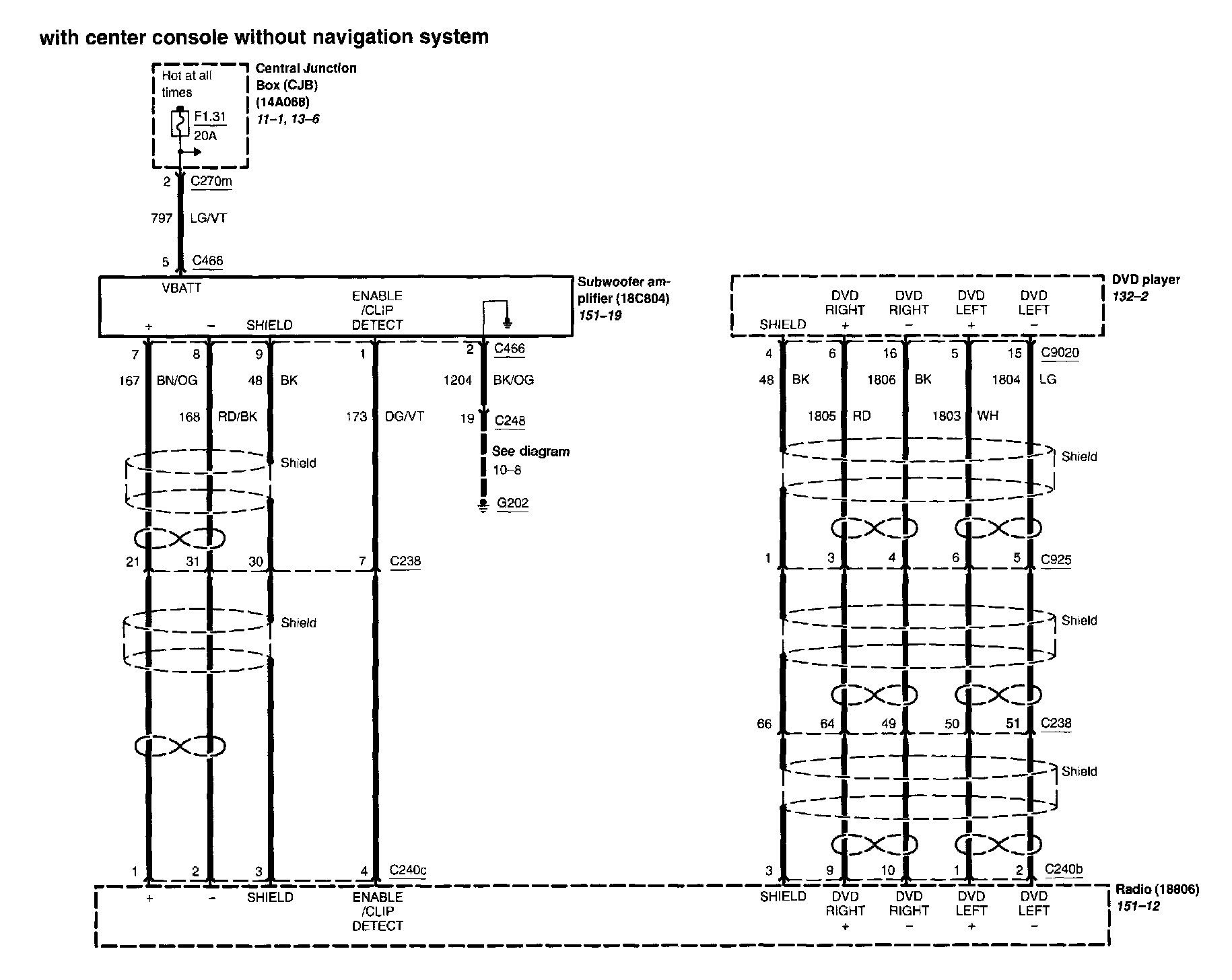

130-3:

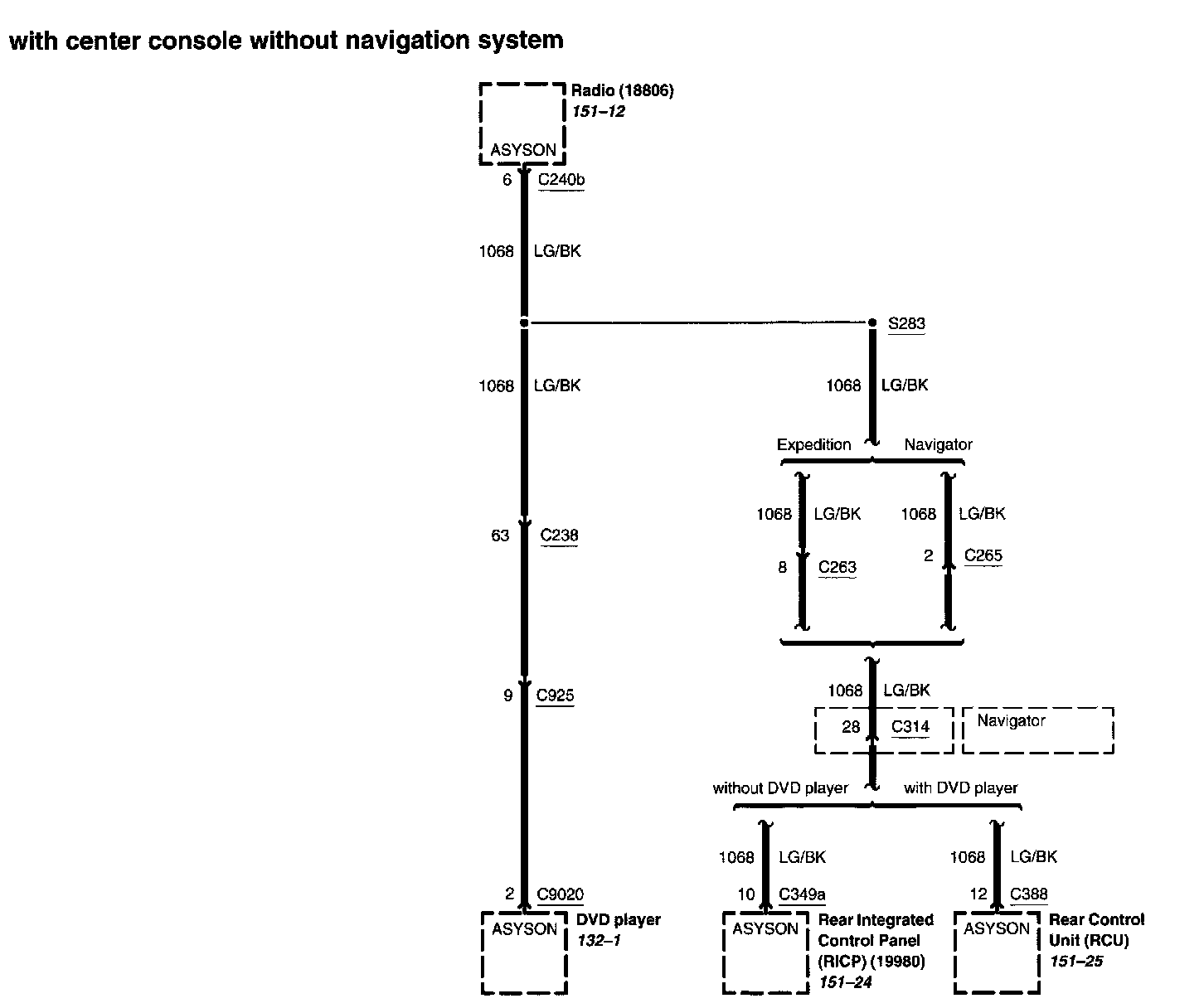

130-4:

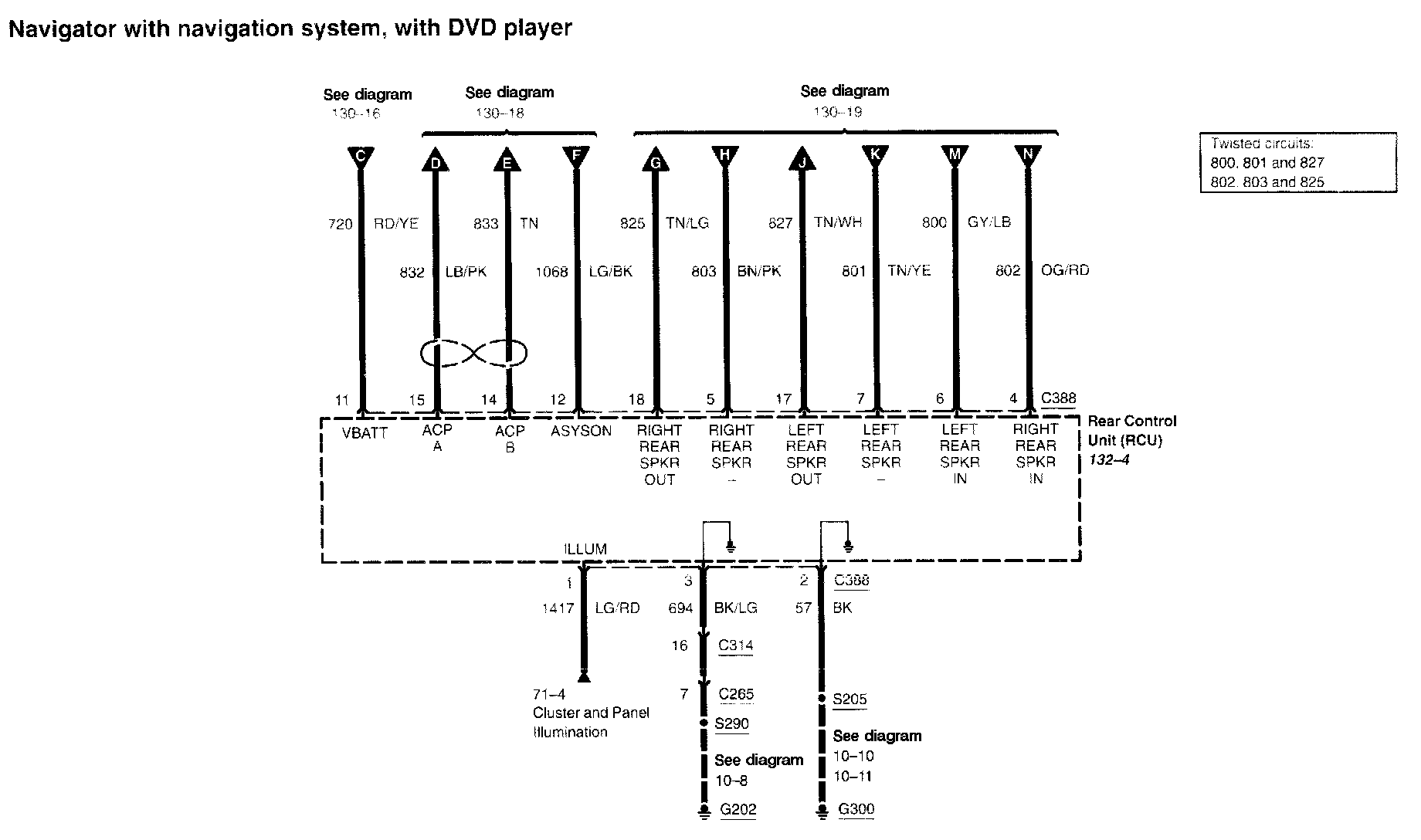

130-5:

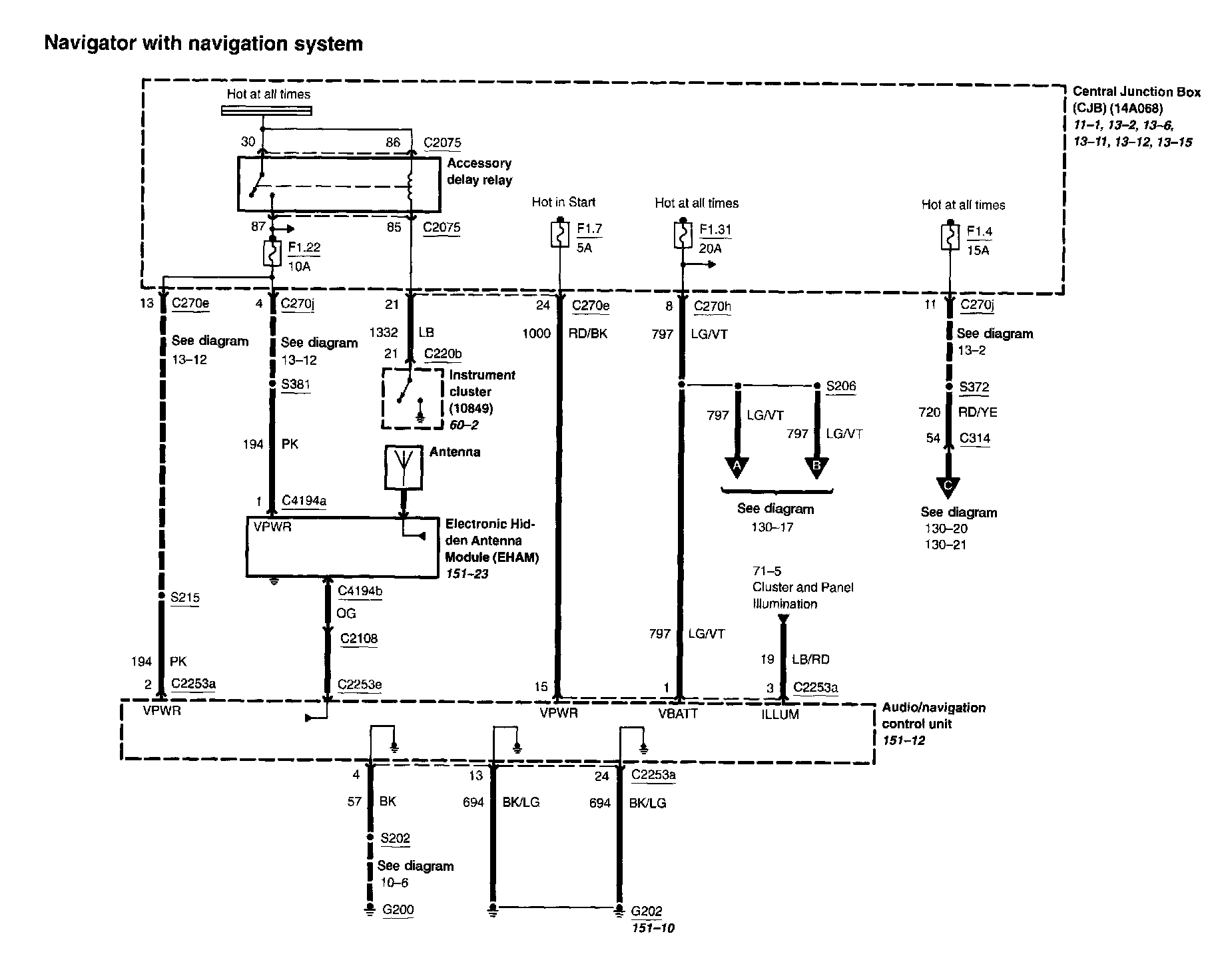

130-6:

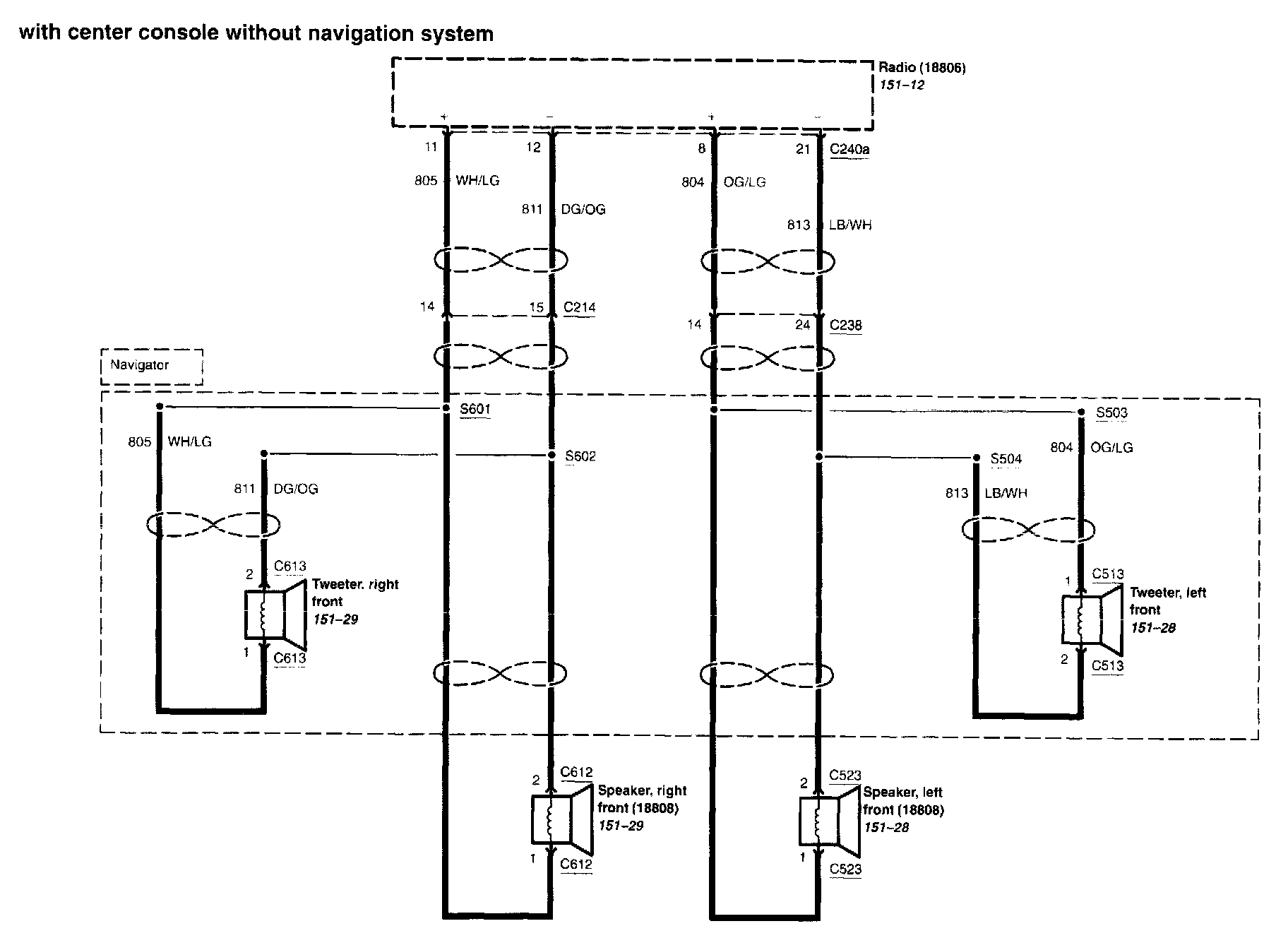

130-7:

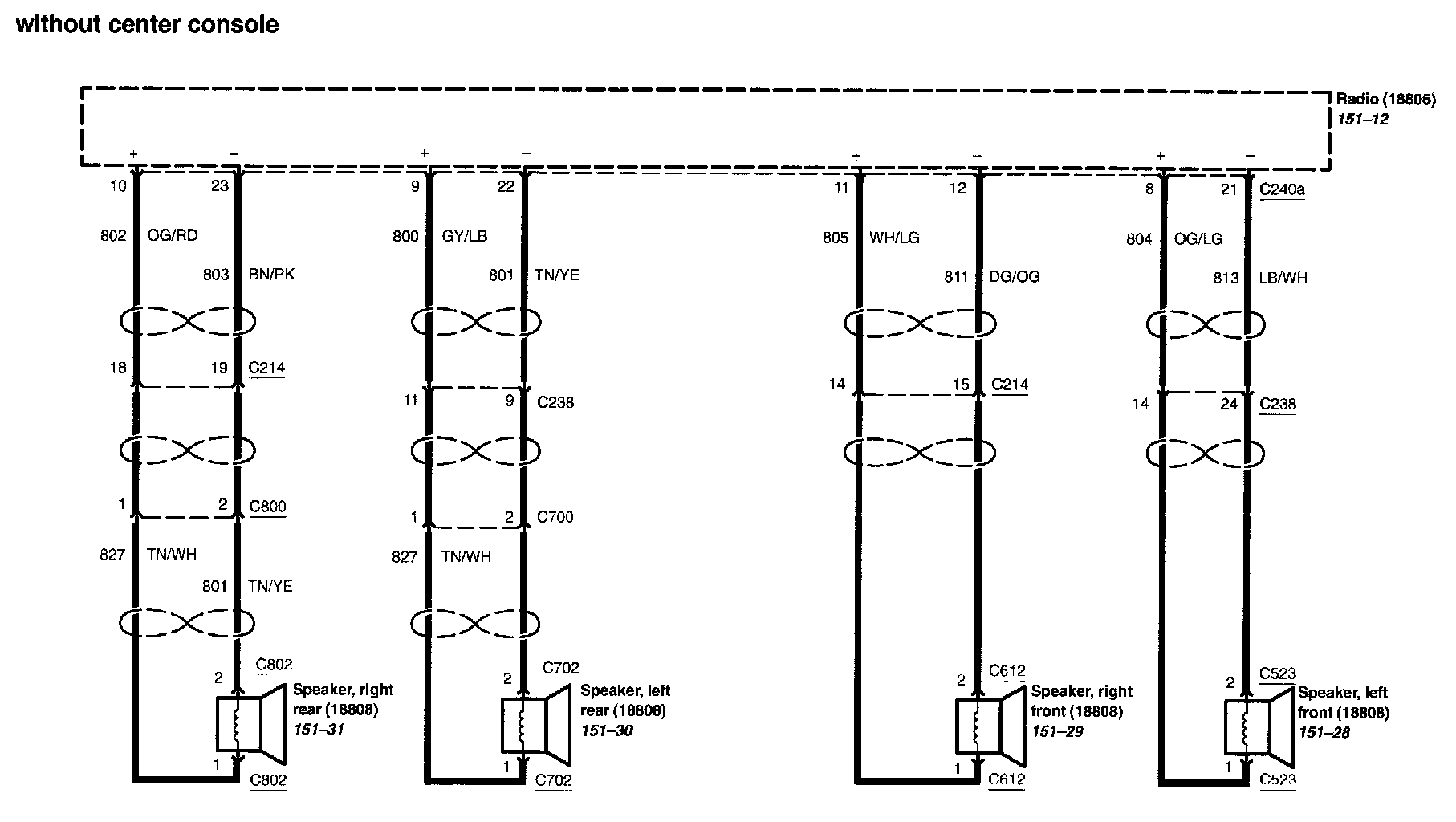

130-8:

130-9:

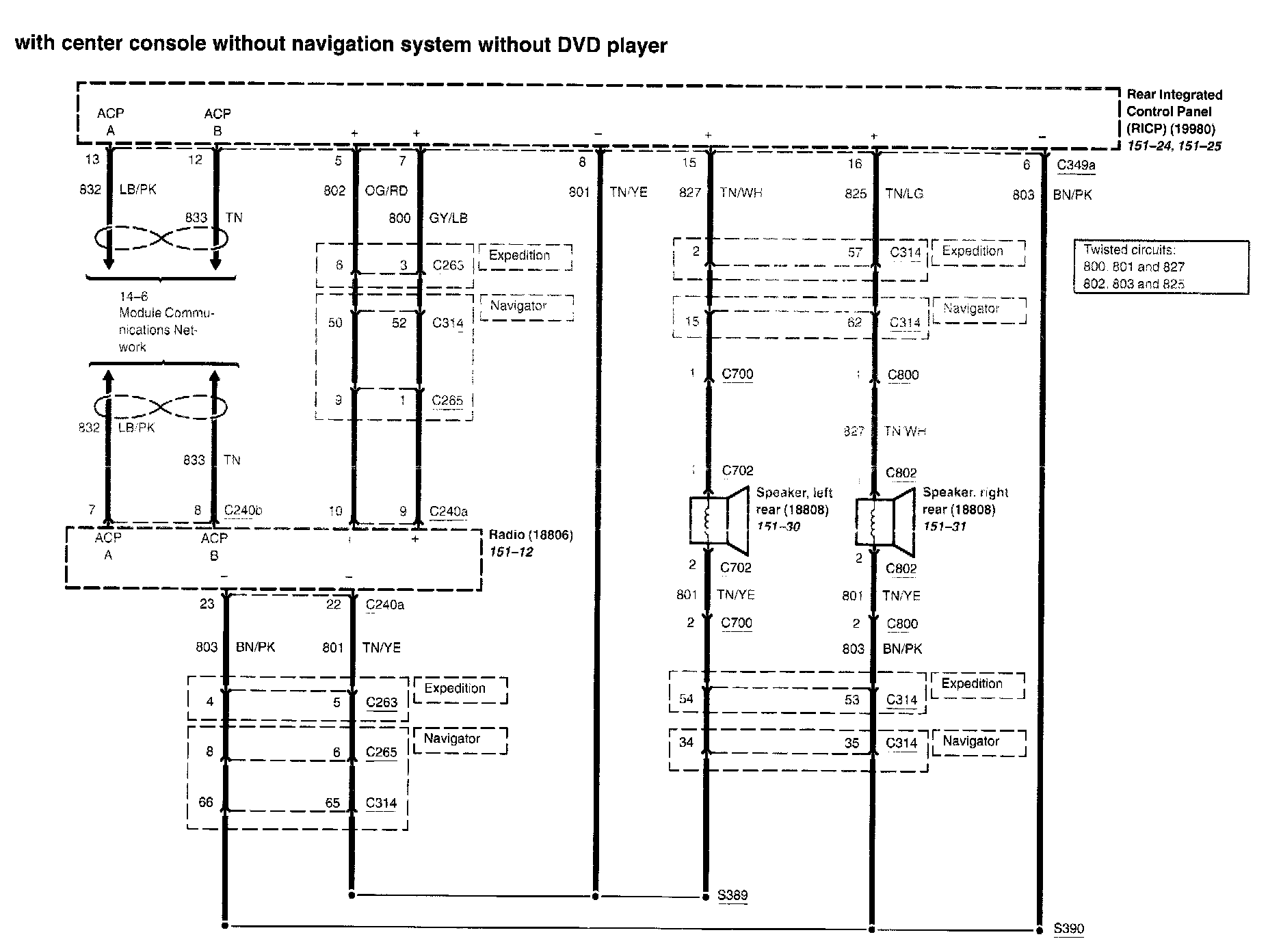

130-16:

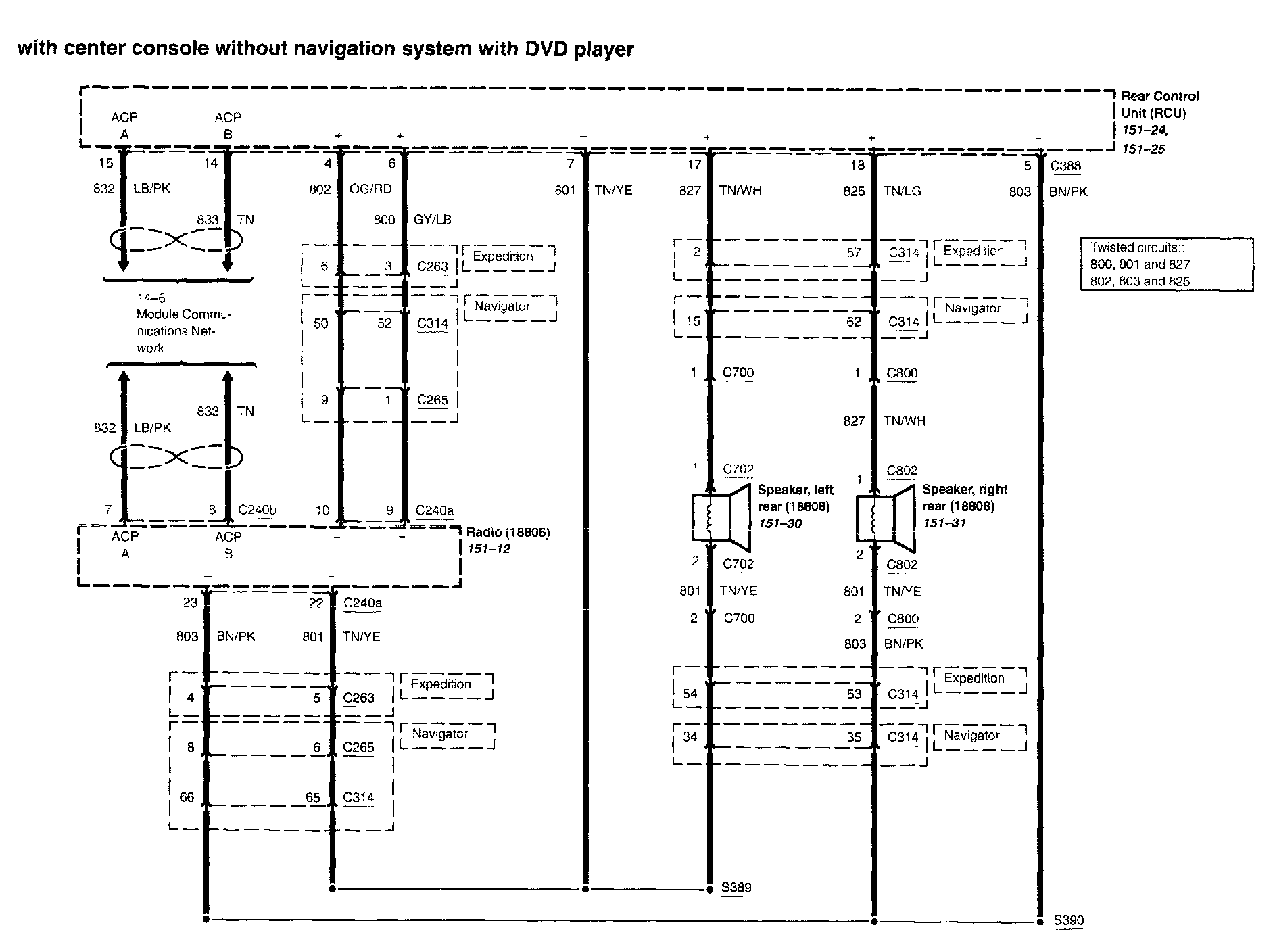

130-17:

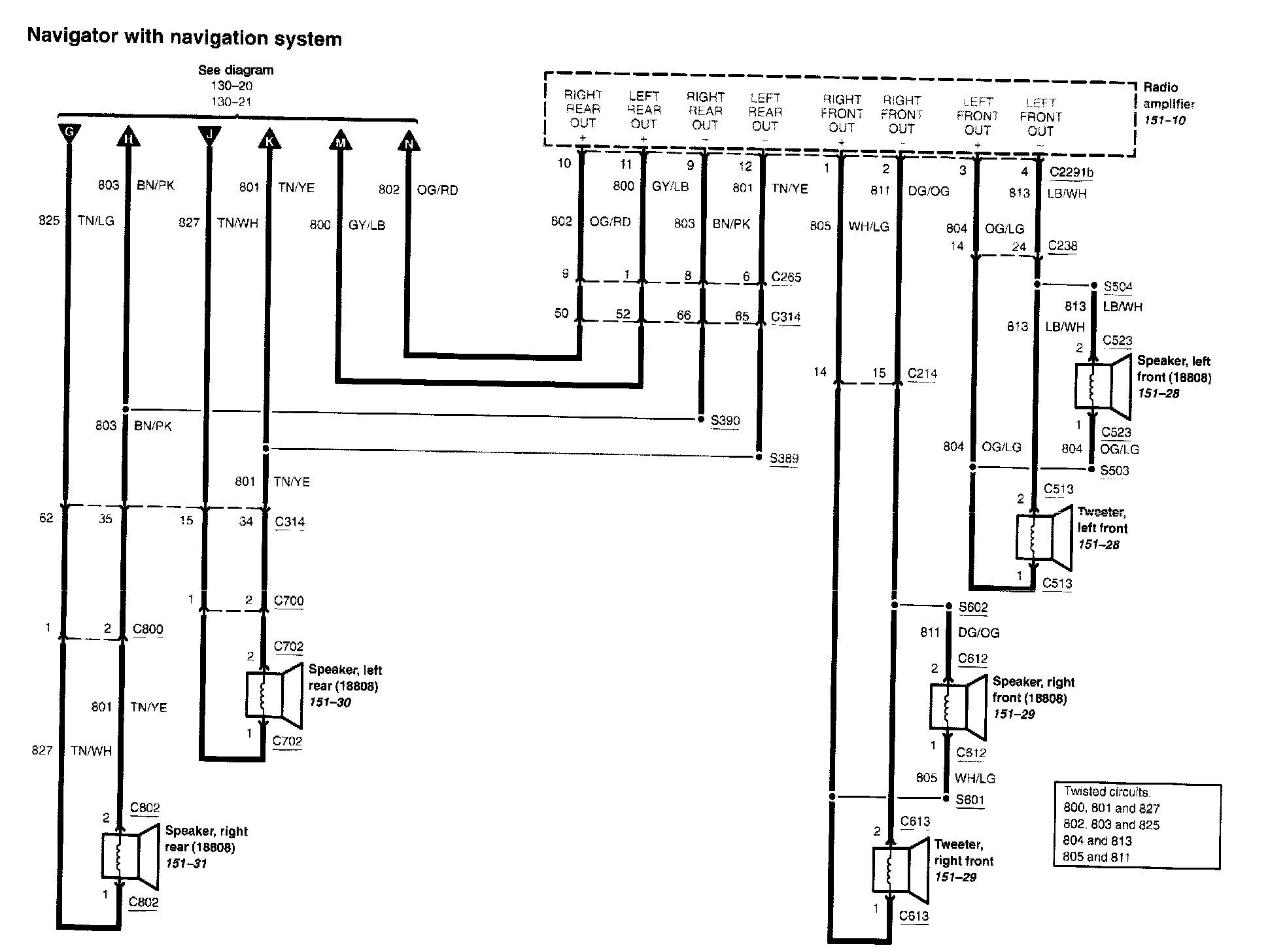

130-18:

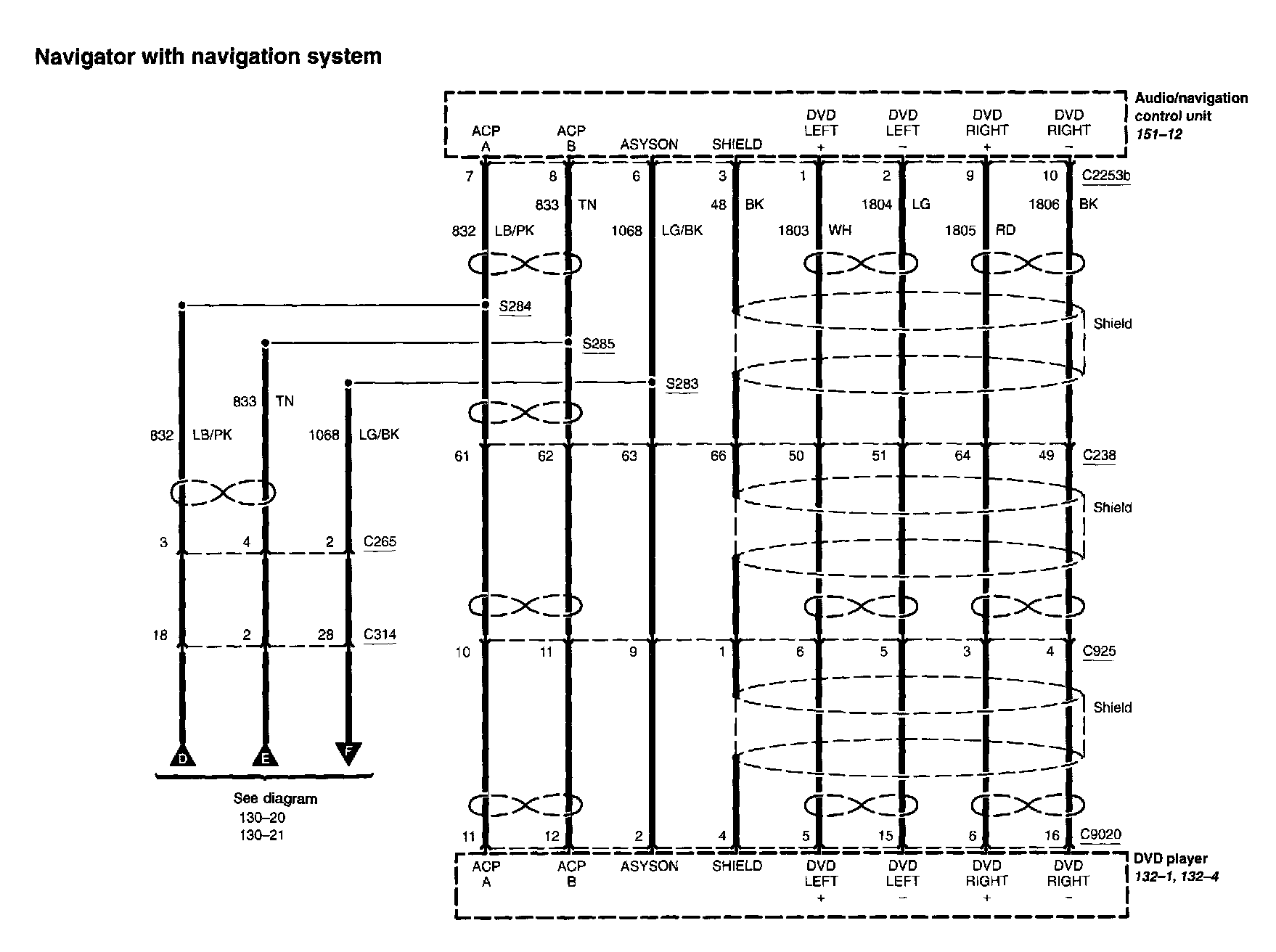

130-19:

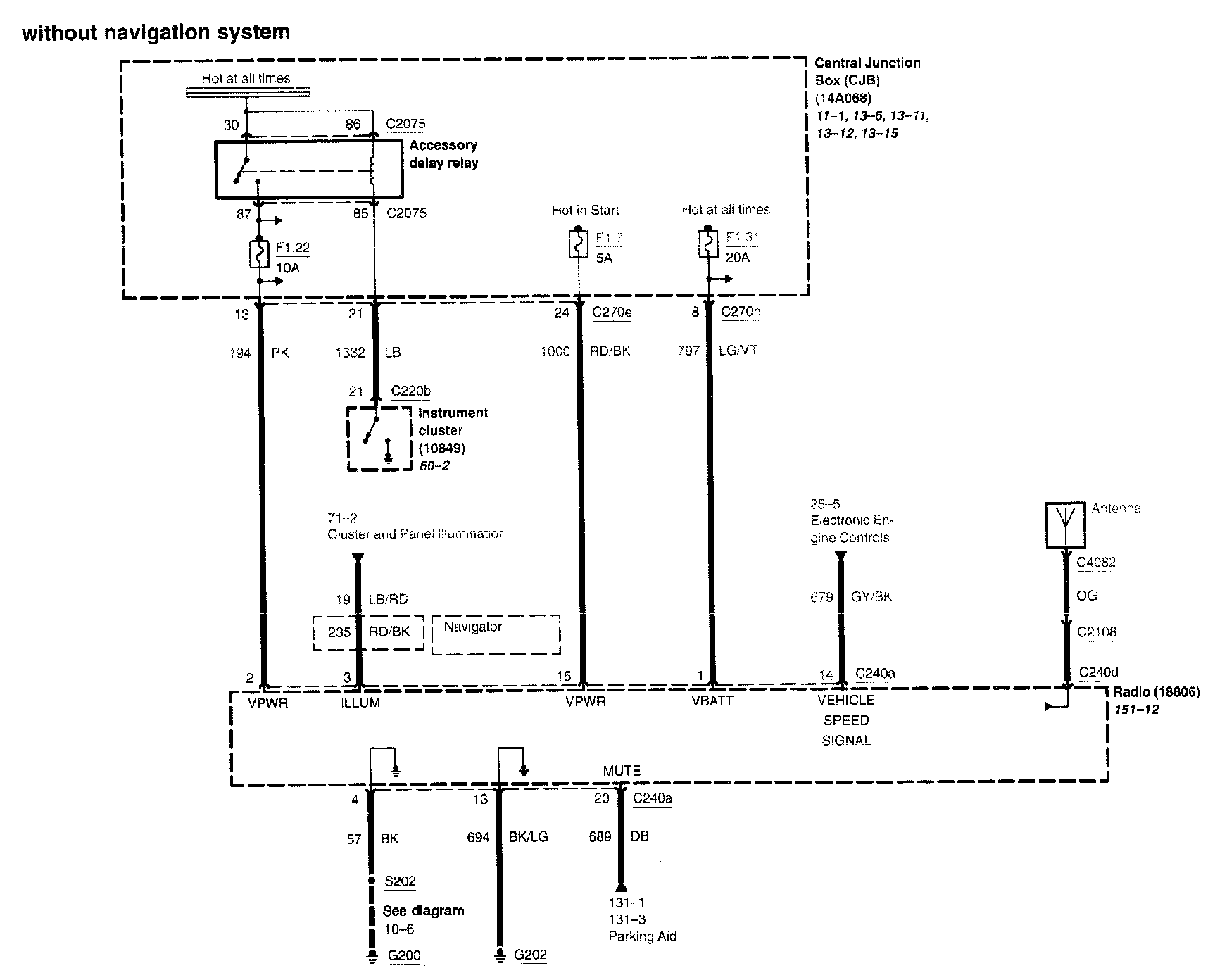

130-20:

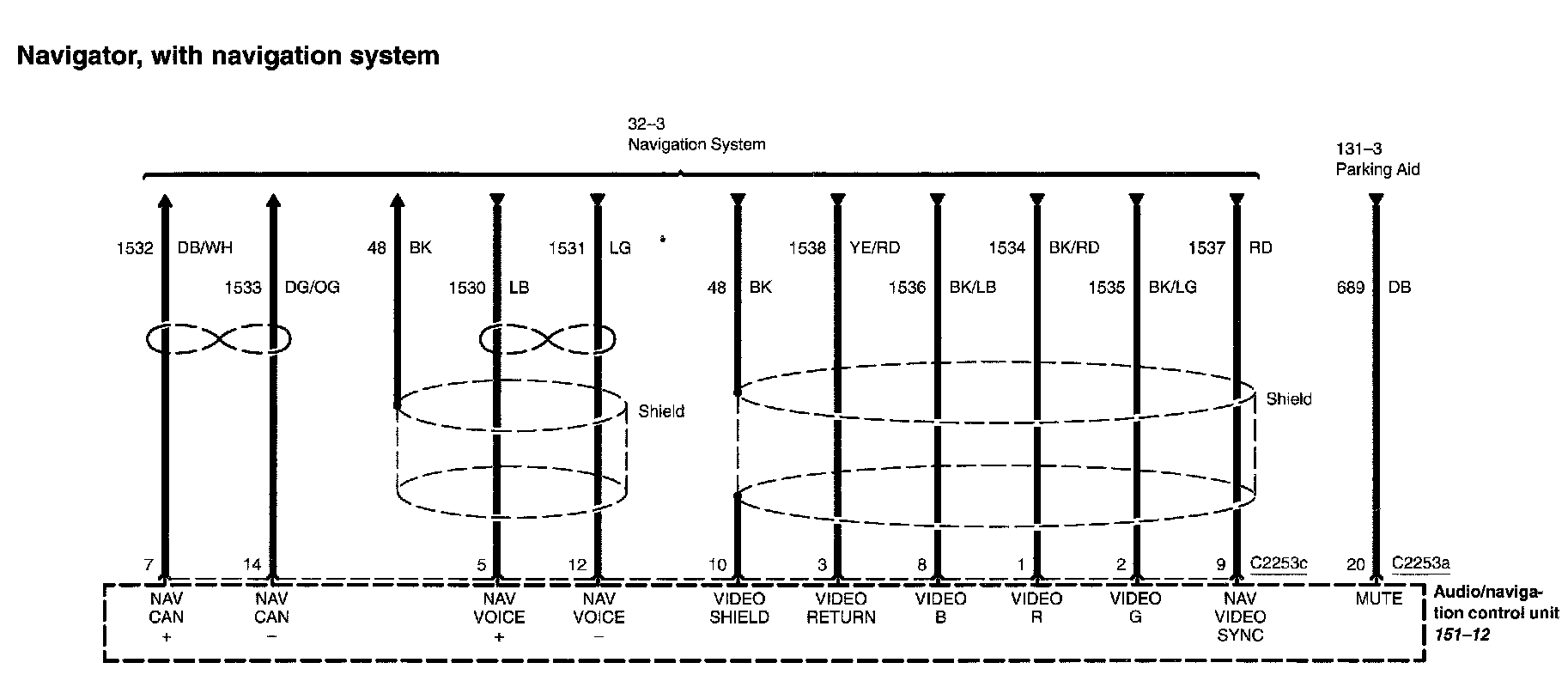

130-21:

130-22:

130-23:

Diagrams: Other diagrams referred to by number (See Diagram ##-#, etc.) within these diagrams can be found at Diagrams By Number. Diagrams By Number

Locations: Location Views (reference numbers starting with 151-) referred to within these diagrams can be found at Component Location Views. Component Location Views
