Vehicle Certification (VC) Label

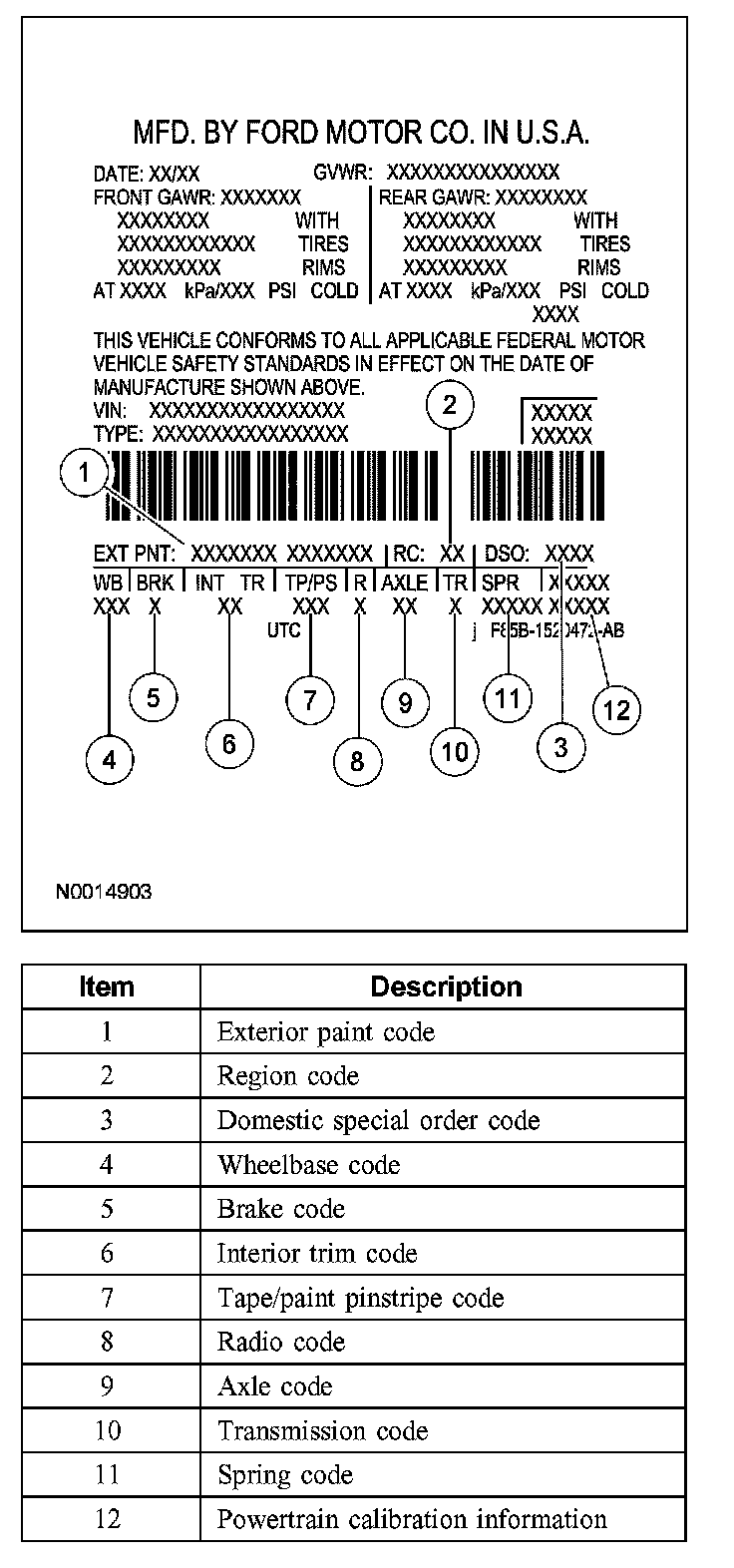

VEHICLE CERTIFICATION (VC) LABEL

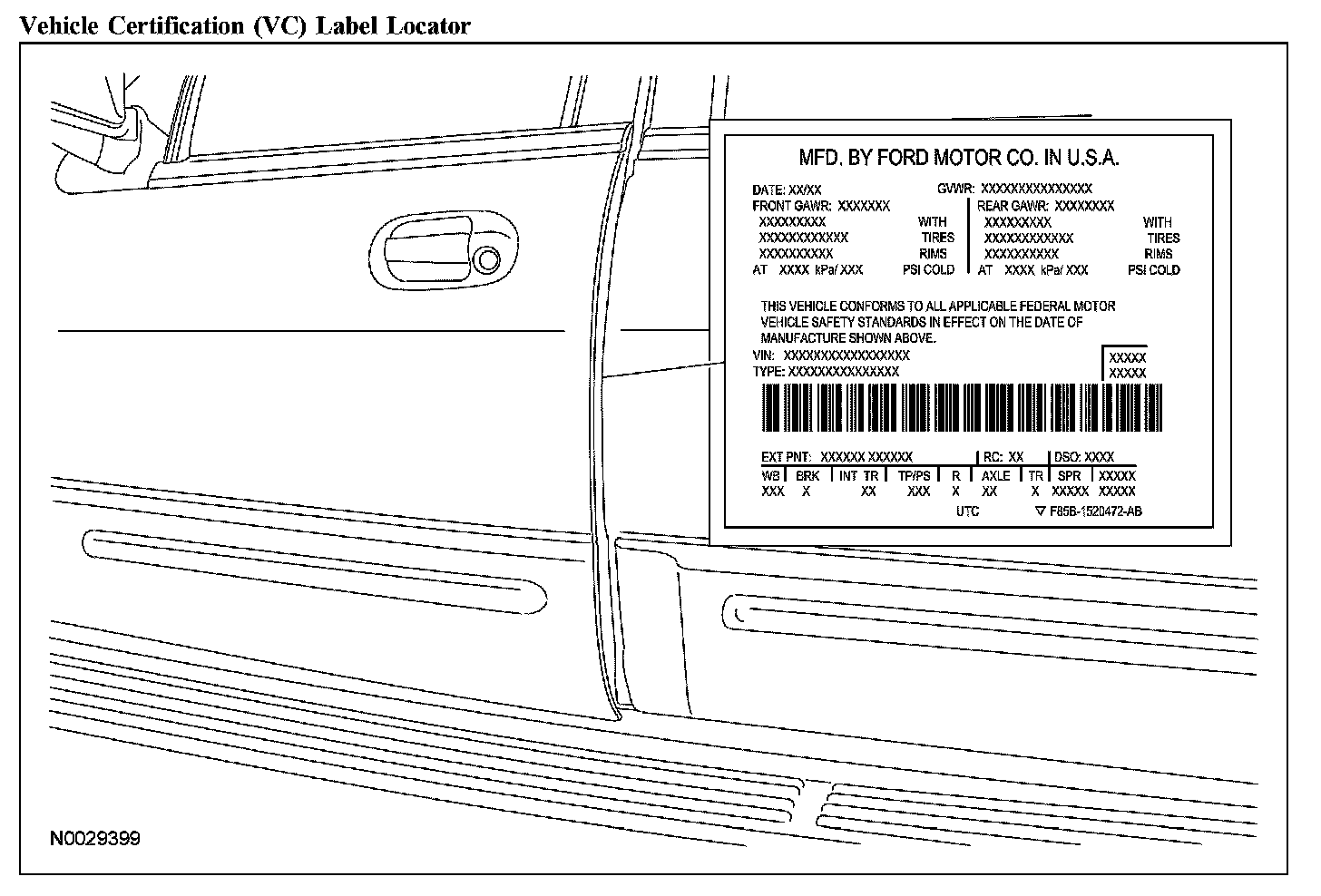

Vehicle Certification (VC) Label Locator:

The vehicle certification (VC) label contains the manufacturer name, the month and year of manufacture, the certification statement and the VIN. It also includes gross vehicle weight ratings (GVWR).

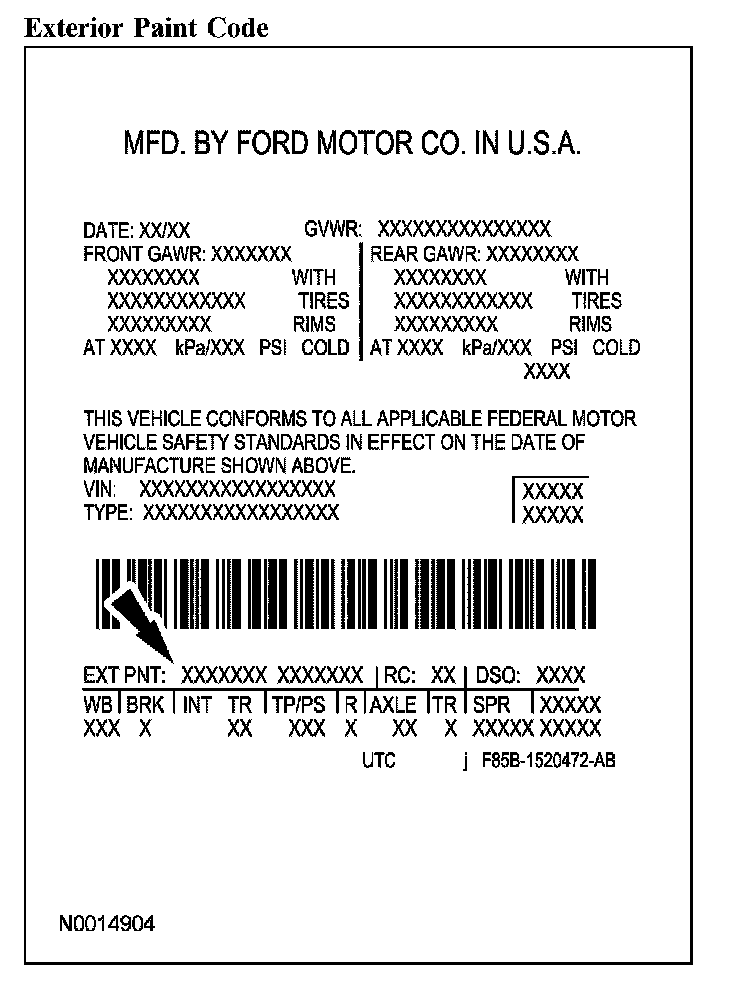

Exterior Paint Code:

Paint codes may be listed as a 2-part code. The first set of characters listed indicate the vehicle primary body color. The second set of characters listed (if applicable) indicate a 2-tone or accent body color. All colors are base coat/clear coat.
- DV - Light Tundra/Titanium Green
- G2 - Redfire
- G3 - Pueblo Gold
- G4 - Cashmir (tri-coat)
- HJ - Pewter Metallic
- JP - Silver Birch Metallic
- LD - Medium Wedgewood Blue
- T5 - Dark Copper
- T7 - Charcoal Beige
- UA - Ebony
- YZ - Oxford White

Wheelbase:

- 119 - 119-inch (3,023-mm) wheelbase

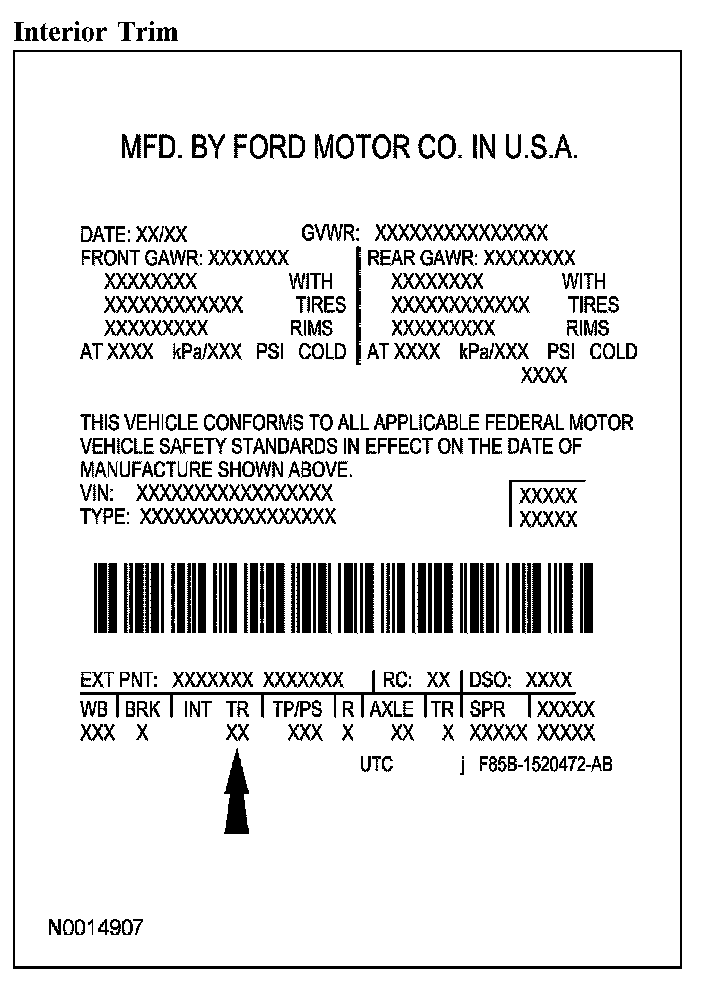

Interior Trim:

Interior trim codes are listed as a 2-part code. The first character identifies the trim type. The second character identifies the interior trim color.

Trim Type
- 1 - Milled Pebble/Toscana leather captain's chairs
- 1 - Milled Pebble/Imola leather captain's chairs
- 1 - Aniline cloth captain's chairs
- 2 - Milled Pebble/Imola low-back bucket seats
- F - Port cloth captain's chairs
- K - Milled Pebble/Imola leather captain's chairs
- M - Cloth - 60/40 front (split bench)

Interior Trim Color
- C - Camel Tan
- D - Dove Gray
- E - Medium Flint
- H - Medium Parchment
- W - Charcoal Black

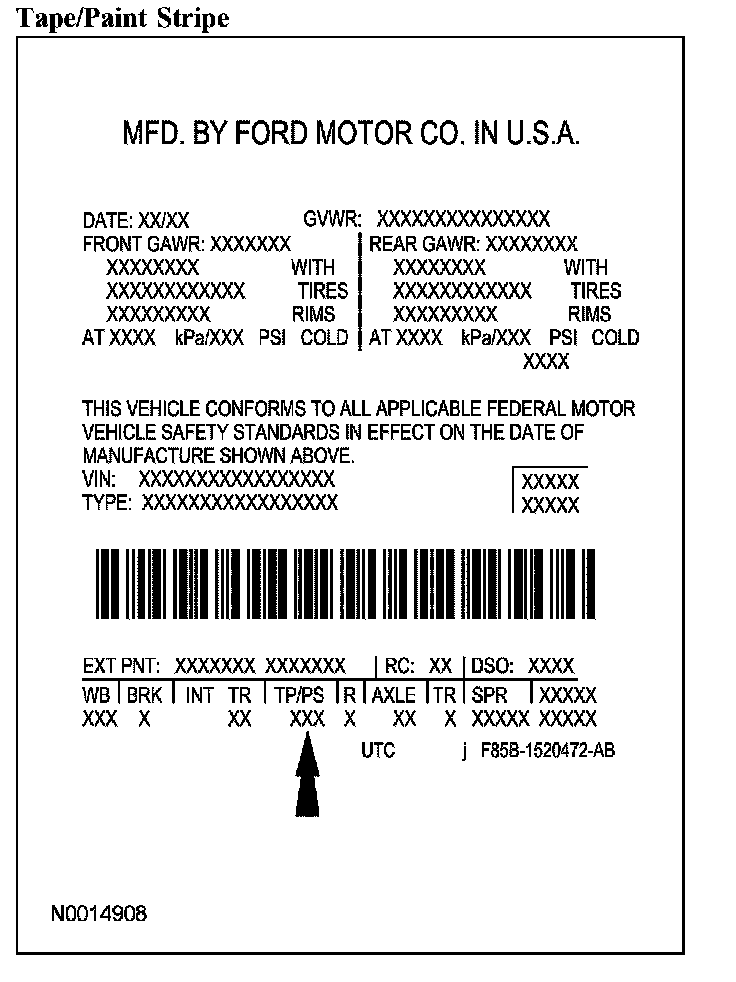

Tape/Paint Stripe:

Tape and paint stripe codes do not apply.

Radio Type:

- 1 - AM/FM stereo with in-dash compact disc (CD) changer and clock
- F - AM/FM stereo with compact disc (CD) player, navigation system and clock
- K - Premium electronic AM/FM stereo with compact disc (CD), cassette player and clock
- T - Premium AM/FM stereo with in-dash compact disc (CD) changer and clock
- X - AM/FM stereo with 6-disc, in-dash compact disc (CD) changer and navigation system

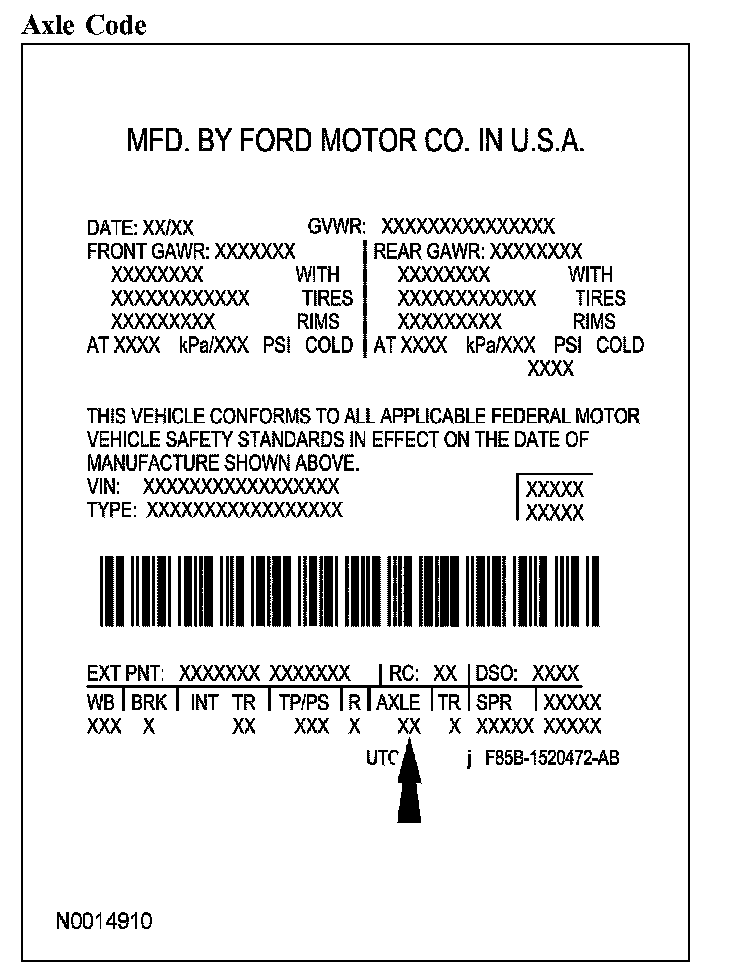

Axle Code:

- 15 - 3.31 final drive ratio
- 16 - 3.73 ratio, non-limited slip
- H6 - 3.73 ratio, limited slip

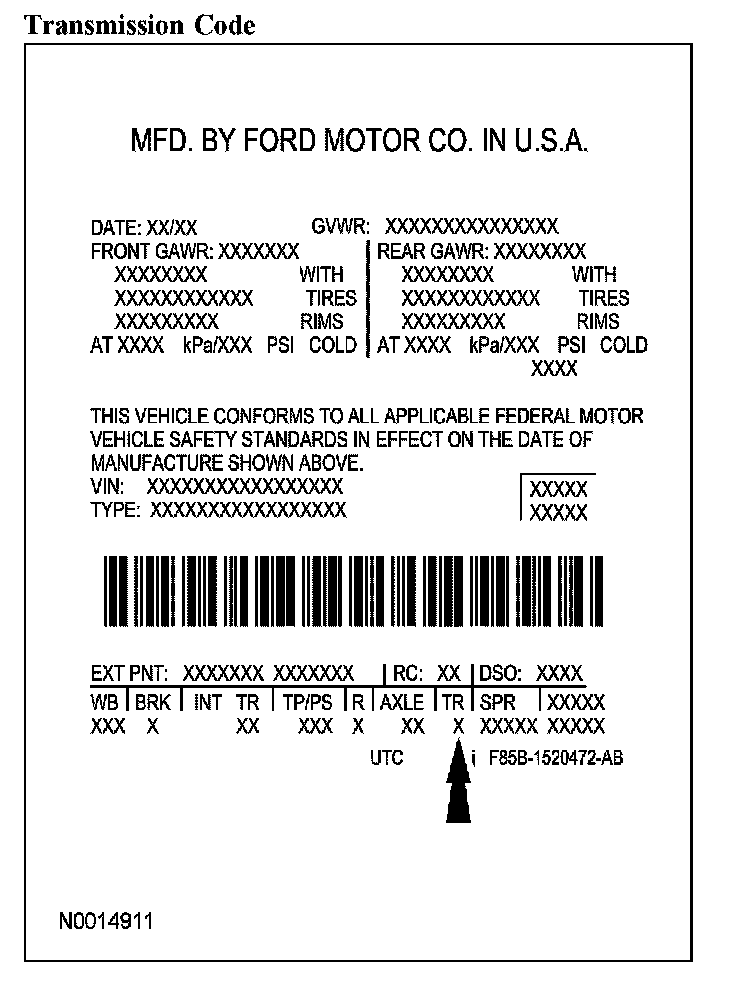

Transmission Code:

- G - 6-speed automatic (ZF 6HP26)
- Q - 4-speed automatic (4R75E)

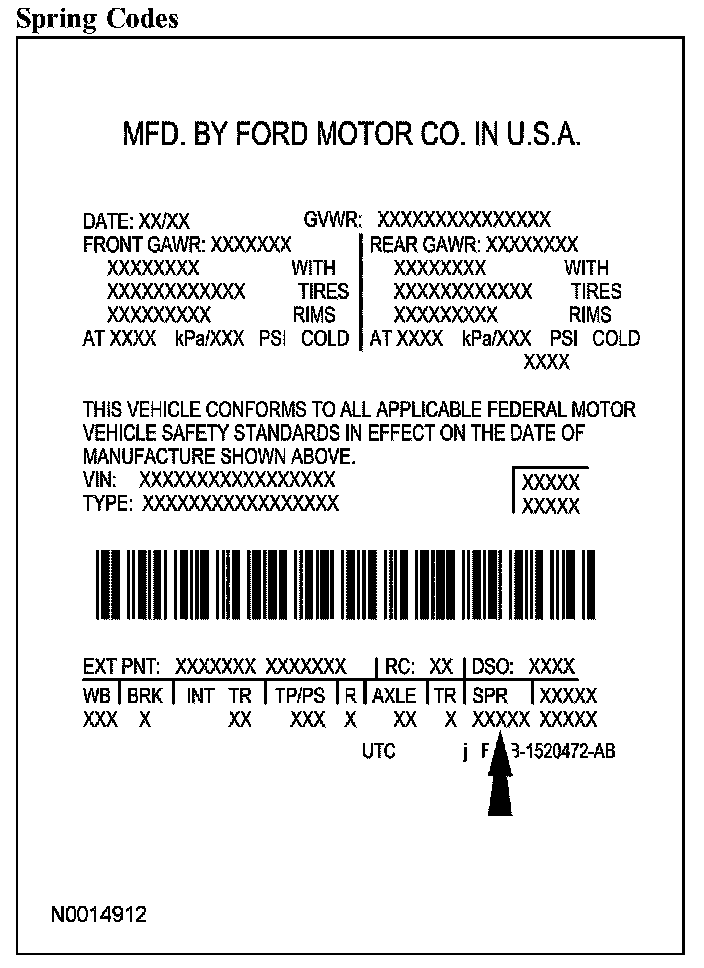

Spring Codes:

Spring codes are listed as a 2-part code. The first character listed identifies the front spring code. The second character listed identifies the rear spring code

Air Suspension
- P - 4-corner auto adjustable air suspension

Front Springs
- AA - 5L14-3C098-AB
- BB - 5L14-3C098-BB
- CC - 3L1J-18B036-AA
- DD - 5L74-3C098-AC
- FF - 3L14-18B036-BA
- HH - 3L14-18B036-DA

Rear Springs
- 11 - 4L14-18W002-AA
- 33 - 5L14-5A965-BB
- 44 - 5L14-5A965-AB
- 55 - 4L1J-18W002-AA
- 66 - 5L74-5A965-AB

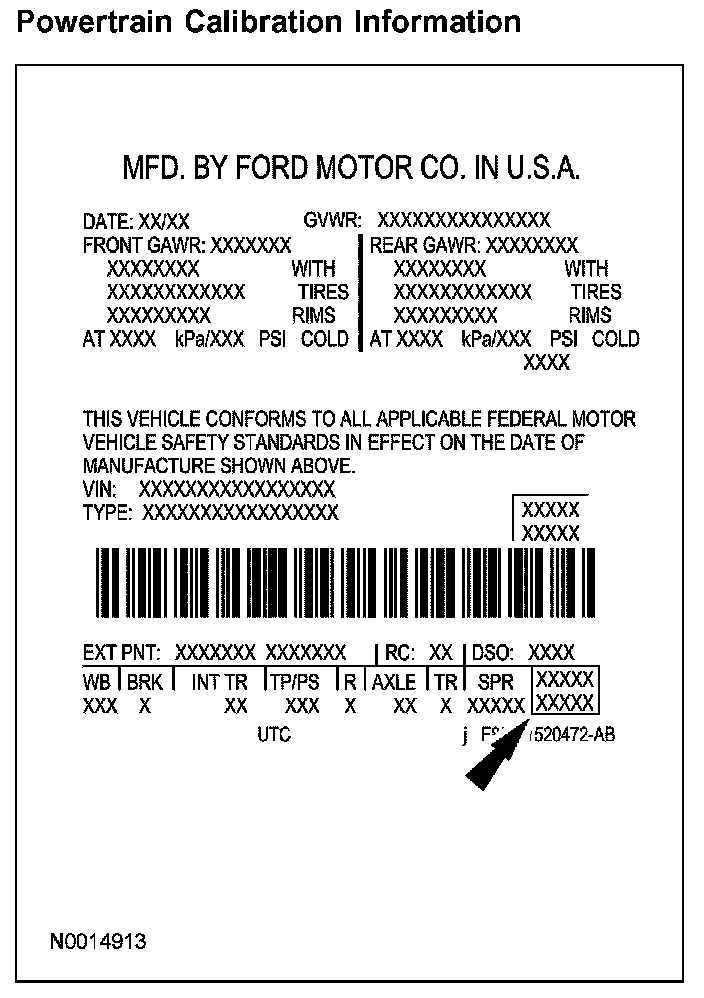

Powertrain Calibration Information:

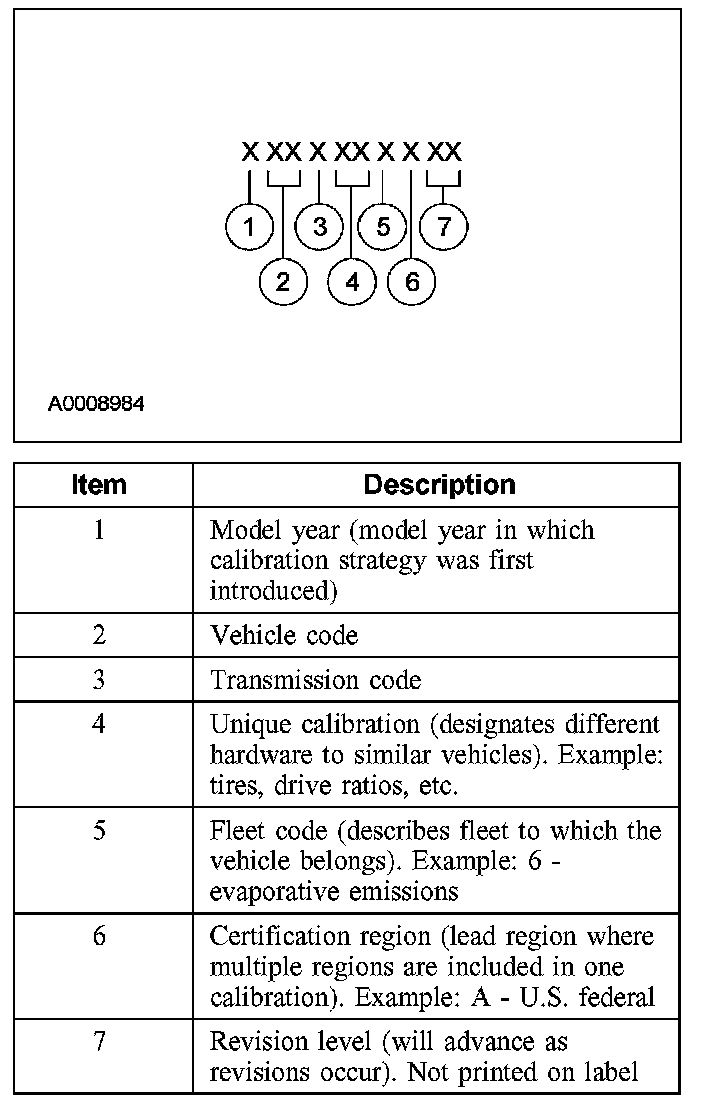

Powertrain Calibration Information

NOTE: Powertrain calibration information is limited to a maximum of 5 characters per line on the Vehicle Certification (VC) label. Because of this, calibration identification consisting of more than 5 characters will wrap to the second line on the VC label.

Powertrain calibration information is printed in the lower right corner of the VC label. Only the base calibration information is printed. Revision levels will not appear, however, they can be found in On Line Automotive Service Information System (OASIS).

Model Year
- 0 - 2000
- 1 - 2001
- 2 - 2002
- 3 - 2003
- 4 - 2004
- 5 - 2005
- 6 - 2006

Vehicle Line
- TB7 - Expedition
- TB5 - Navigator

Transmission
- 1 - Automatic transmission

Unique Calibration
The Emissions/-CAFE/CO2 Compliance Department is responsible for assigning these calibration numbers. Unique calibration identifications are assigned to cover similar vehicles to differentiate between tires, drive configurations, final drive ratios and other calibration-significant factors.

These 2 characters are chosen by the analyst to provide identifiable information unique to each calibration. For example, using the number 2 to denote a 2-valve engine versus using the number 4 to denote a 4-valve engine provides an easily identifiable difference.

Fleet Code
- 1 - HDGE/Dyno
- 2 - Fast AMA, U.S.
- 3 - ADP, U.S.
- 4 - Not assigned
- 5 - Not assigned
- 6 - Evaporative emissions
- 7 - MACAA
- 8 - On-board diagnostics (OBD)
- 9 - Not assigned

Certification Region
- Where multiple regions are included in one calibration, only the lead region will appear.
- 5 - U.S. 50 states
- A - U.S. Federal, including altitude, may include Canada and/or Mexico
- B - U.S. California Standard, includes U.S. green states
- C - Canada
- D - China
- E - European Community (Austria, Belgium, Denmark, Finland, France, Germany, Greece, Ireland, Italy, Luxembourg, Netherlands, Portugal, Spain, Sweden and United Kingdom)
- F - Extended European Community (E plus Croatia, Czech Republic, Estonia, Hungary, Norway, Poland, Romania, Russian Federation, Slovakia, Slovenia, Switzerland and Yugoslavia)
- G - Gulf Cooperative Council (Bahrain, Kuwait, Oman, Qatar, Saudi Arabia and UAE)
- H - Hong Kong
- J - Japan
- K - Korea
- L - Malaysia
- M - Mexico
- N - New Zealand
- P - Australia
- Q - South America (Brazil)
- S - Singapore
- T - Taiwan
- U - South America (unleaded fuel regions)
- V - Vietnam
- X - ROW (rest of world)
- Y - Military
- Z - Israel

Revision Level (not printed on label)
- 91-99 - Hardware certification levels
- 01-04 - Preliminary levels
- 00 - Job 1 production (initial calibration)
- 05-09 - Pre-job 1 revisions to calibrations
- 10-89 - Post-job 1 revisions to calibrations
- 0B - Durability test level
- BD - On-board diagnostics (OBD) intermediate level (pre-05)
