Front Fender: Service and Repair

FENDER - NAVIGATOR

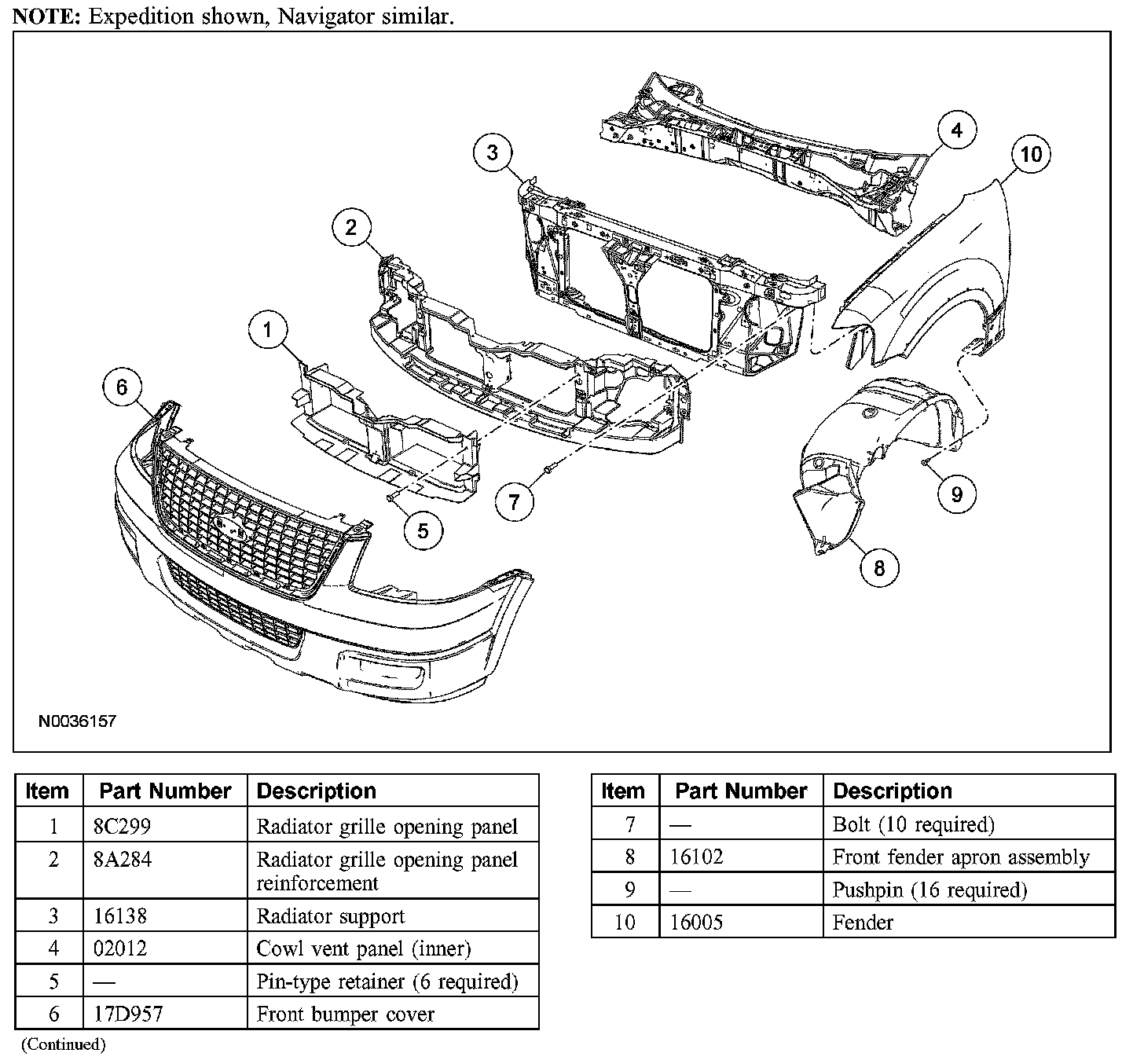

Exploded View

Removal and Installation

NOTE: Left side shown, right side similar.

Vehicles with power running boards







1. Remove the lower fender moulding.

Vehicles without power running boards

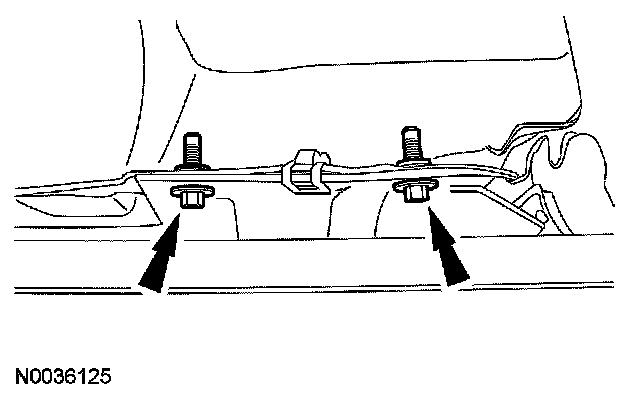

2. Lower the running board.
- Remove the front and middle running board retainer bolts from the body.
- To install, tighten to 25 Nm (18 lb-ft).

All vehicles

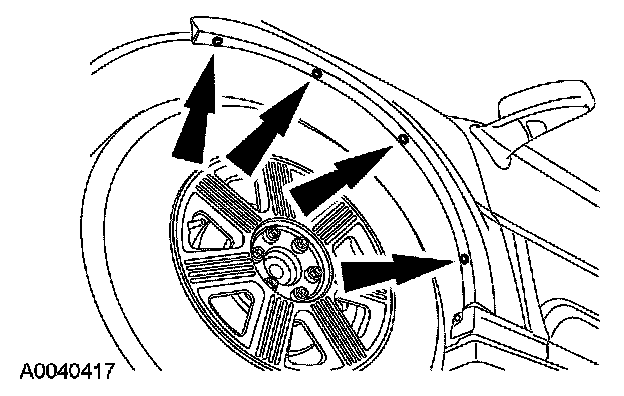

3. Remove the front fender splash shield screws.







4. Remove the 2 front fender-to-front bumper cover bolts.
- To install, tighten to 8 Nm (71 lb-in).







5. Remove the 2 front fender lower bolts.
- To install, tighten to 12 Nm (9 lb-ft).

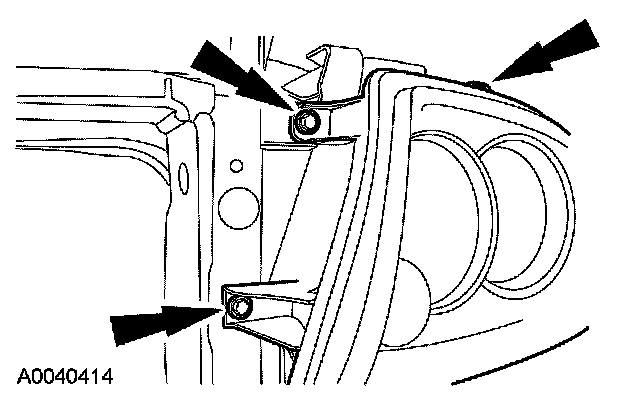

6. Remove the headlight.
- Remove the bolts and disconnect the electrical connectors.

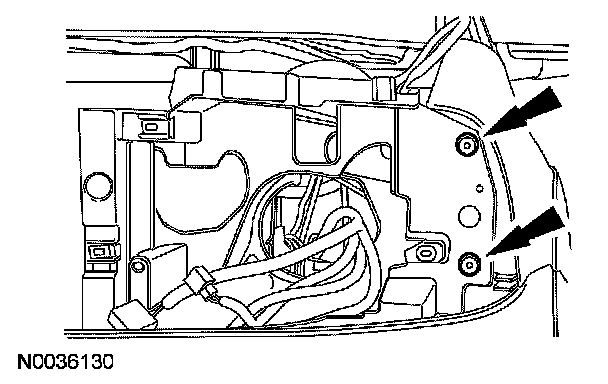

7. Remove the 2 front fender front bolts.
- To install, tighten to 8 Nm (71 lb-in).

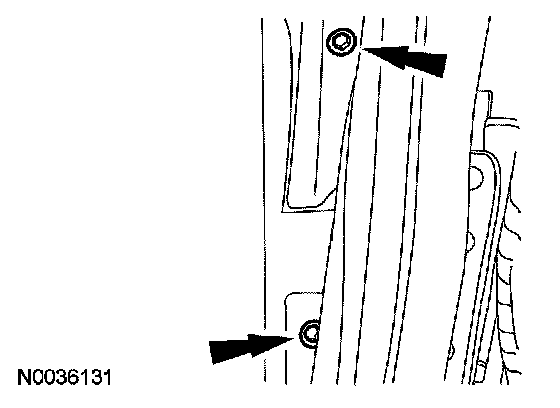

8. Remove the 2 front fender inner bolts.
- To install, tighten to 12 Nm (9 lb-ft).

9. Remove the cowl panel grille.

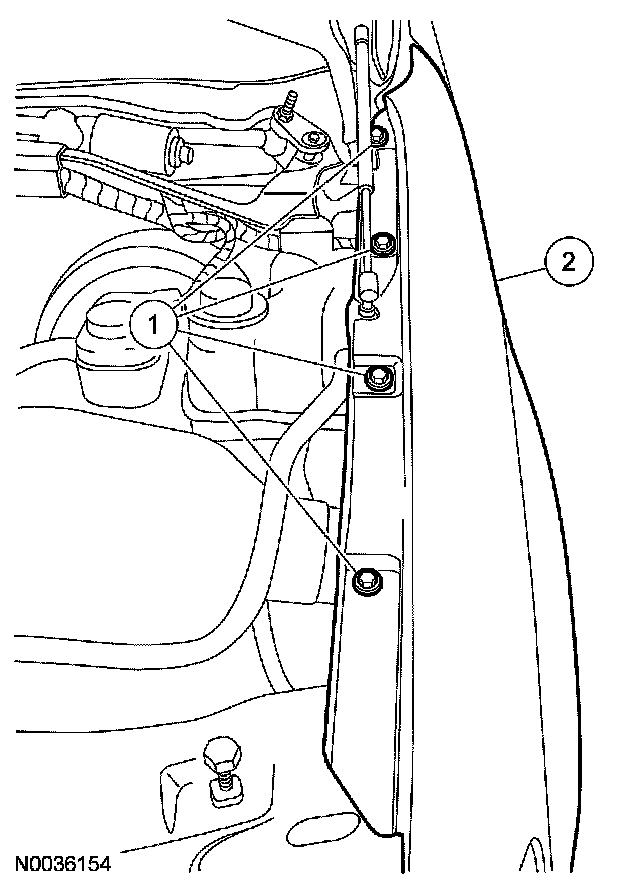

10. Remove the front fender.
1 Remove the 4 bolts.
2 Remove the front fender.
- To install, tighten to 12 Nm (9 lb-ft).

11. To install, reverse the removal procedure.
