A/C - Climate Controlled Seats DTC B272C or B272D: Overview
TSB 06-13-607/10/06
DTC B272-C/D FOR THE DUAL CLIMATE CONTROL SEAT MODULE
FORD:
2005-2006 Expedition
LINCOLN:
2005-2006 Navigator
This article supersedes TSB 05-14-10 to update the Service Procedure.
ISSUE
Some 2005-2006 Expedition and Navigator vehicles built prior to 03/26/2006 may exhibit concerns with the climate controlled seat (CCS) system with diagnostic trouble codes (DTCs) B272C (Driver Differential Temperature Fault) and/or DTC B272D (Passenger Differential Temperature Fault), with or without additional DTCs. These two DTCs may be triggered by various sources, making them difficult to diagnose.
ACTION
Refer to the following Service Procedure to isolate the cause of these DTCs. If DTC B272C and/or B272D are not present, follow normal Workshop Manual (WSM) diagnostics.

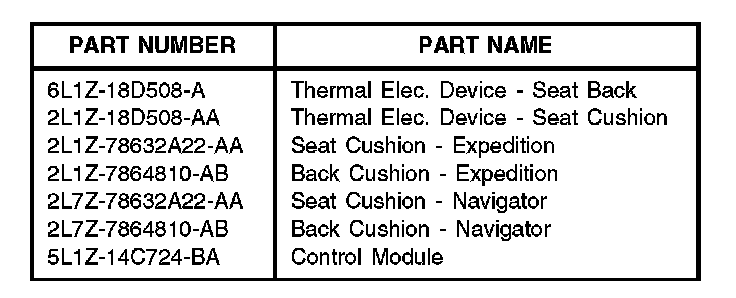

Parts Block
WARRANTY STATUS: Eligible Under Provisions Of New Vehicle Limited Warranty Coverage
OPERATION DESCRIPTION TIME
MT061306 Claim Labor As Actual Actual
Time Time
DEALER CODING
CONDITION
BASIC PART NO. CODE
14C724 42
