Front Seat - 40 Percent

FRONT SEAT - 40 PERCENT







Removal

WARNING:
- Always wear safety glasses when repairing an air bag supplemental restraint system (SRS) vehicle and when handling an air bag module. This will reduce the risk of injury in the event of an accidental deployment.
- The safety belt pretensioner is a pyrotechnic device. Always wear safety glasses when repairing an air bag equipped vehicle and when handling a safety belt buckle pretensioner or safety belt retractor pretensioner. Never probe a pretensioner electrical connector. Doing so could result in pretensioner or air bag deployment and could result in personal injury.
- To reduce the risk of personal injury, do not use any memory saver devices.

NOTE:
- If a seat equipped with a supplemental restraint system (SRS) component is being serviced, the SRS must be depowered.
- The air bag warning lamp illuminates when the RCM fuse is removed and the ignition switch is ON. This is normal operation and does not indicate a supplemental restraint system (SRS) fault.
- The SRS must be fully operational and free of faults before releasing the vehicle to the customer.

All seats

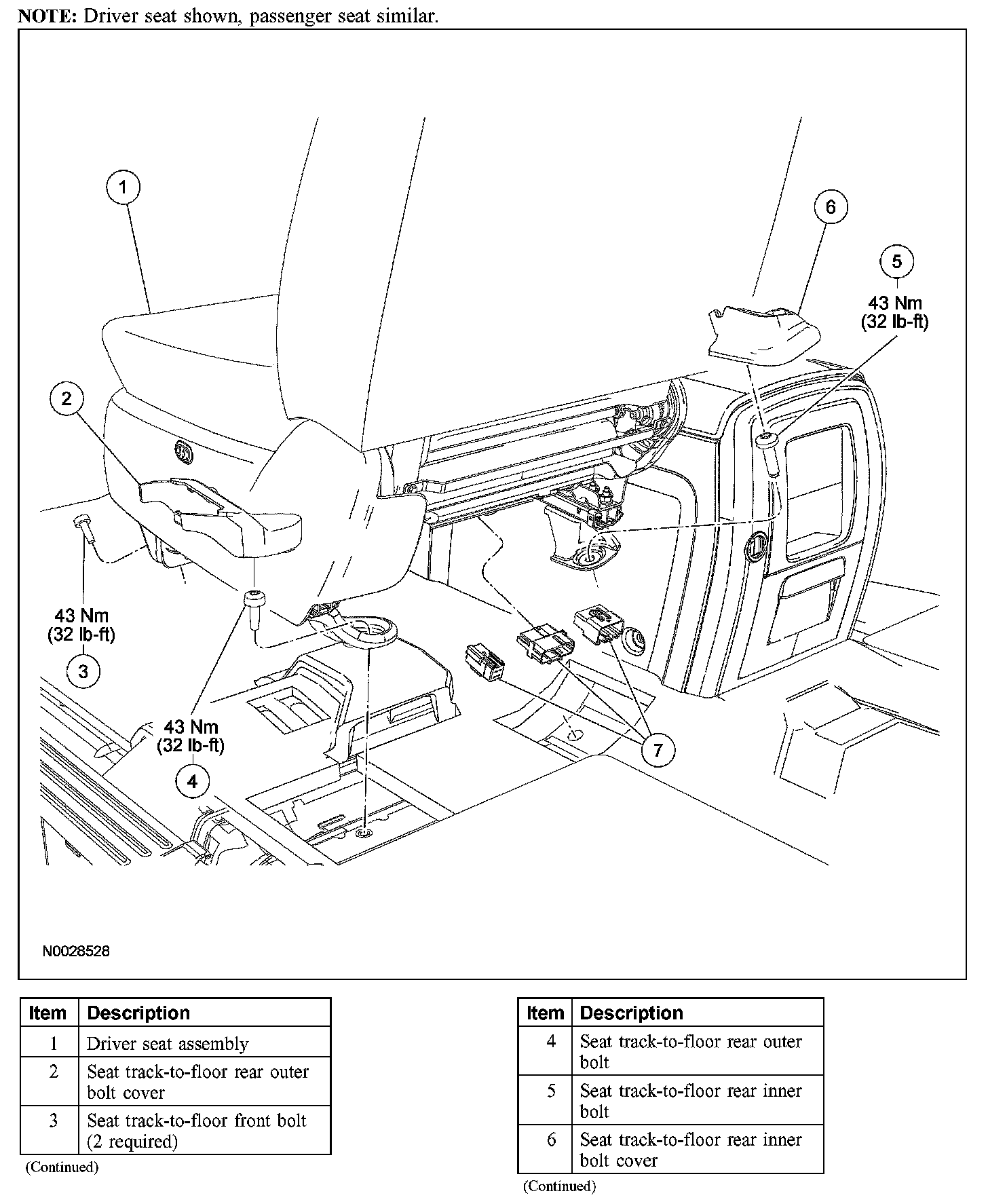

1. Position the seat to gain access to all seat track-to-floor fasteners.
2. Depower the SRS.
3. Remove the 2 seat track-to-floor front bolts.
4. Remove the seat track-to-floor rear inner and outer bolt covers, if equipped.
5. Remove the seat track-to-floor rear inner and outer bolts.
6. Separate the wire harness pin-type retainer from the under seat bracket.

Driver memory seats







7. NOTE: The seat is tipped back for clarity.

Release the 40-pin memory seat electrical connector.

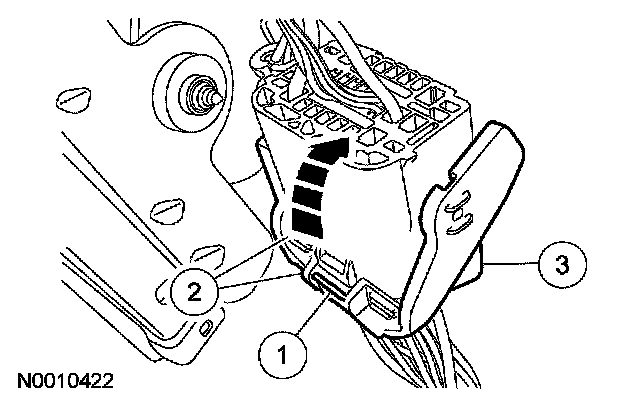

1 From under the electrical connector, push the release button in.
2 While holding the release button in, pivot the lever all the way back until it stops.







8. NOTE: Connector removed for clarity.

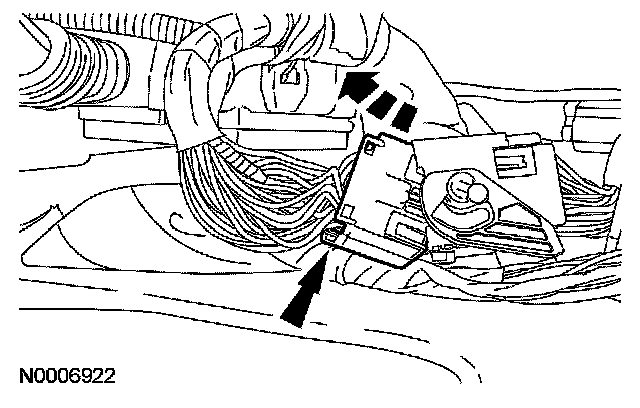

Disconnect the 40-pin seat electrical connector.
- Pivot the back of the seat electrical connector up and disconnect the electrical connector.

All seats







9. NOTE: The seat is tipped back for clarity.

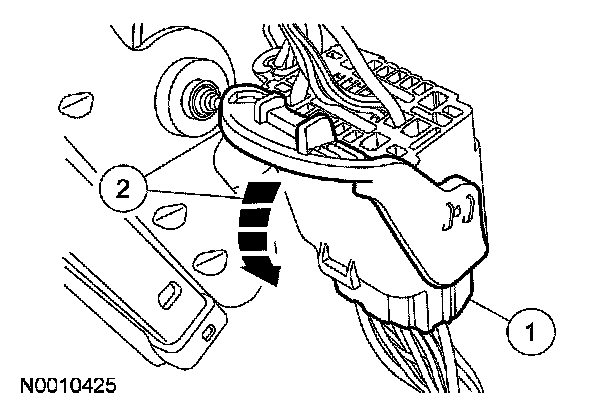

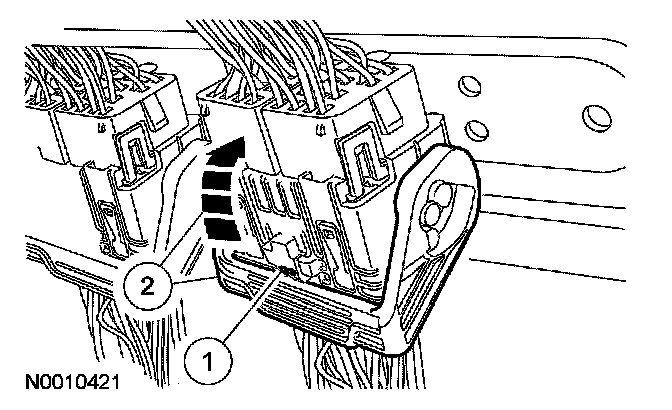

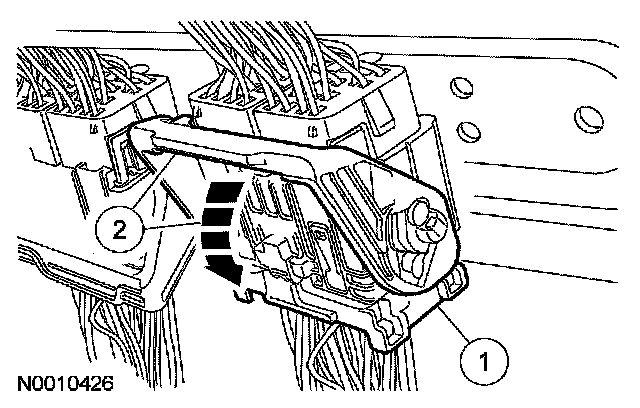

Disconnect the 30-pin seat electrical connector.
1 From under the electrical connector, squeeze the release tab.
2 While squeezing the release tab, pivot the lever all the way back until it stops.
- If after squeezing the release tab, the lever will not pivot back to disconnect, pivot the lever back to the LOCKED position. While holding the lever in the LOCKED position, with the release tab not in contact with its retainer, squeeze and release the tab and pivot the lever.

3 Disconnect the electrical connector.







10. NOTE: The seat is tipped back for clarity.

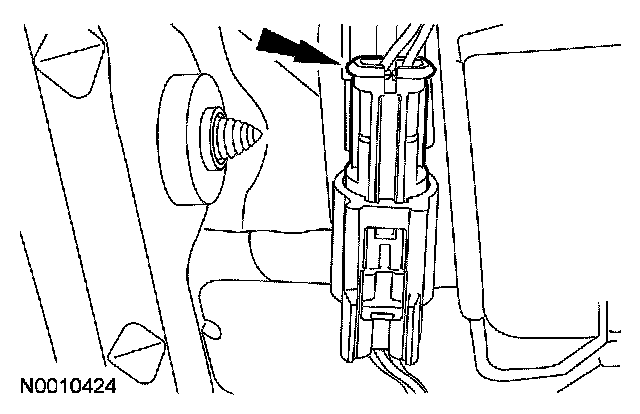

Disconnect the safety belt buckle pretensioner electrical connector.

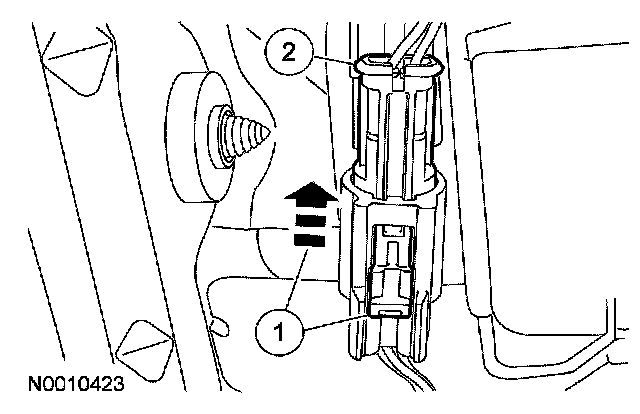

1 Slide the lock to the RELEASE position.
2 With the lock held in the RELEASE position, disconnect the electrical connector.

11. Remove the 40 percent seat from the vehicle.

Installation

All seats
1. Position the seat in the vehicle.







2. Align the connector ends and push together, connecting the safety belt buckle pretensioner electrical connector.







3. NOTE: Make sure the 30-pin seat electrical connector lever is in the full RELEASE position before attempting to connect the electrical connector.

Connect the 30-pin seat electrical connector.
1 Align the connector ends and push together without moving the lever.
- The tabs of one connector end must pass through the openings in the lever.

2 Pivot the lever to the LOCKED position, making sure the lever is locked in place.

Driver memory seats







4. NOTE: Make sure the 40-pin electrical connector lever is in the full RELEASE position before attempting to connect the electrical connector.

Connect the 40-pin memory seat electrical connector.
1 Align the electrical connector halves and push firmly together, snapping in place.
2 Pivot the lever to the LOCKED position, making sure the lever is locked in place.

All seats
5. Attach the vehicle wire harness pin-type retainer to the under seat bracket.

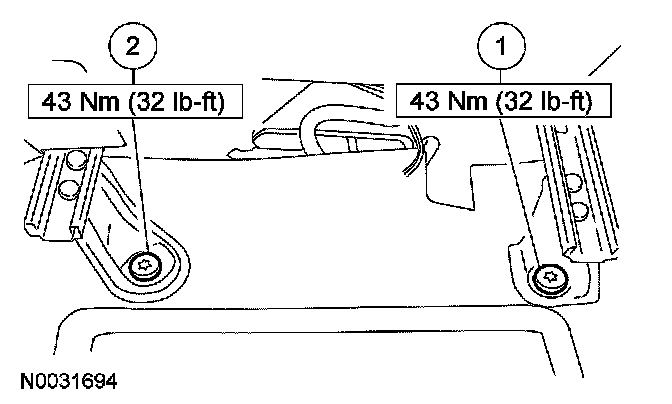

6. Install the rear seat track-to-floor bolts.
1 Install the seat track-to-floor rear inner bolt.
- Tighten to 43 Nm (32 lb-ft).

2 Install the seat track-to-floor rear outer bolt.
- Tighten to 43 Nm (32 lb-ft).

7. Install the 2 rear bolt covers.
8. Install the 2 front bolts.
- Tighten to 43 Nm (32 lb-ft).

9. Repower the SRS.
10. Make sure the safety belts and buckles are accessible to the occupants after installation.
