Seat - Exploded View, Third Row

SEAT - EXPLODED VIEW, THIRD ROW

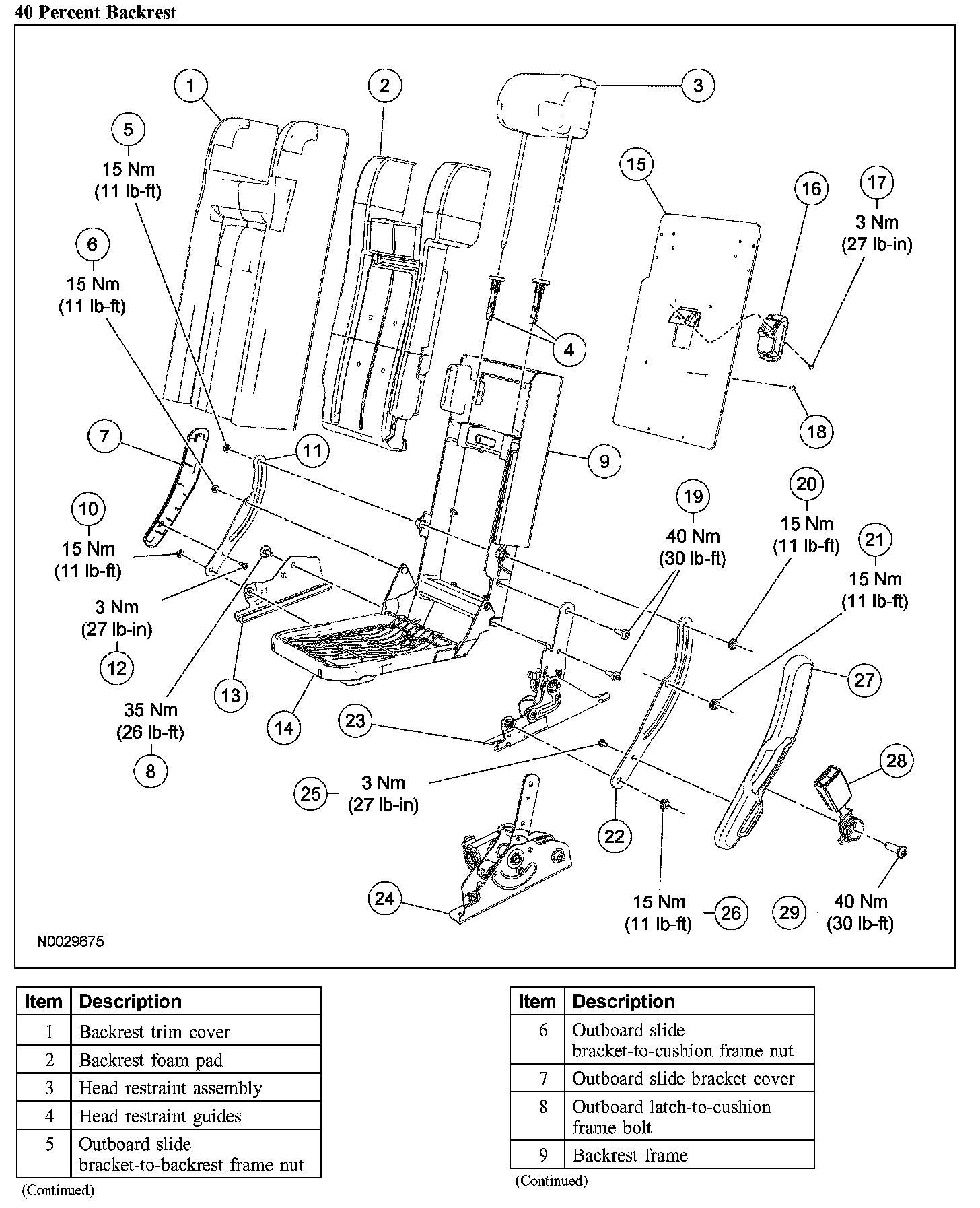

40 Percent Backrest (Part 1):

40 Percent Backrest (Part 2):

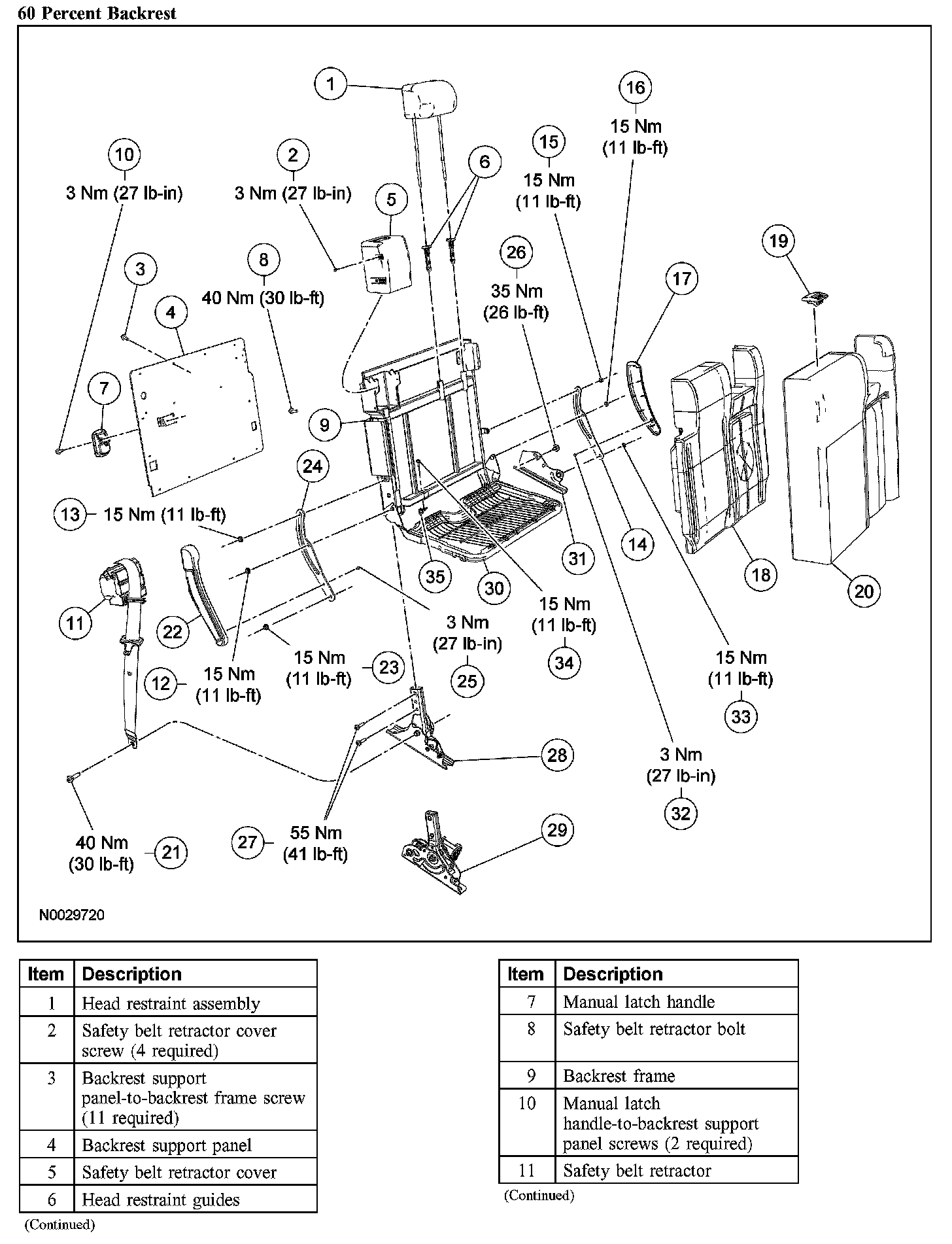

60 Percent Backrest (Part 1):

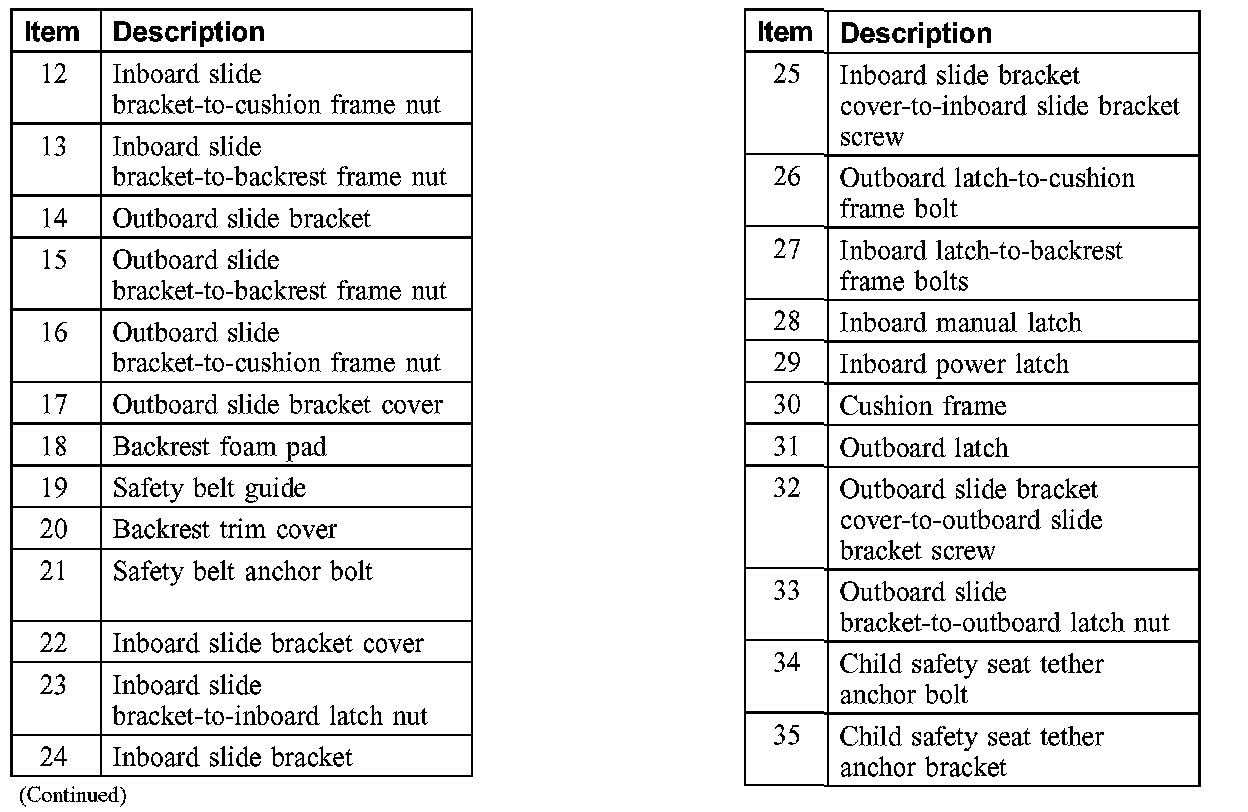

60 Percent Backrest (Part 2):

40 Percent Cushion:

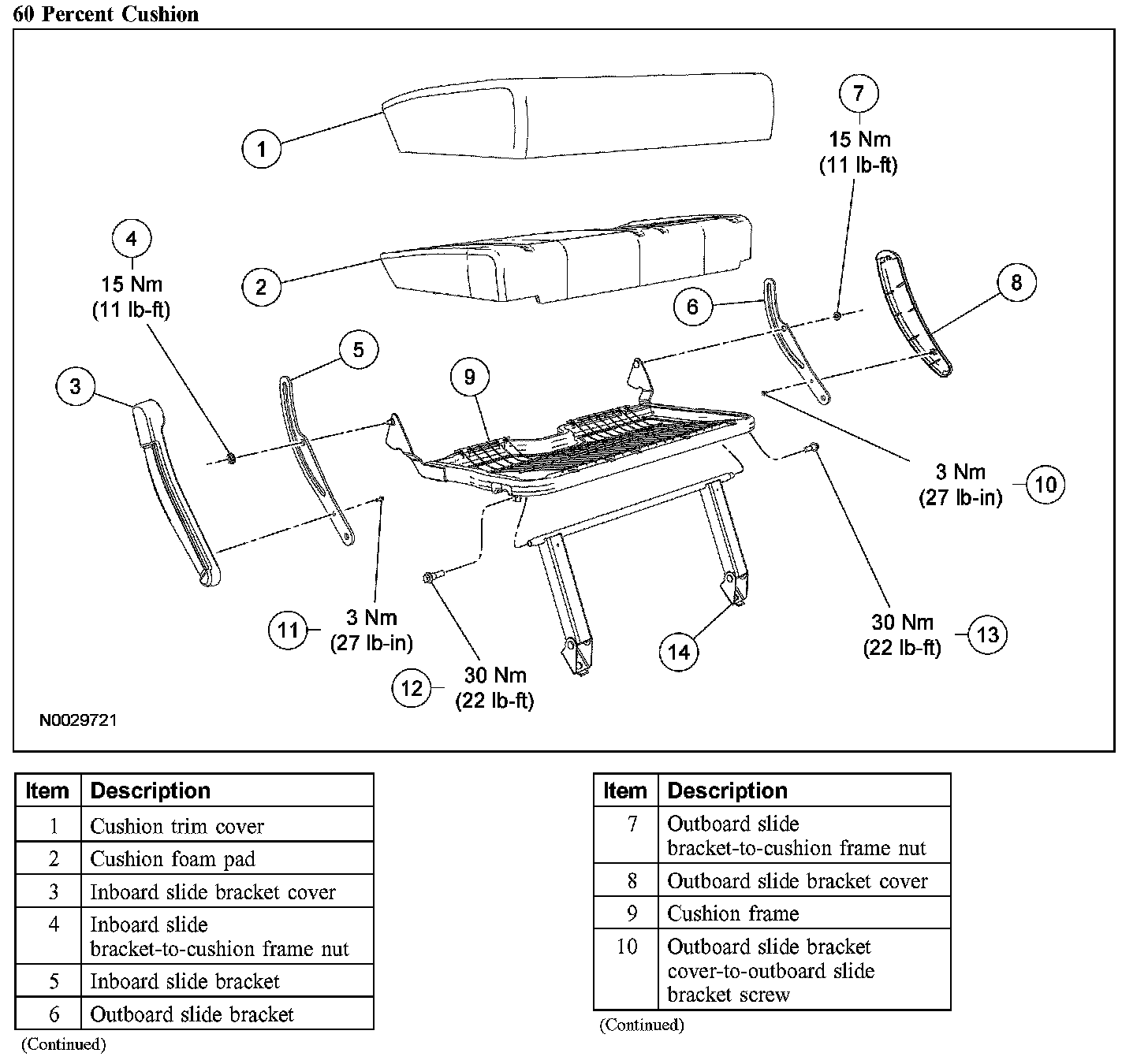

60 Percent Cushion (Part 1):

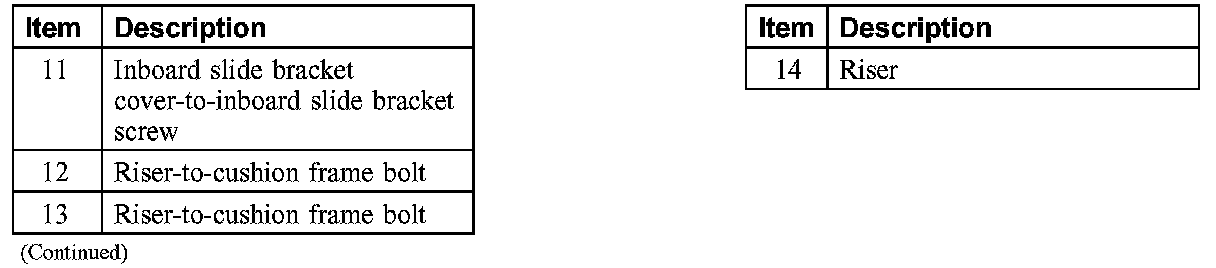

60 Percent Cushion (Part 2):

Removal and Installation
1. For additional information, refer to the procedures.
