Test D: DTC C1095 - ABS HYDRAULIC PUMP MOTOR CIRCUIT FAILURE

PINPOINT TEST D: DTC C1095 - ABS HYDRAULIC PUMP MOTOR CIRCUIT FAILURE

Normal Operation
The operating voltage required to run the hydraulic pump motor is in a range between 10 and 17 volts.

Voltage is supplied by circuit 534 (YE/LG) (hot at all times). Ground is provided through circuit 530 (LG/YE).

Possible Causes
^ Fuse
^ Circuit 530 (LG/YE) open
^ Circuit 534 (YE/LG) open
^ Hydraulic pump motor
^ ABS module

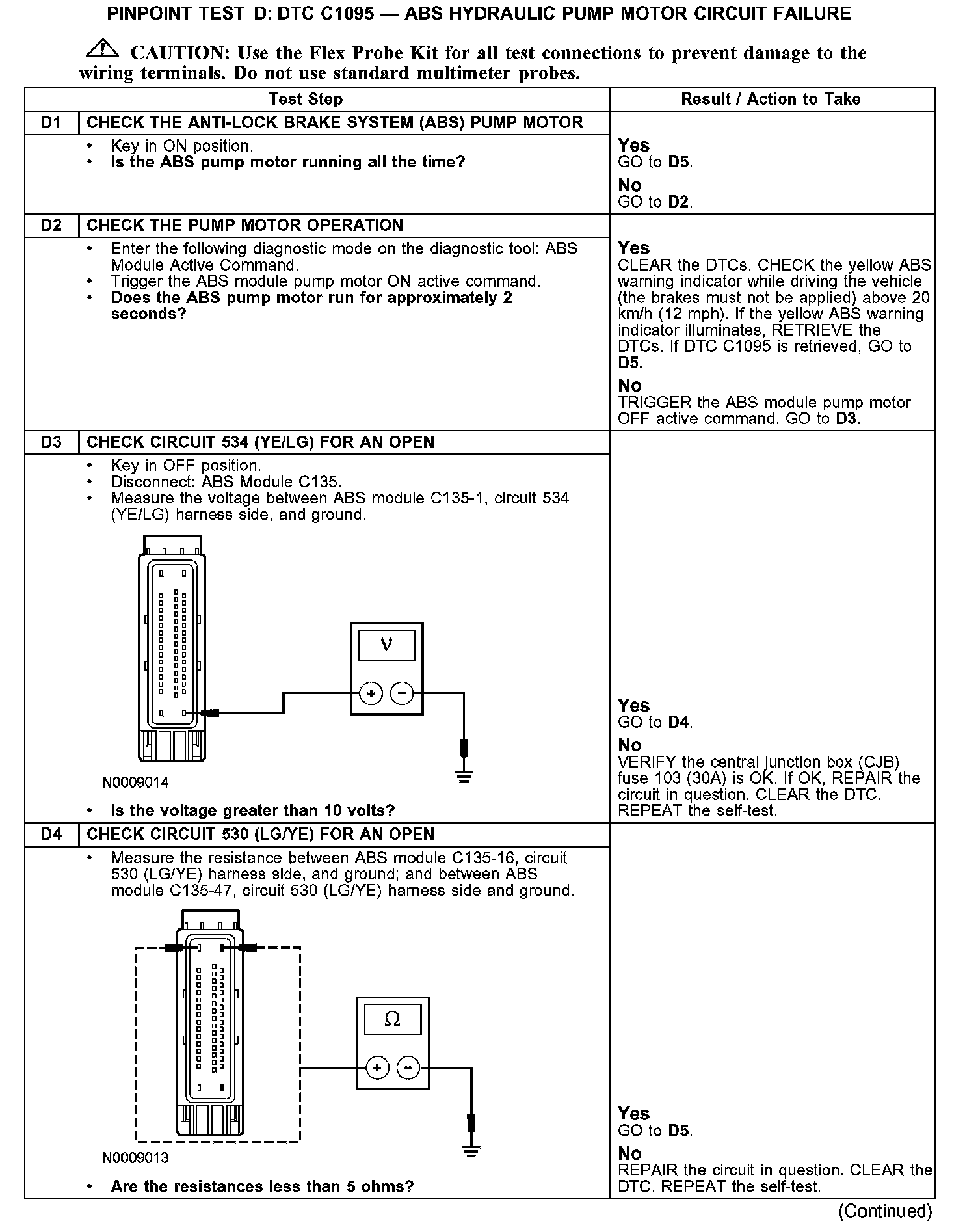

D1-D4:

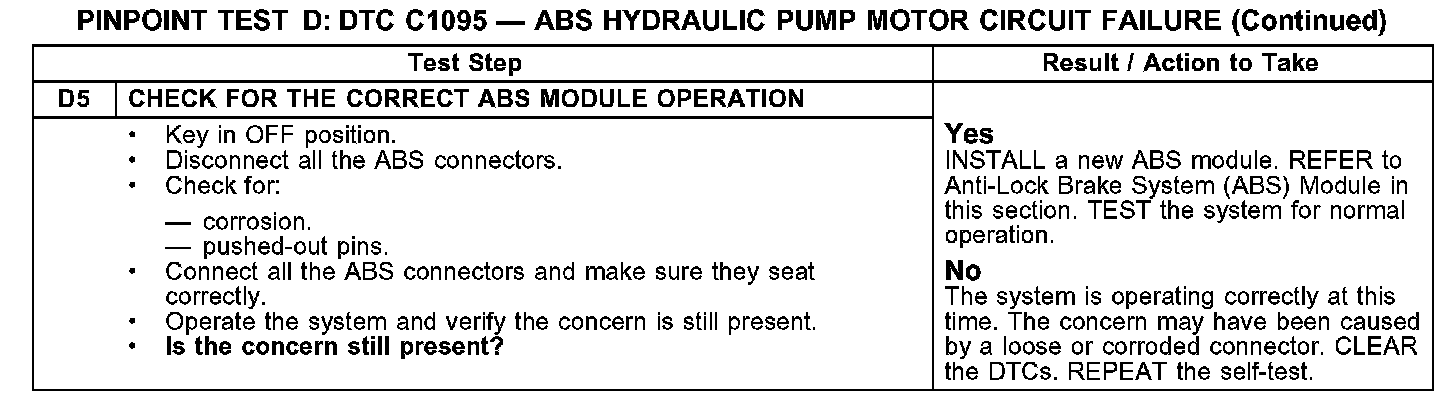

D5:
