Operation CHARM
: Car repair manuals for everyone.
Home
>>
Lincoln
>>
2006
>>
Navigator 2WD V8-5.4L VIN 5
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>

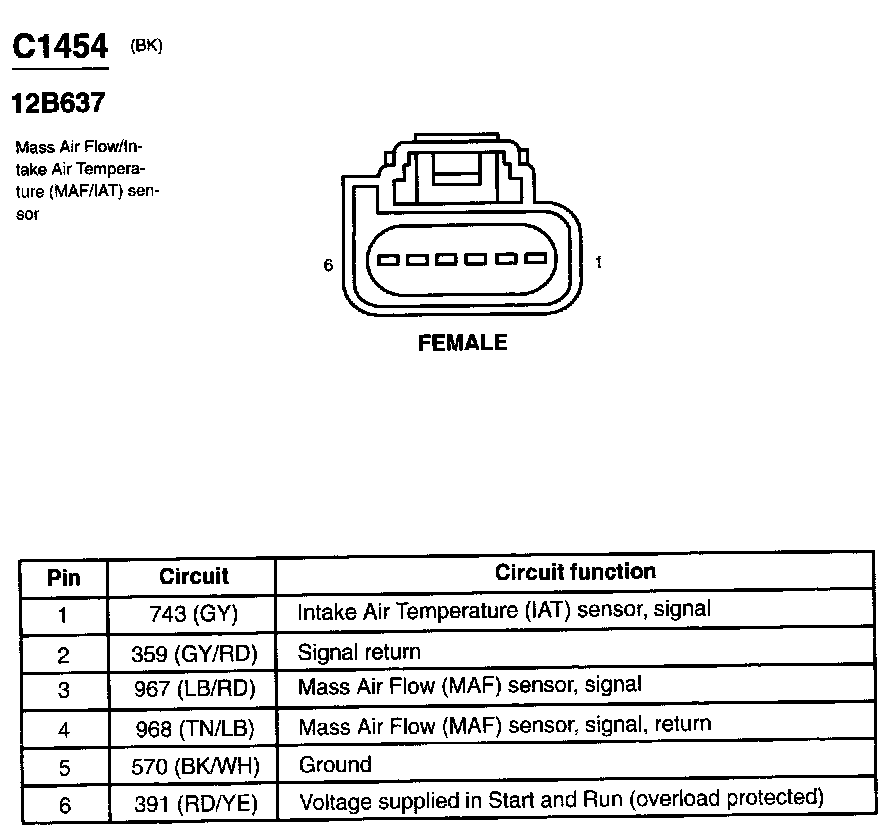

Air Flow Meter/Sensor
Air Flow Meter/Sensor
C1454:
