Operation CHARM
: Car repair manuals for everyone.
Home
>>
Lincoln
>>
2006
>>
Navigator 2WD V8-5.4L VIN 5
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Cabin Temperature Sensor / Switch
>>
In-Vehicle Temperature/Humidity Sensor
In-Vehicle Temperature/Humidity Sensor

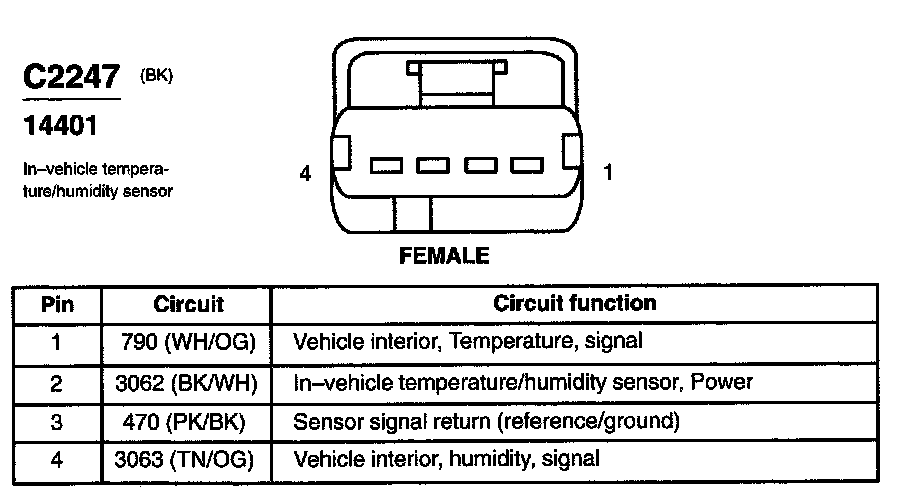

C2247:
