Operation CHARM
: Car repair manuals for everyone.
Home
>>
Lincoln
>>
2006
>>
Navigator 2WD V8-5.4L VIN 5
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Control Assembly, HVAC
>>
Auxiliary Function Selector Switch Assembly, Front
Auxiliary Function Selector Switch Assembly, Front

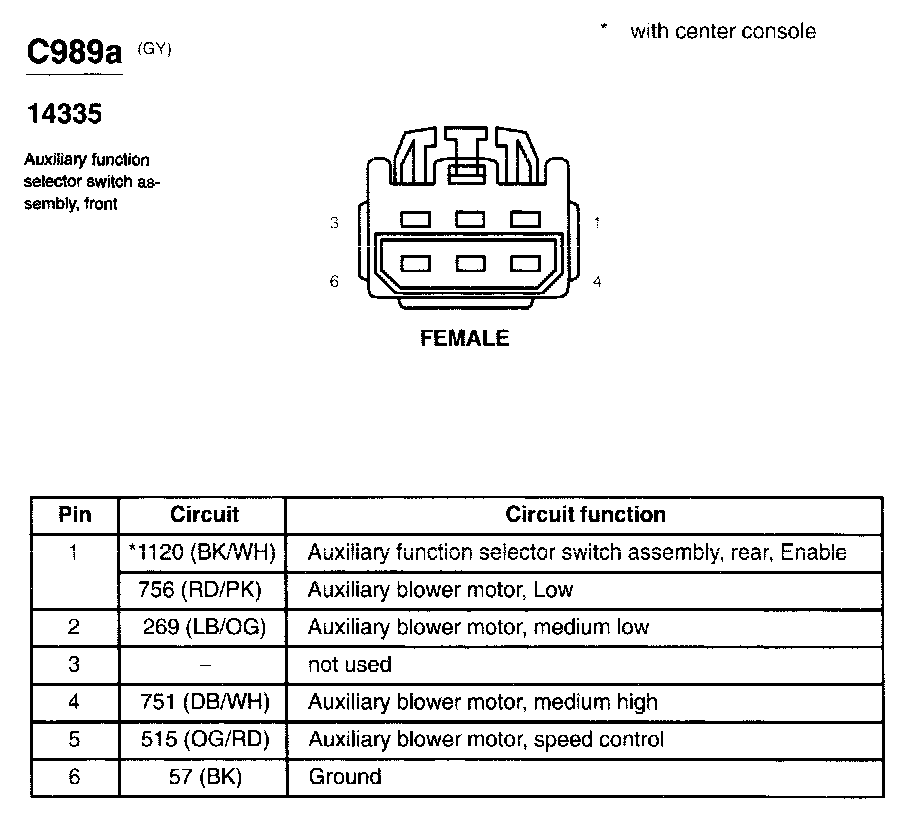

C989a:

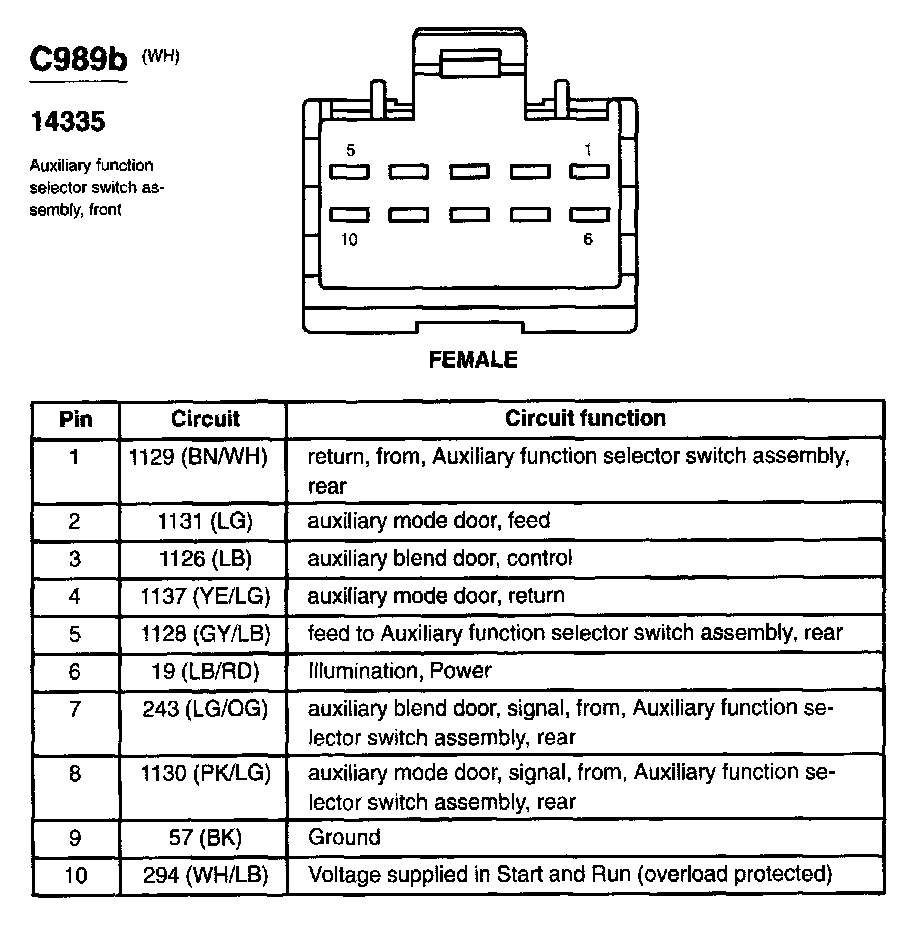

C989b:
