Navigator 2WD V8-5.4L VIN 5
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Parking Assist Control Module
Parking Assist Control Module

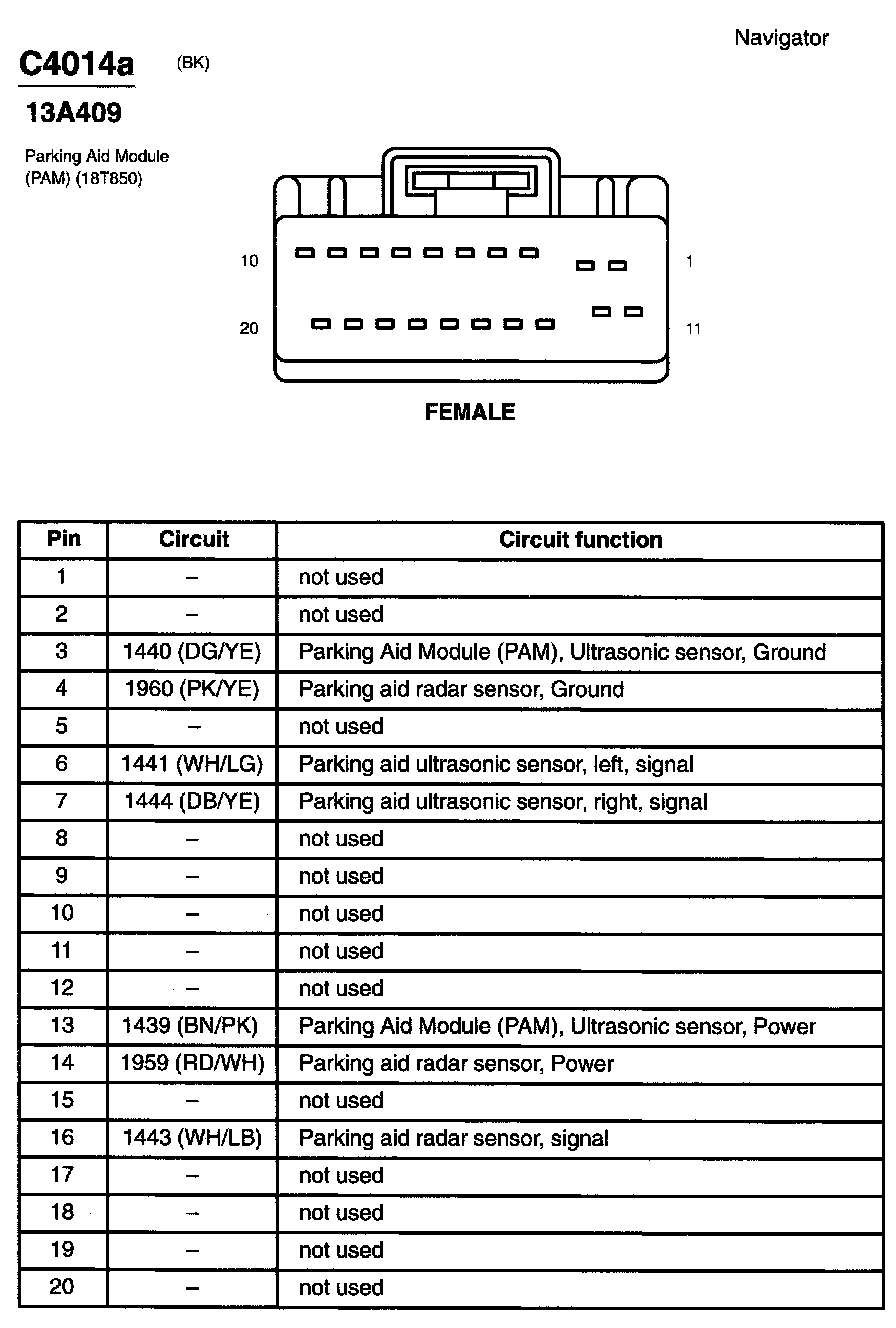

C4014a:

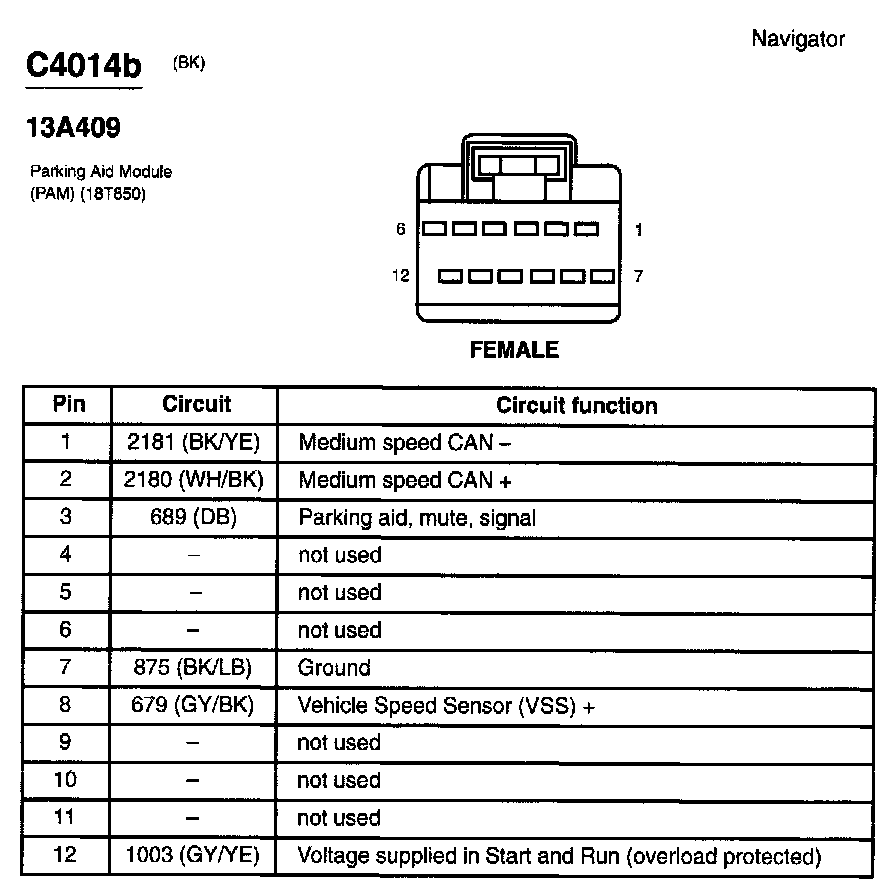

C4014b:

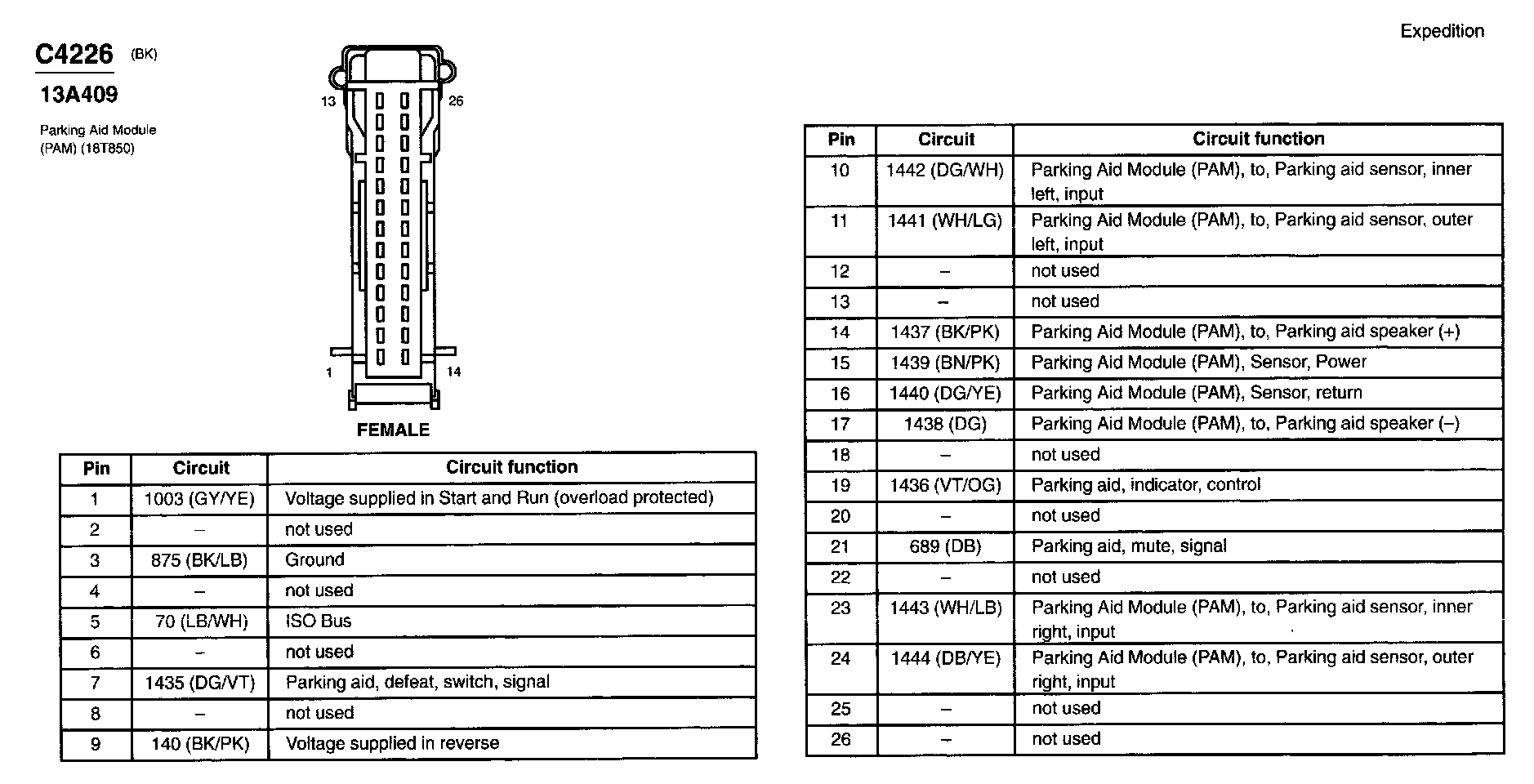

C4226:
