Home >> Lincoln >> 2006 >> Navigator 2WD V8-5.4L VIN 5 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Seat Motor Position Sensor >> Driver Memory Seat Recliner Sensor

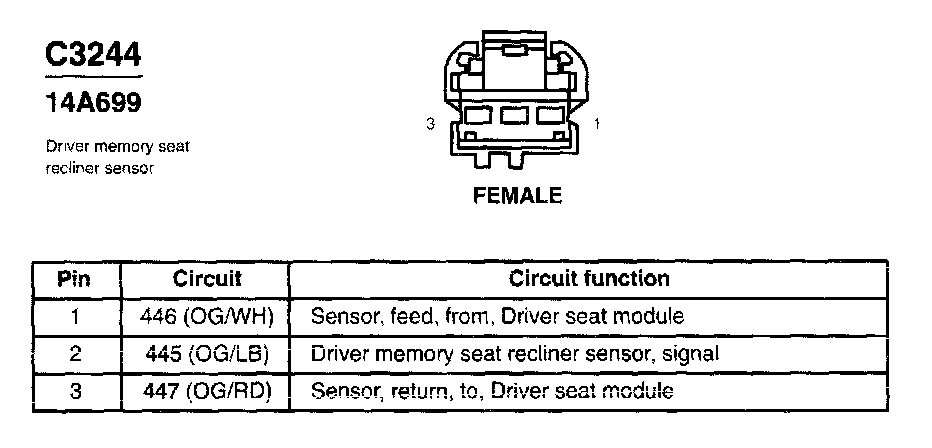

Driver Memory Seat Recliner Sensor

C3244:
