Home >> Lincoln >> 2006 >> Navigator 2WD V8-5.4L VIN 5 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Seat Motor Position Sensor >> Height Sensor, Right Front

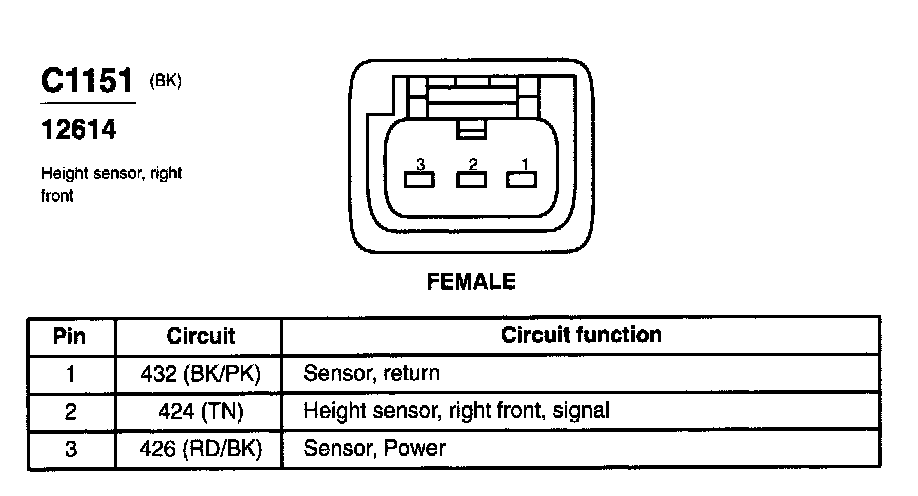

Height Sensor, Right Front

C1151:
