Home >> Lincoln >> 2006 >> Navigator 2WD V8-5.4L VIN 5 >> Repair and Diagnosis >> Diagrams >> Connector Views >> Trunk / Liftgate >> Trunk / Liftgate Motor >> Liftgate Drive Motor Assembly, Left

Liftgate Drive Motor Assembly, Left

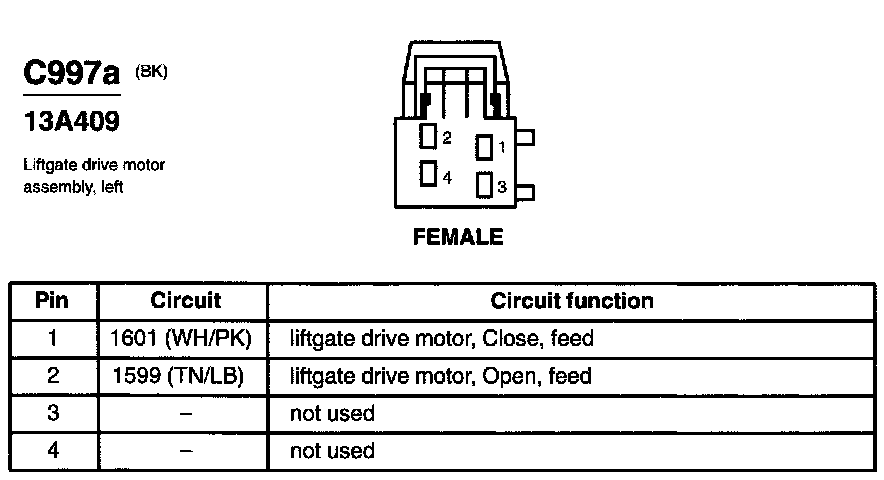

C997a:

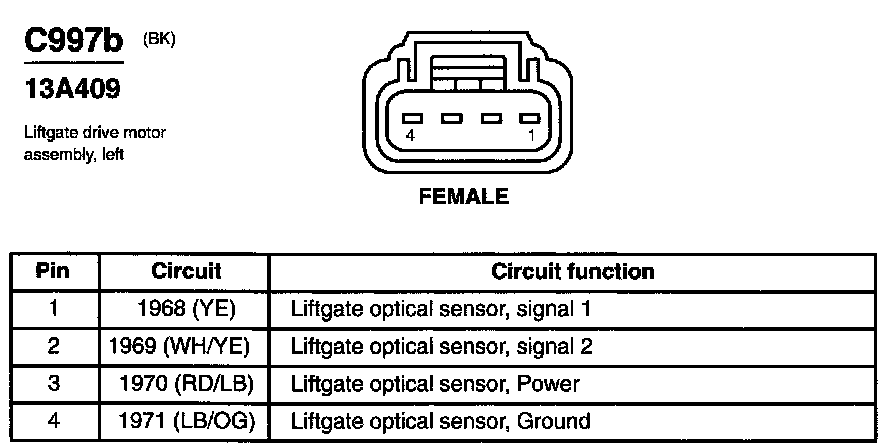

C997b:
