Symptom Related Diagnostic Procedures

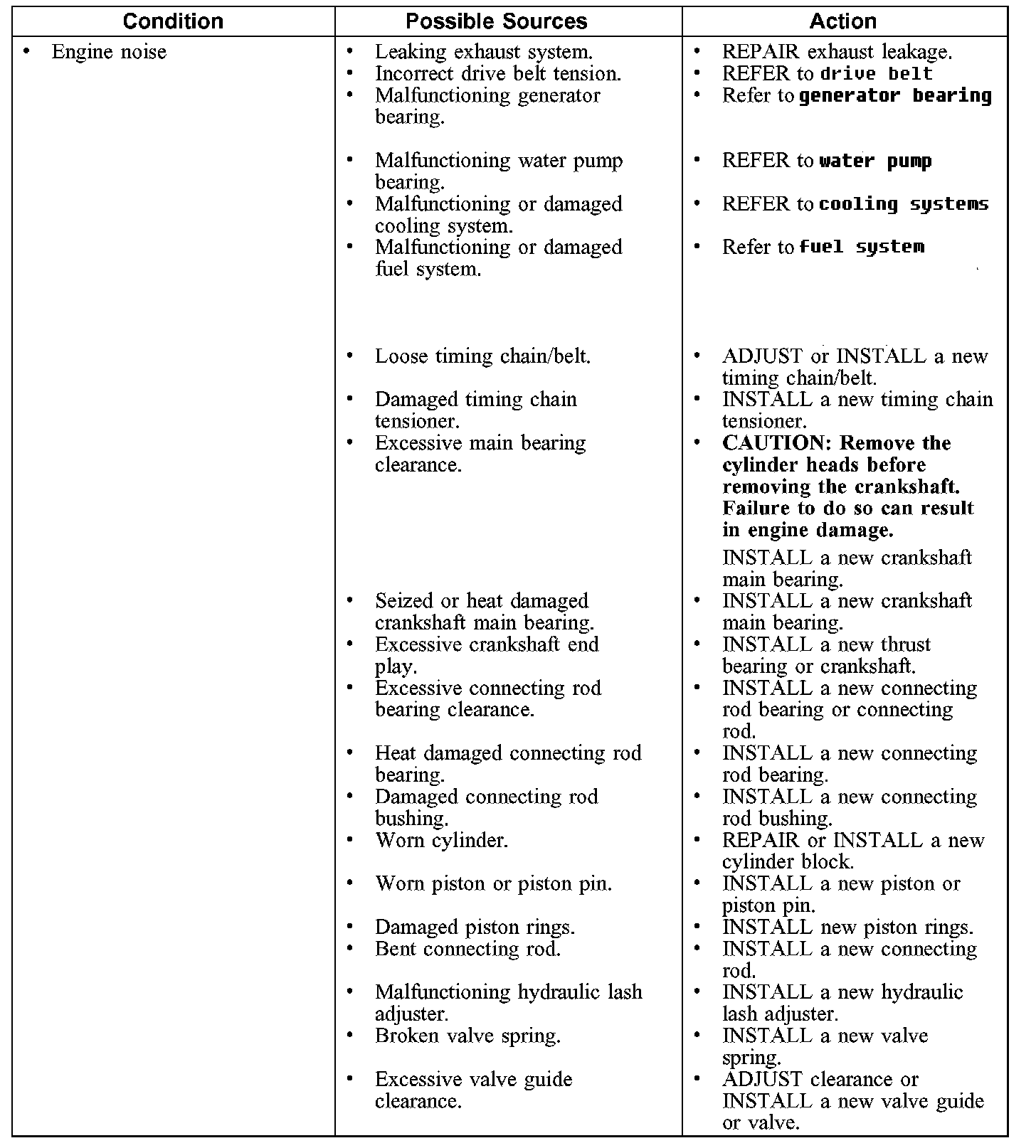

Symptom Chart:

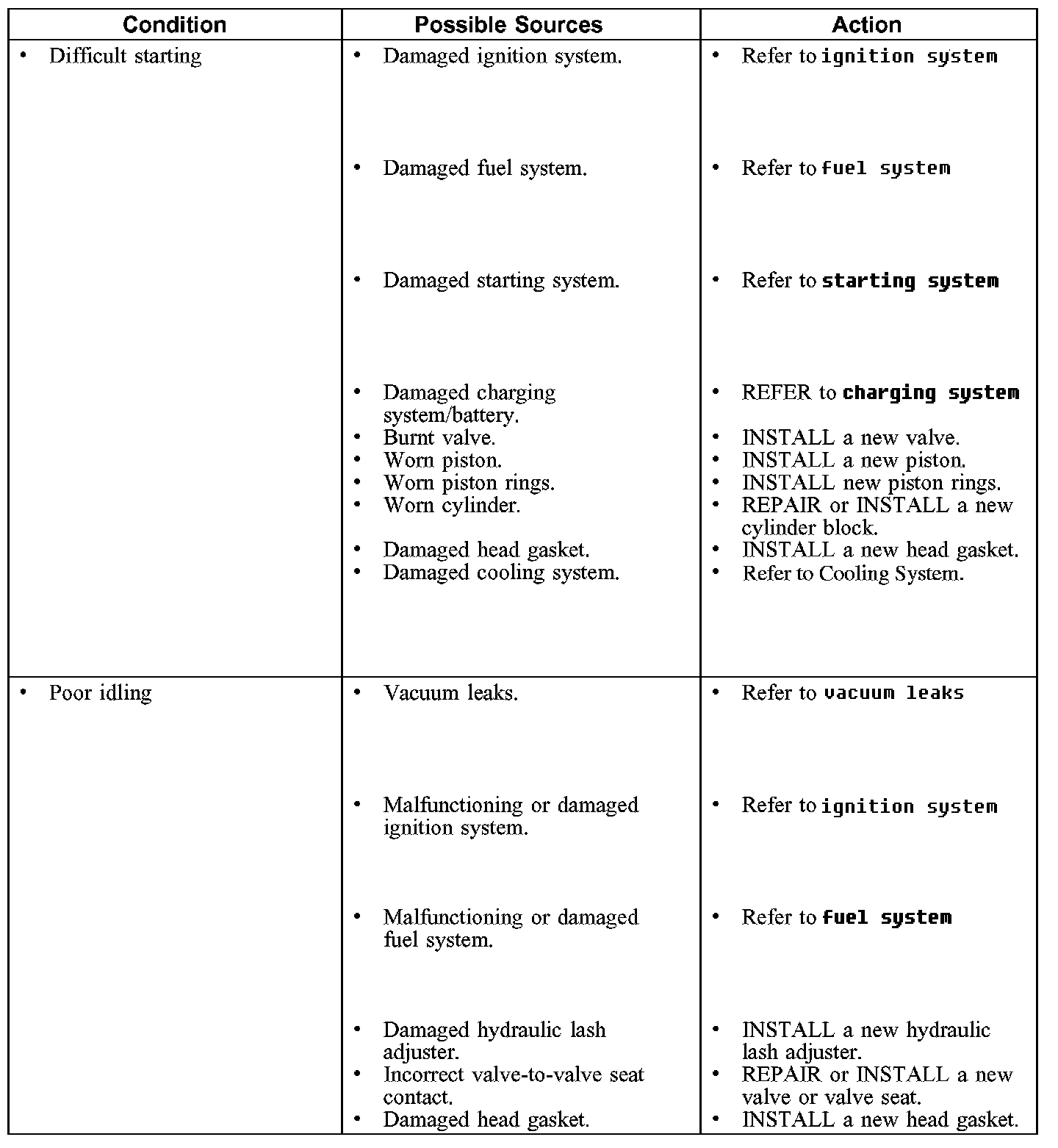

Symptom Chart (Continued):

Symptom Chart (Continued):

Symptom Chart (Continued):
