Timing Components: Specifications

Using a new crankshaft pulley bolt, install the bolt and washer and tighten the bolt in 4 stages.
First pass 90 Nm (66 ft. lbs.)
Second pass loosen 360°
Third pass 50 Nm (37 ft. lbs.)
Final pass tighten 90°

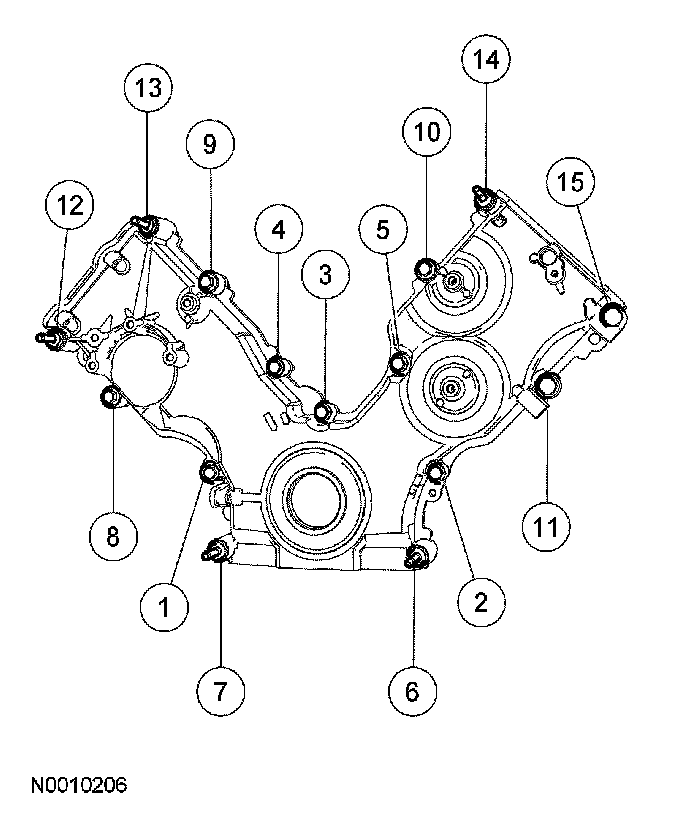

Timing cover front bolts & nuts
Fasteners 1 through 15 25 Nm (18 ft. lbs.)
Fasteners 6 & 7 48 Nm (35 ft. lbs.)





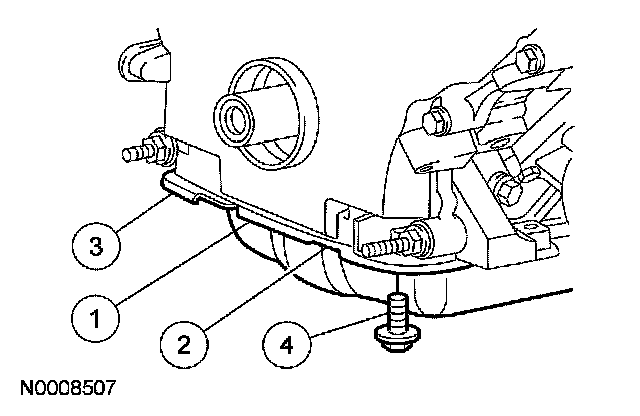

Timing cover lower bolts
First pass 20 Nm (15 ft. lbs.)
Final pass 60°
