Blower Motor Speed Control

BLOWER MOTOR SPEED CONTROL

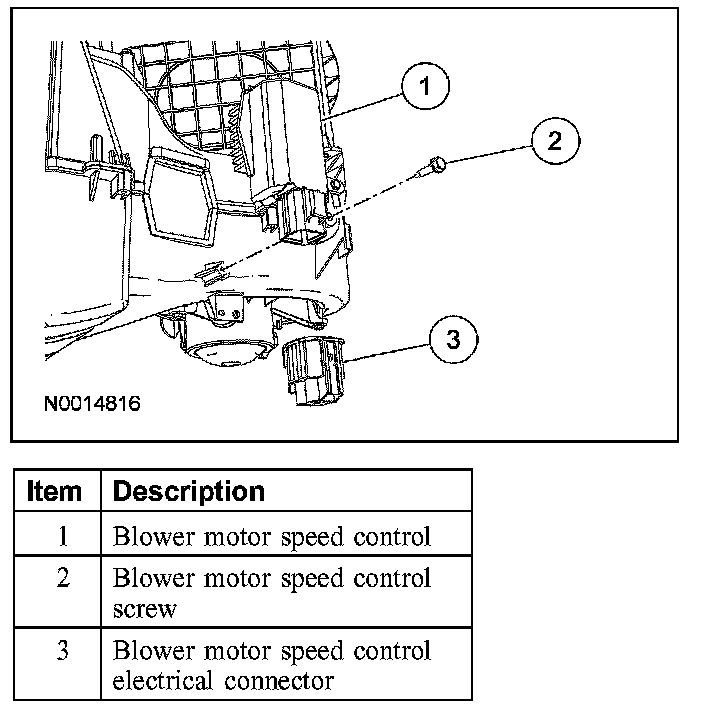

Removal and Installation
1. Remove the RH lower instrument panel insulator.
2. Disconnect the blower motor speed control electrical connector.
3. Remove the blower motor speed control screw.
4. Remove the blower motor speed control.
5. To install, reverse the removal procedure.
