Operation CHARM: Car repair manuals for everyone.
Home >> Lincoln >> 2006 >> Navigator 2WD V8-5.4L VIN 5 >> Repair and Diagnosis >> Heating and Air Conditioning >> Control Assembly >> Diagrams >> Connector Views >> Function Selector Switch Assembly, Front

Function Selector Switch Assembly, Front

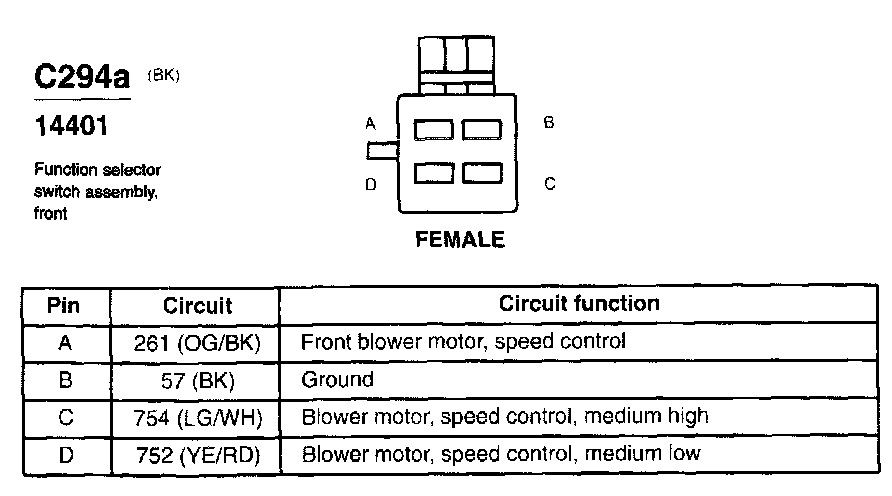

C294a:

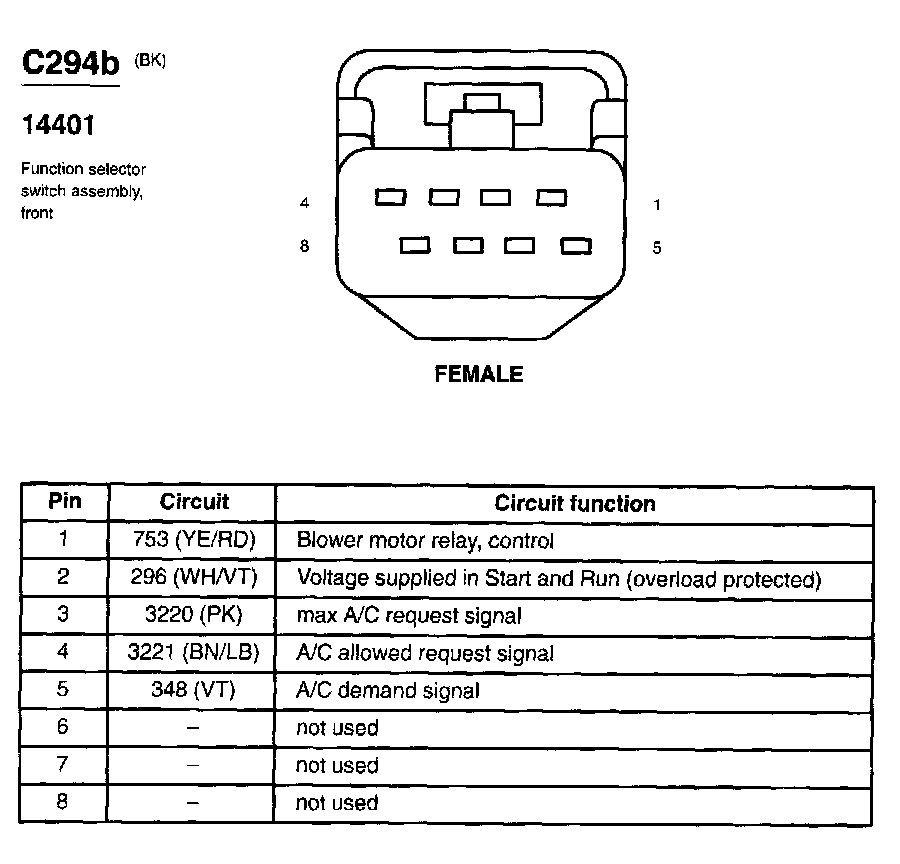

C294b:



C294c:
