Function Selector Switch

FUNCTION SELECTOR SWITCH







Removal and Installation
1. Remove the climate control assembly.

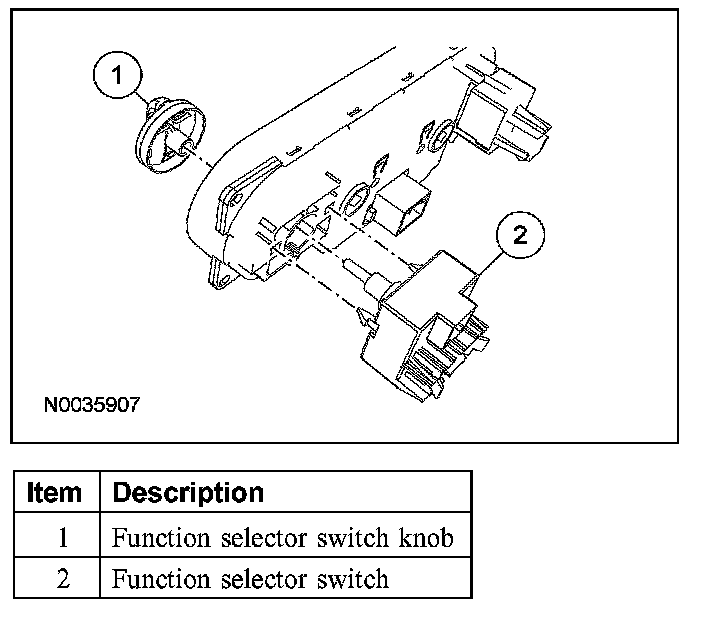

2. Pull and remove the function selector switch knob.
3. Release the 2 clips and remove the function selector switch.
4. To install, reverse the removal procedure.
