Evaporator Temperature Sensor / Switch: Service and Repair

AIR CONDITIONING (A/C) EVAPORATOR DISCHARGE AIR TEMPERATURE SENSOR







Removal and Installation

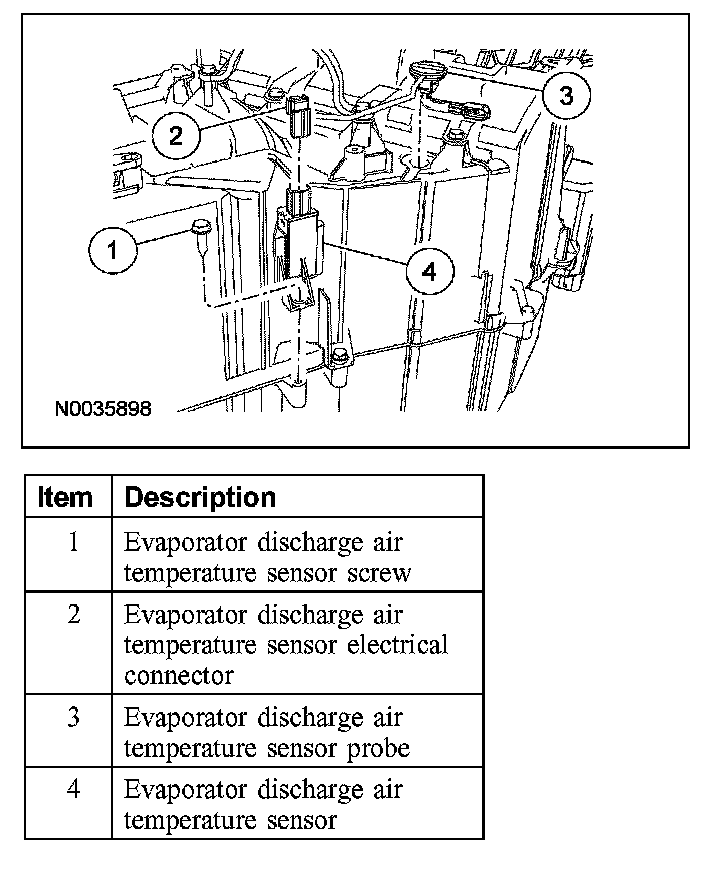

1. Lower the glove compartment.
2. Remove the evaporator discharge air temperature sensor screw.
3. Disconnect the evaporator discharge air temperature sensor electrical connector.







4. Carefully pry the evaporator discharge air temperature sensor probe out of the heater core and evaporator core housing.
5. Remove the evaporator discharge air temperature sensor.
6. To install, reverse the removal procedure.
