Auxiliary Heater Core

AUXILIARY HEATER CORE

Removal and Installation
1. Remove the auxiliary climate control housing.

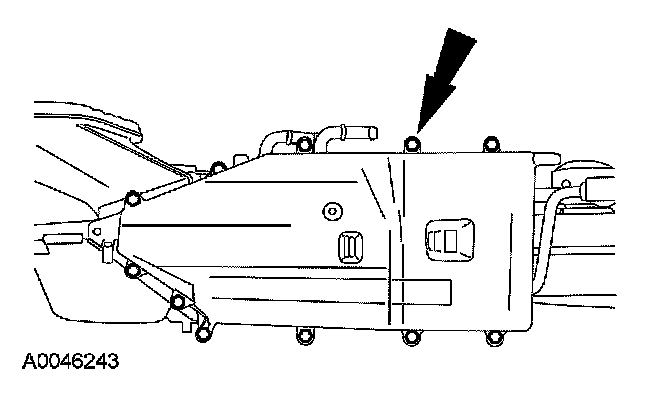

2. Remove the screws and the evaporator/heater core access cover.

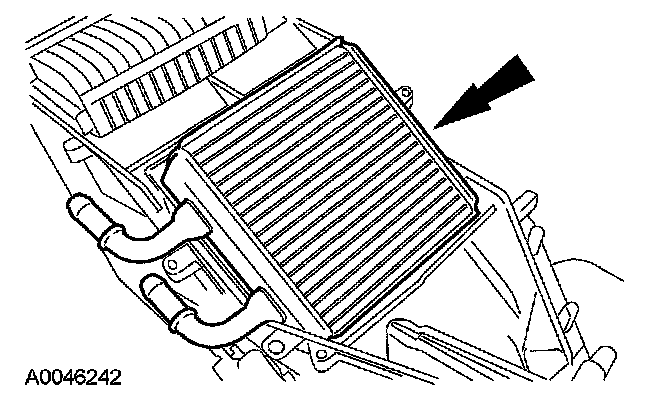

3. Remove the heater core.
4. To install, reverse the removal procedure.
