Backup Lamp: Service and Repair

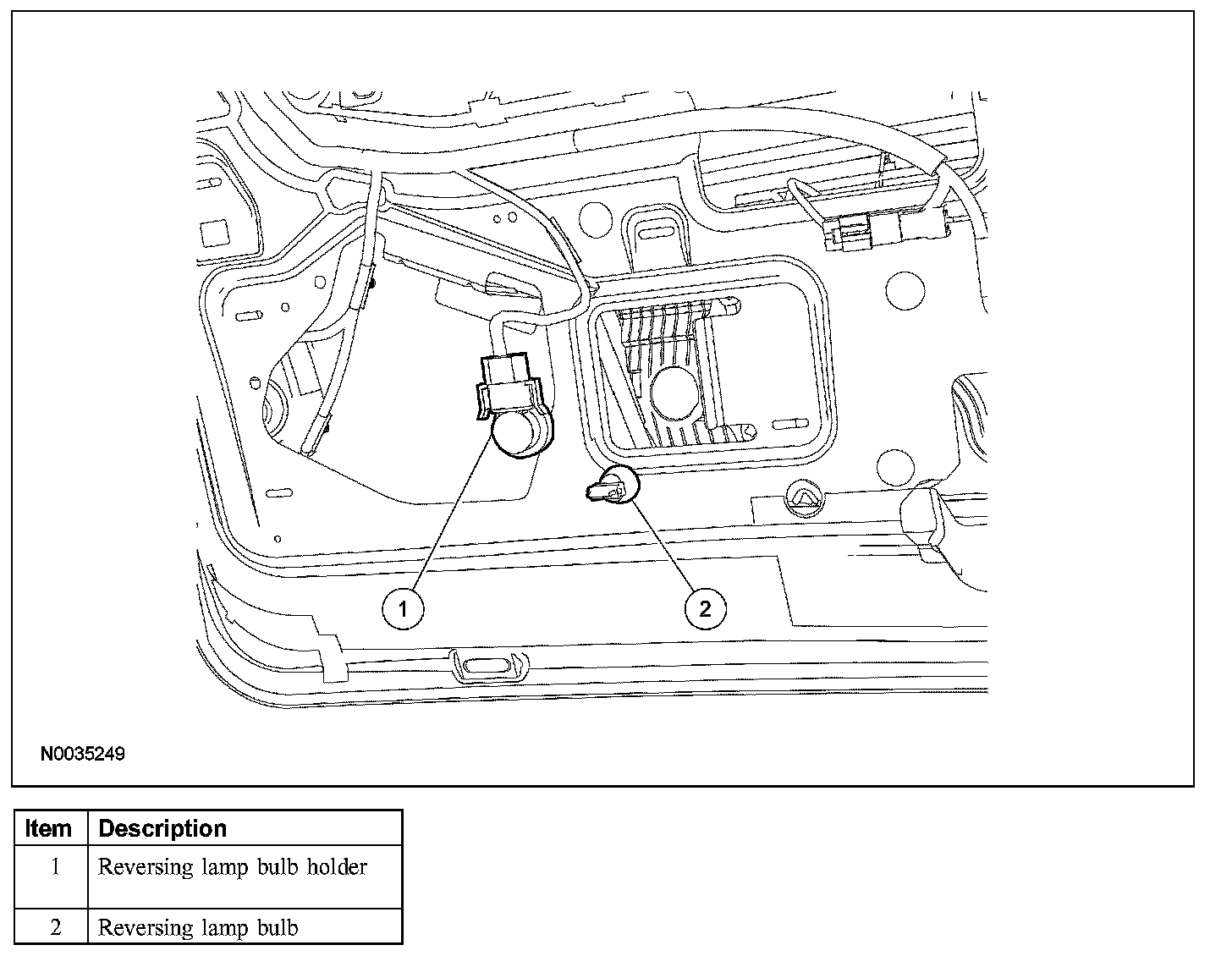

REVERSING LAMP







Removal and Installation
1. Remove the liftgate trim panel.
- Remove the water shield.

2. Rotate the bulb holder counterclockwise and remove the bulb holder.
- Remove the reversing lamp bulb.

3. To install, reverse the removal procedure.
