Dimmer Switch: Service and Repair

INSTRUMENT PANEL DIMMER SWITCH







Removal and Installation

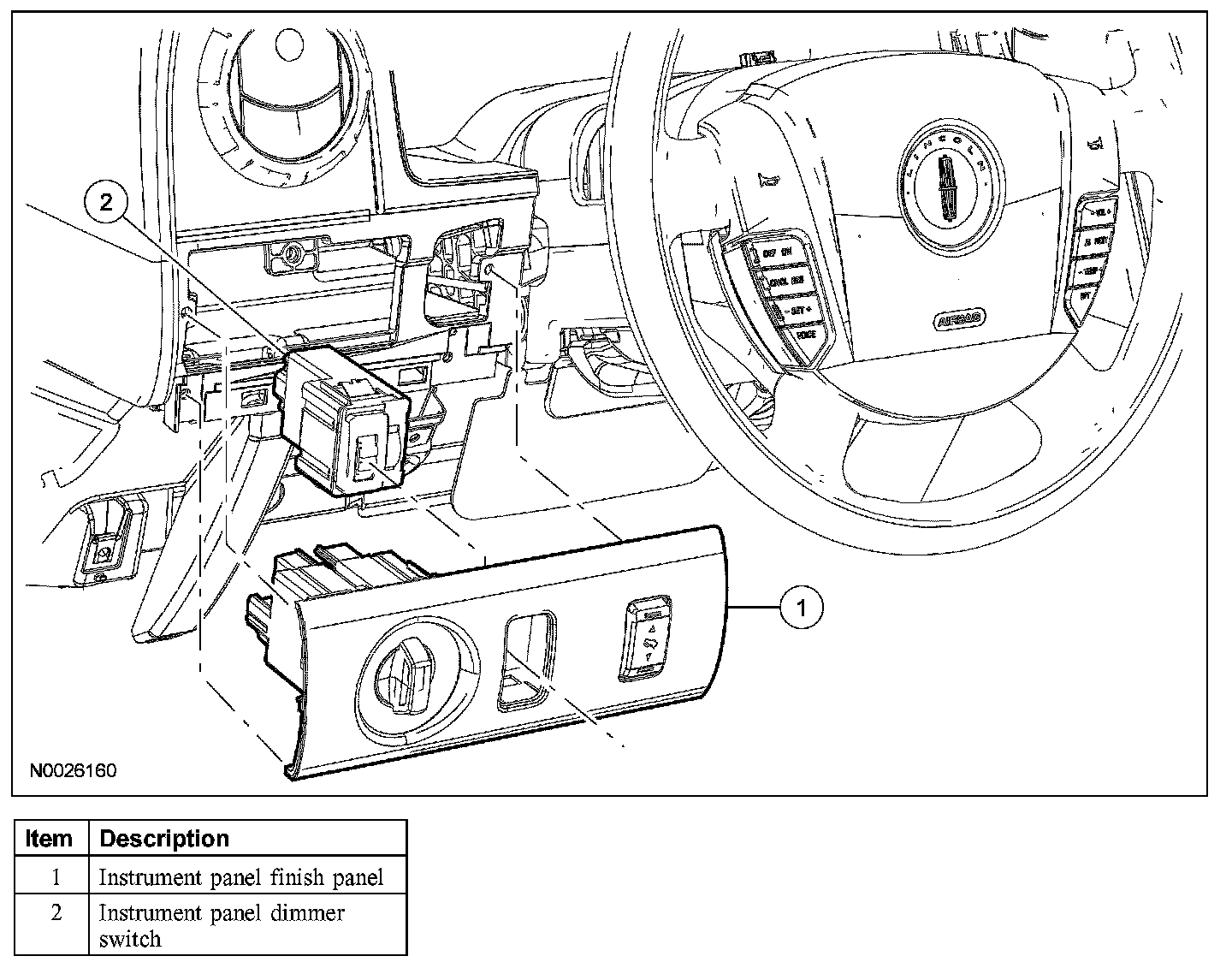

1. Remove the instrument panel finish panel.
- Disconnect the electrical connectors.

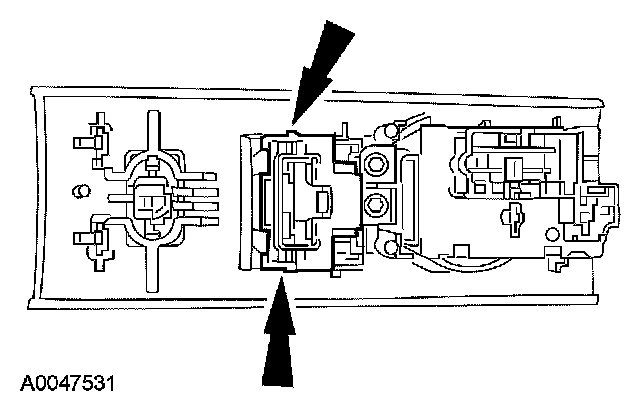

2. Press the tabs and remove the instrument panel dimmer switch.
3. To install, reverse the removal procedure.
