Test C: Message Center Displays Tire Pressure Sensor/Monitor Fault

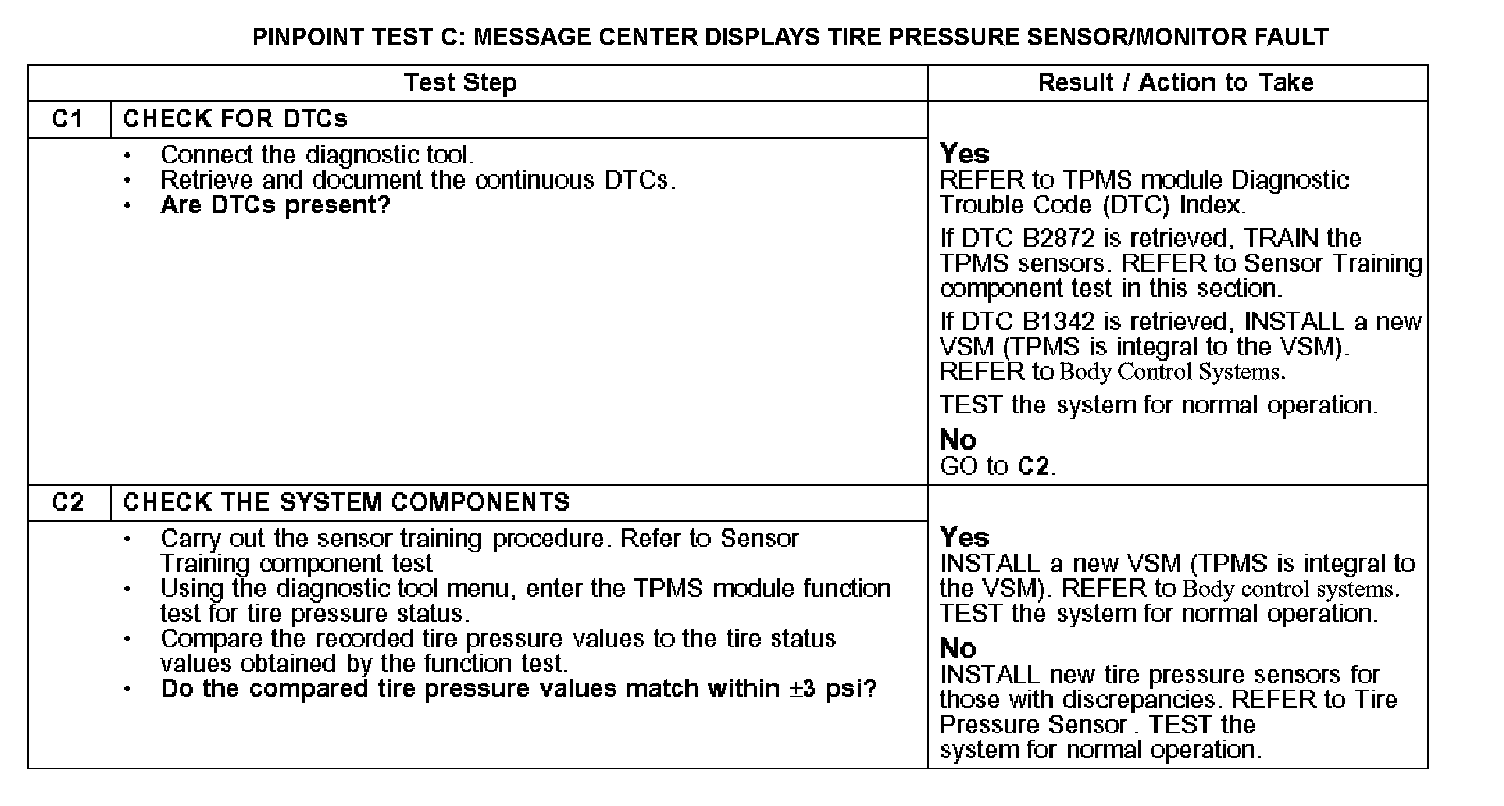

Pinpoint Test C: Message Center Displays Tire Pressure Sensor/Monitor FaultNormal Operation
If there is a fault in the TPM's system, such as a damaged sensor or module, DTC's are set in the TPM's module, the TPM's indicator will illuminate and the message center (if equipped), will display the appropriate message.
Possible Causes
^ Low tire pressure(s)
^ TPM's sensor(s)
^ VSM module
