Home >> Lincoln >> 2006 >> Navigator 2WD V8-5.4L VIN 5 >> Repair and Diagnosis >> Power and Ground Distribution >> Relays and Modules - Power and Ground Distribution >> Relay Box >> Locations >> Auxiliary Relay Box 1

Auxiliary Relay Box 1

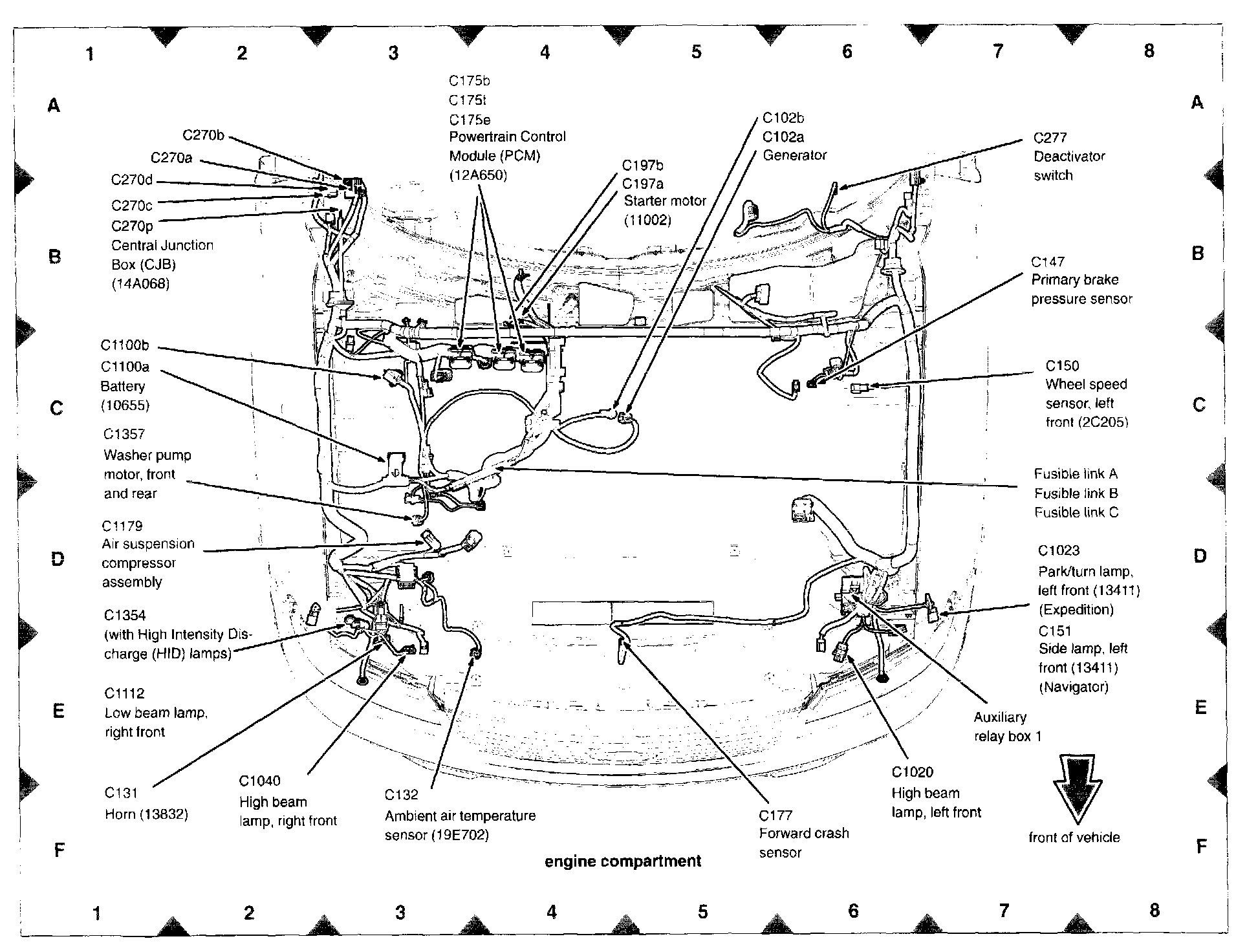

View 151-1 (Engine Compartment):
